Wall Panel Manufacturers: The Best For The Fastest Wall

ZMARTBUILD Wall Panel, the future of AAC Blocks, is bigger in size and allows you to build faster. It has more advantages such as better performance, cost & time saving, project efficiency, and carpet area. ZMARTBUILD Wall Panels (also known as Q-CON Wall Panel in Thailand) are lightweight, steel-reinforced, with groove & tongue panels that can be easily installed by your regular on-site installers. They are suitable to be used as both external and internal walls.

Before After

ZMARTBUILD Wall Panel is a Super Speed wall panel. It is 4 times faster than AAC Blocks and can be easily installed by groove and tongue panels. General installers can install ZMARTBUILD Wall Panel at a rate faster than 10 sqm/man/day. This advantage can help you finish the project earlier and help save more on the total project cost.Top speed installation, strong & durable materials, higher rate of fire resistance, noise reduction, and green value are the highlights of our wall panel.

Zmartbuild Wall Panel
Hotspots Background

A steel mesh, coated with an anti-corrosion protection layer for maximum strength and durability.

Tongue & Groove profile that help your team perform easier and faster wall installation to any project.

Composition : Portland Cement Type1, Purified Sand, Gypsum+ Lime, Aluminum and Water

Strength

from inside

Whether you’re a developer, an architect, a designer, a builder or a wall installer, ZMARTBUILD Wall Panel delivers exceptional advantages in terms of performance, cost & time saving and project efficiency.

Wire Mesh Specification

Double high strength wire mesh ST50 (Yield 500 Mpa). Can resist the bending moment (Design load 150 kg/sq.m).

Size & Dimension

Width : 600 mm
Length : 2,400 – 4,000 mm
Thickness : 75, 100, 125, 150, 200, 250 mm

Free Download & Video

Catalog and Installation Guide

Benefits

Working at top Speed and Performance.

Super Speed

Our wall panels are 4 times faster than AAC Blocks and can be easily installed by groove and tongue panels. General installers can install the ZMARTBUILD Wall Panel at a rate faster than 10 sqm/man/day.

Strong & Durable

Reinforced with preventive corrosion steel, it is durable and wind-resistant. With no knocking sound, this wall panel can hang upto 50 kg per point by expansion fixing.

Higher Fire Resistance

Made with non-combustible material, this AAC Panel can provide excellent fire resistance for upto 4 hours. It protects you better in case of a fire-risk.

Save Total Budget

It offers reduced working time and transportation cost as it is lightweight (70 kg/m2). Furthermore, it has better heat insulation than AAC panels (K=0.115 w/mk.) to save energyl.

Noise Reduction

It reduces sound transmission between rooms and noise penetration from external sources. It is perfect for hotel rooms, residential rooms, and also conference rooms.

Green Value

ZMARTBUILD Wall Panels are manufactured in a range of sizes to suit your needs, resulting in less wastage. Moreover, it is made from completely natural materials which do not cause pollution.

Wall Facts..

It's time to refresh your wall panel construction technique to get the job done faster and better than ever. This graph can show how we can help you in at least 5 dimensions. This ZMARTBUILD Wall Panel solution also enables you to scale up the number of building projects per year by speeding up the project timeline without losing quality. Come, let’s modernize your project together!

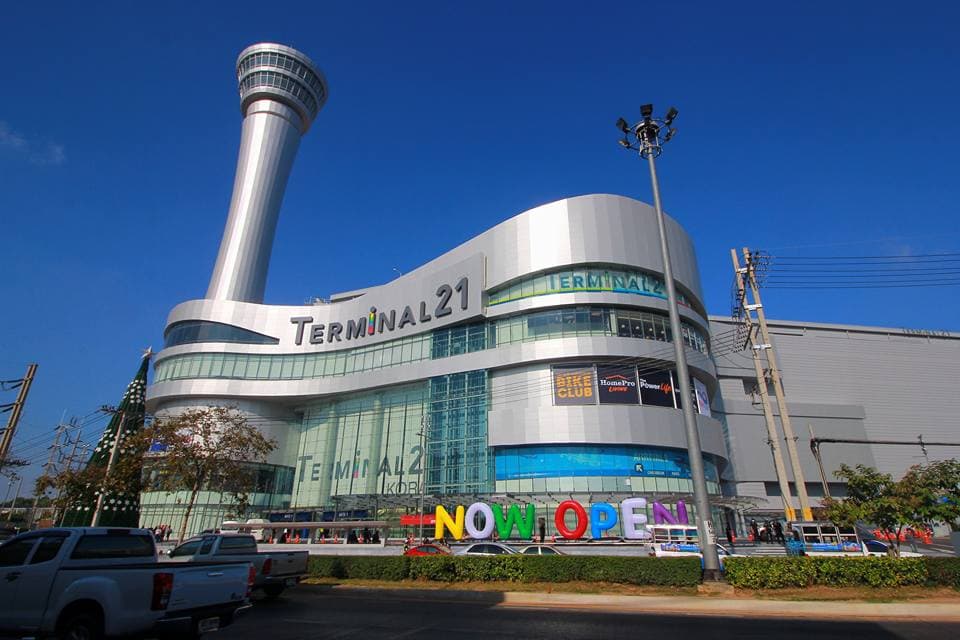

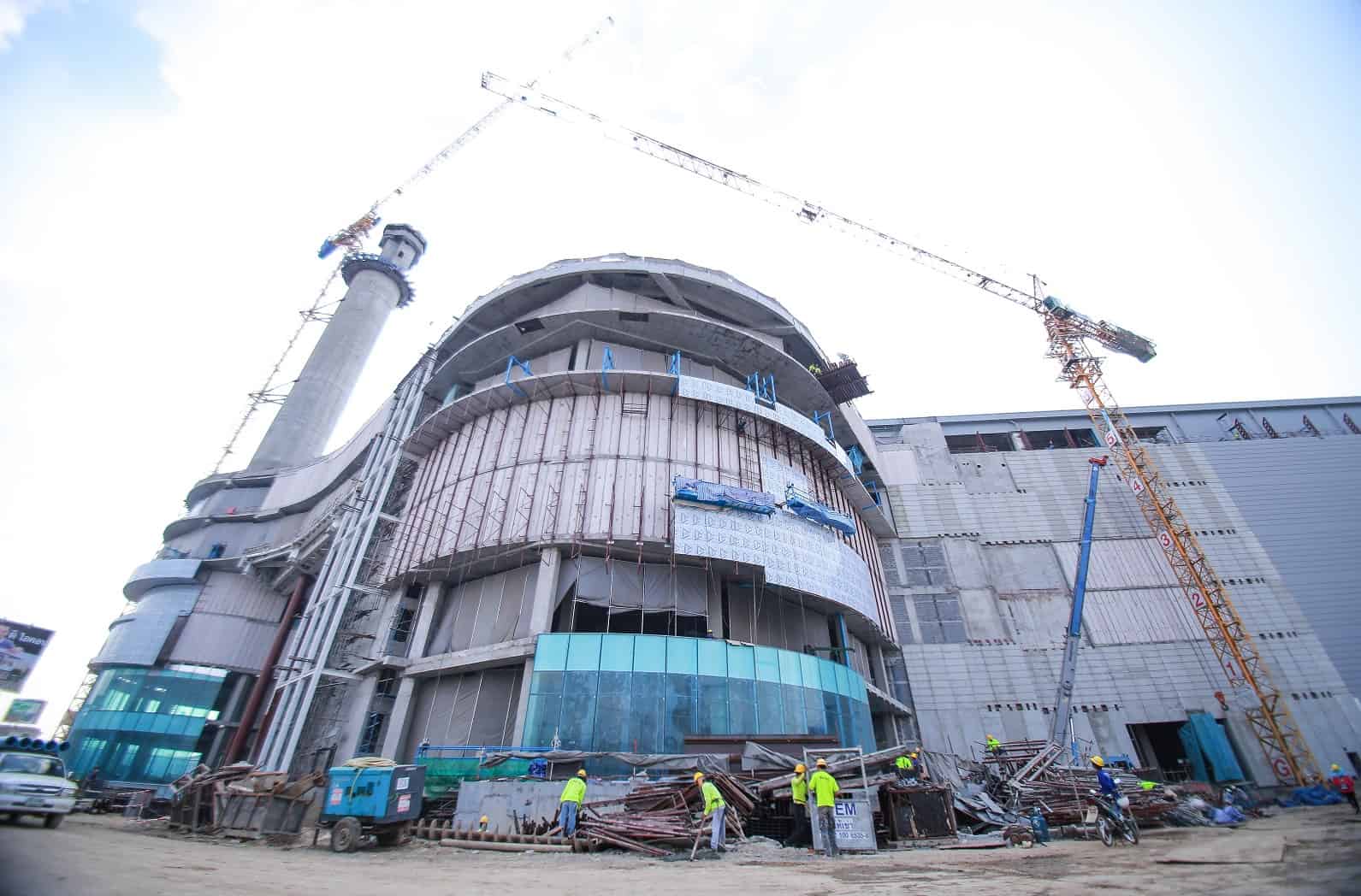

Reference

Works best for high rise buildings and any building that requires top speed.

Specification & Standard

Product PropertyWall Panel Standard
Dry Density550-650 Kg/m3 IS – 2185 (Part III)
Working Density600-700 Kg/m3
Wind Load50-180 Kg/m2
Compressive Strength>4 N/mm2IS2185(partIII)
Water Absorption<33%by mass
Fire RatingUp to 4 hr100mm. thickness wall panel / BS476 Part 20 and 22 :1987
Thermal Conductivity (k)0.115 W/mk
Sound Insulation (STC)38 - 43 dB
Reinforce steel tensile strength > 500 N/mm2
Weight70 kg/m2100 mm thickness wall panel
