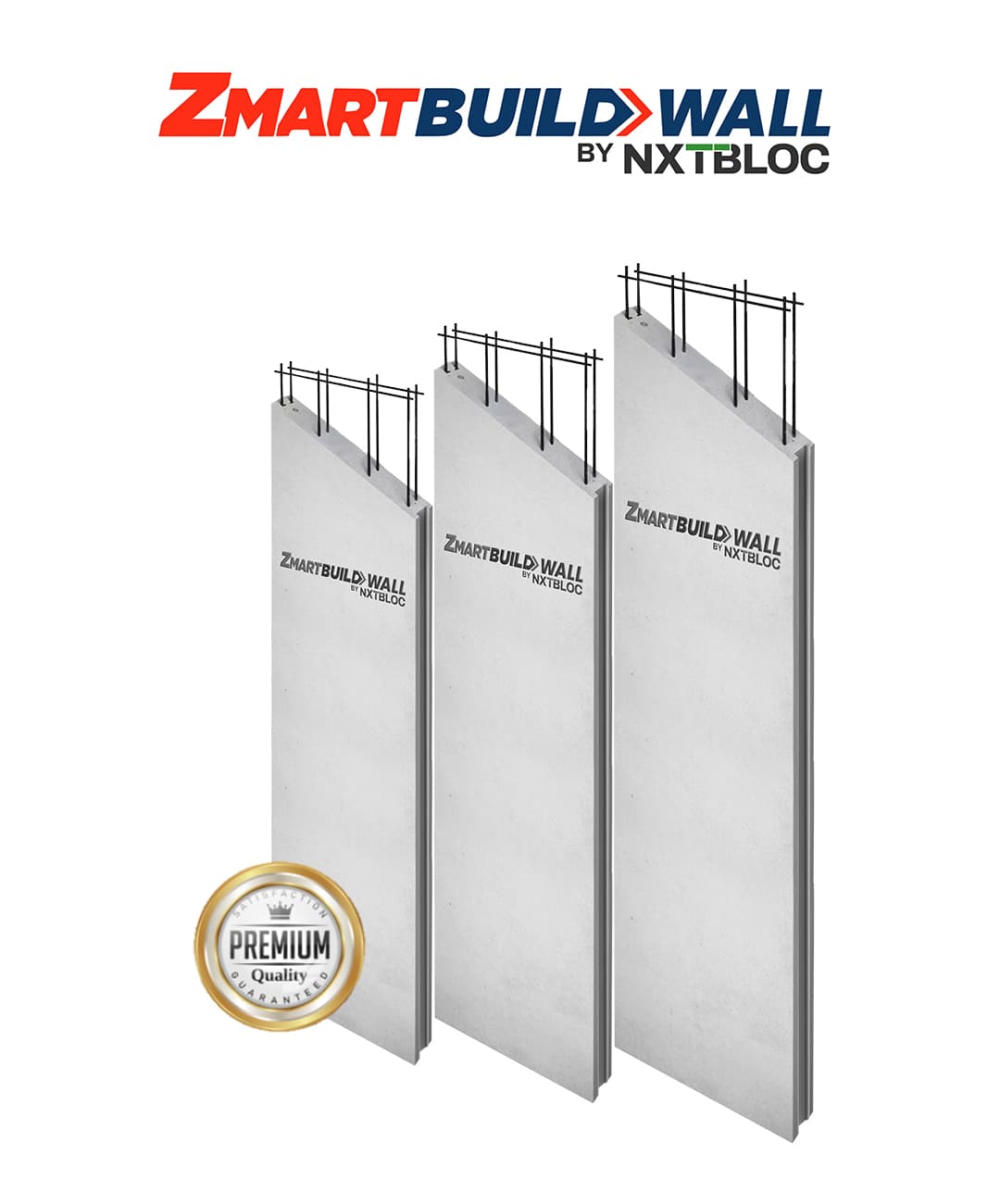

Material: AAC Wall Panel, Ready Wall Panel, Wall Panel

ZMARTBUILD WALL by NXTBLOC
(Wire Mesh Reinforced)

Readymade concrete wall

Dimension

1.Thickness 75 mm x Width 600 mm x Length 3,000 mm

2.Thickness 100 mm x Width 600 mm x Length 3,000 mm

Wire Mesh Specification Double high strength wire mesh ST50 (Yield 500 Mpa). Can resist the bending moment (Design load 150 kg/sq.m).

Color  Uncolored (Plain)

Texture  Smooth

Price (INR)

Price may be vary depends on different location

Material: AAC Wall Panel, Ready Wall Panel, Wall Panel

ZMARTBUILD WALL by NXTBLOC
(Wire Mesh Reinforced)

Dimension
1. Thickness 75 mm x Width 600 mm x Length 3,000 mm
2. Thickness 100 mm x Width 600 mm x Length 3,000 mm

Wire Mesh Specification Double high strength wire mesh ST50 (Yield 500 Mpa). Can resist the bending moment (Design load 150 kg/sq.m).

Color  Uncolored (Plain)

Texture  Smooth

Price (INR)

Price may be vary depends on different location

Readymade concrete wall

Why Use ZMARTBUILD Wall ?

Apartment build with readymade concrete wall

Carpet Area

Maximize usable space with efficient design, optimizing the carpet area for enhanced functionality and comfort.

Employees installing readymade concrete wall

Speed of Construction

Swift and streamlined construction processes ensure timely project completion without compromising quality.

Employees discussion floor plans

Lower Finishing Cost

Cost-effective solutions for finishing, offering budget-friendly options without compromising on aesthetic appeal or durability.

Readymade concrete wall used for theatre

Sound Transmission

Advanced sound transmission control for a quieter and more comfortable living or working environment.

Readymade concrete walls installed in a under construction building

Knocking Sound

Innovative construction materials and techniques minimize knocking sounds, contributing to a peaceful and undisturbed atmosphere.

Thermal insulation after installing readymade concrete walls

Thermal Insulation

Optimal thermal insulation solutions for energy efficiency, maintaining comfortable indoor temperatures while reducing environmental impact.

Readymade concrete wall used for bedroom constructions

Smoothness & Wall Quality

Delivering impeccable smoothness and superior wall quality, ensuring a visually appealing and structurally sound end result.

Where ZMARTBUILD Wall Can be Used?

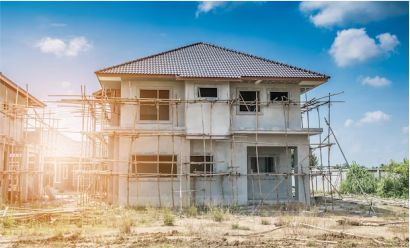

Readymade concrete wall used for constructions of independent house

Residential Construction

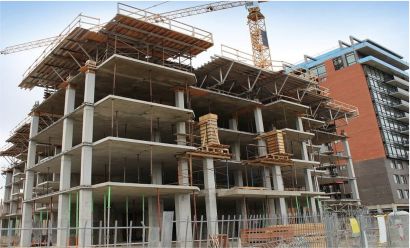

Under construction property ready for installation of concrete walls

Commercial Construction

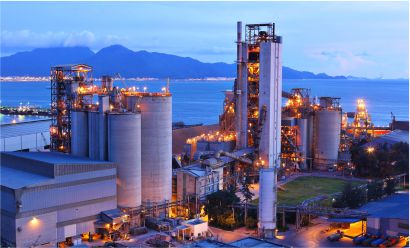

Readymade concrete wall used in Industries & Warehouses

Industrial & Warehouse

Readymade concrete wall used in institutional buildings

Institutional Buildings

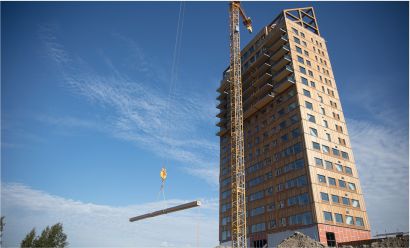

Readymade concrete wall used in construction of multi-stored building

Multi-Story Buildings

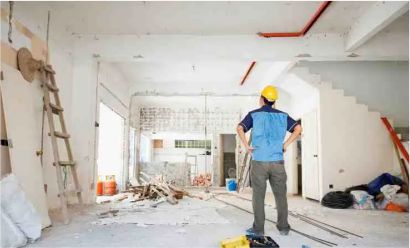

Readymade concrete wall used in renovation or remodelling of a house

Renovations and Remodelling

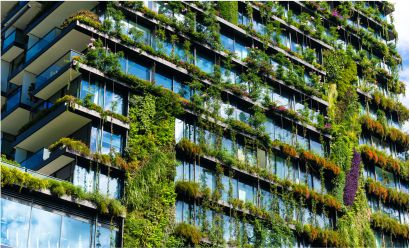

Readymade concrete wall used for a modern multi-stored building

Sustainable and Green Building

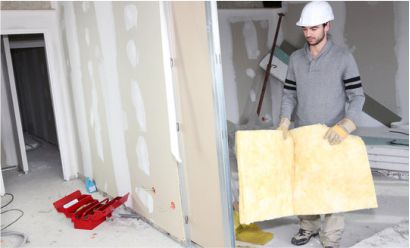

Readymade concrete wall used for sound proofing a house

Sound Proof Construction

Customer Stories

Latest Technology Wall Panel by ZMARTBUILD: Testimonials From our Loyal Customers

Innovative Products by ZMARTBUILD: Project CEGZMARTBUILD Wall Panel for CEG, JAIPUR

Specifications

Product PropertyWall Panel Standard
Dry Density550-650 Kg/m3 IS – 2185 (Part III)
Working Density600-700 Kg/m3
Wind Load50-180 Kg/m2
Compressive Strength>4 N/mm2IS2185(partIII)
Water Absorption<33%by mass
Fire RatingUp to 4 hr100mm. thickness wall panel / BS476 Part 20 and 22 :1987
Thermal Conductivity (k)0.115 W/mk
Sound Insulation (STC)38 - 43 dB
Reinforce steel tensile strength > 500 N/mm2
Weight70 kg/m2100 mm thickness wall panel

Installation Manual

Complete Guide to ZMARTBUILD WALL Installation

ZMARTBUILD WALL, Innovative & Quality Wall Panel

Help & FAQ

ZMARTBUILD Wall Panel is Super Speed Wall Panel which Faster than AAC Blocks 4 times and easily installed by groove and tongue panels. General installers can install ZMARTBUILD Wall Panel more than 10 sqm/man/day. This advantage can help you finish the project earlier and can save more on total project cost. Not only top speed installation, but also strong & durable materials, higher rate of fire resistance, noise reduction, and green value.

Width : 600 mm
Length : 2,400 – 4,000 mm
Thickness : 75, 100, 125, 150, 200, 250 mm

Double high strength wire mesh ST50 (Yield 500 Mpa). Can resist the bending moment (Design load 150 kg/sq.m).

ZMARTBUILD Wall Panel faster than AAC Blocks up to 4 time. It is easily installed by groove and tongue panels. General installers can install ZMARTBUILD Wall Panel more than 10 sqm/man/day.

It is durability to resist wind and reinforce with preventive corrosion steel. Moreover, this wall panel is No Knocking Sound and can hang 50 kg per point by Expansion fixing.

It is excellent Fire resistance as this AAC Panel is Non- Combustible material and can protect fire for 4 hours. it can protect you better in the case of a fire.

It can reduced working time and transportation cost due to Light weight (70 kg/m2). Furthermore, it is good heat insulation AAC panel (K=0.115 w/mk.) to save Energy as well.
