Insulation Material

Armax :
SCG Acoustic Ceiling Tile

Acoustic control with good aesthetic appearance and suitable for many types of buildings.

The ultimate goal of room design in habitat or buildings is to create peaceful and functional living spaces. So the factors that need to consider is preventing or controlling in&out disturb noise to achieve the sound solution as required.  This insulation materials can help you.

Key Documents & Design Files

Previous
Next

Product Option

Armax : SCG Acoustic Ceiling Tile

Product Size

Product NameApplicationSeries-ColorsThickness (mm.)Width x Length (mm.)Installation SystemWeight (kg./pc.)
SCG Acoustic Ceiling Tile : ArmaxInternal Acoustic Ceiling TileWondery-Splash White
( Aluminum Foil Backing)
19600 x 600T-Bar Space lining0.5
600 x 1200T-Bar Space lining1.0
SCG Acoustic Ceiling Tile : ArmaxInternal Acoustic Ceiling TileWondery-Splash White
( Aluminum Foil Backing)
25600 x 600T-Bar Space lining0.62
600 x 1200T-Bar Space lining1.25

Special Property

SCG Acoustic for Ceiling Tile : Cylence TM ArmaxTM is composed of non-combusible fine and uniform glasswool. Regid board available of white vinyl facing for choosing upon customers design. SCG Acoustic for Ceiling Tile : CylenceTM ArmaxTM is easily installed with T-Bar suspened ceiling system for commercial, office and residential buildings. It’s performs an excellent acoustic as well as thermal insulation performance, No sagging and cleanable are the outstanding benefits of SCG Acoustic for Ceiling Tile : CylenceTM ArmaxTM which maintain good appearance and performance overtime.

Armax : SCG Acoustic Ceiling Tile

Special Properties

Excellent Sound Absorption

NRC = 0.74 (Noise Reduction Coefficient) SCG Acoustic for Ceiling Tile : CylenceTM WonderyTM SCG Acoustic for Ceiling Tile : CylenceTM ArmaxTM offers an excellent performance with NRC up to 0.74. Instead of bouncing sound like other hard surface ceiling board, SCG Acoustic for Ceiling Tile : Cylence TM ArmaxTM helps reducing reverberant noise and creates a peaceful atmosphere in the room.

No sagging or Warping

SCG Acoustic for Ceiling Tile : CylenceTM ArmaxTM will not sag and warp in the heat and high humidity due to its light weight and moisture resistance. SCG Acoustic for Ceiling Tile : CylenceTM ArmaxTM will maintain their good appreance overtime. Also the cost of replacing warped or sagged ceiling boards is eliminated.

Greater Light Reflectance

SCG Acoustic for Ceiling Tile : CylenceTM ArmaxTM is faced with attractive white vinyl pattern which offers high light reflectance performance. This means that the available light is used more efficiently and has allowed designers to use less light fixtures thus reducing electriciti consumption, heat generation and also energy cost.

thermal insulation materials ARMAX

Application Guideline

  • Living Room
  • Office
  • High Rise Building
  • Hotel
  • Factory
  • Green Building

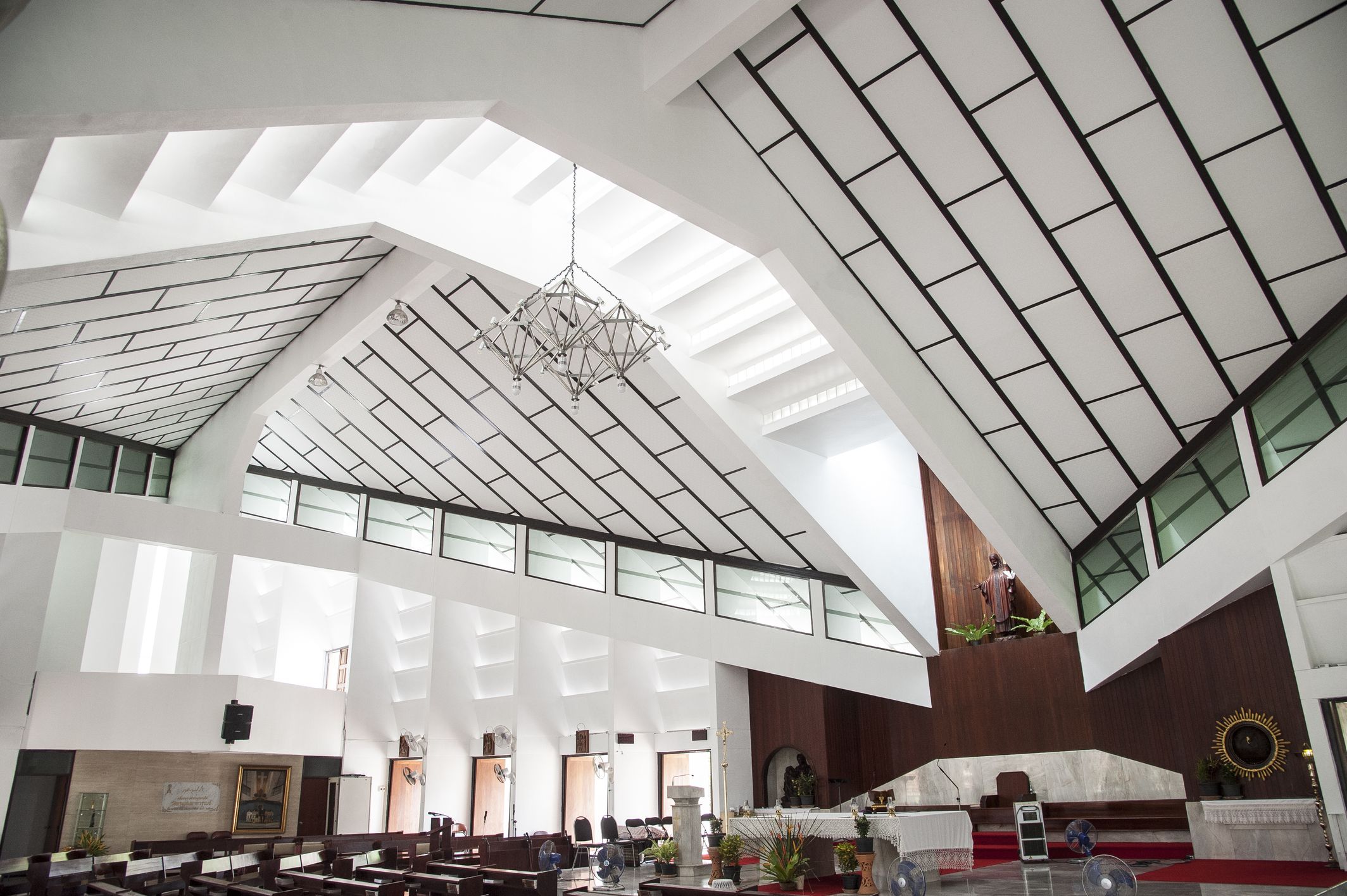

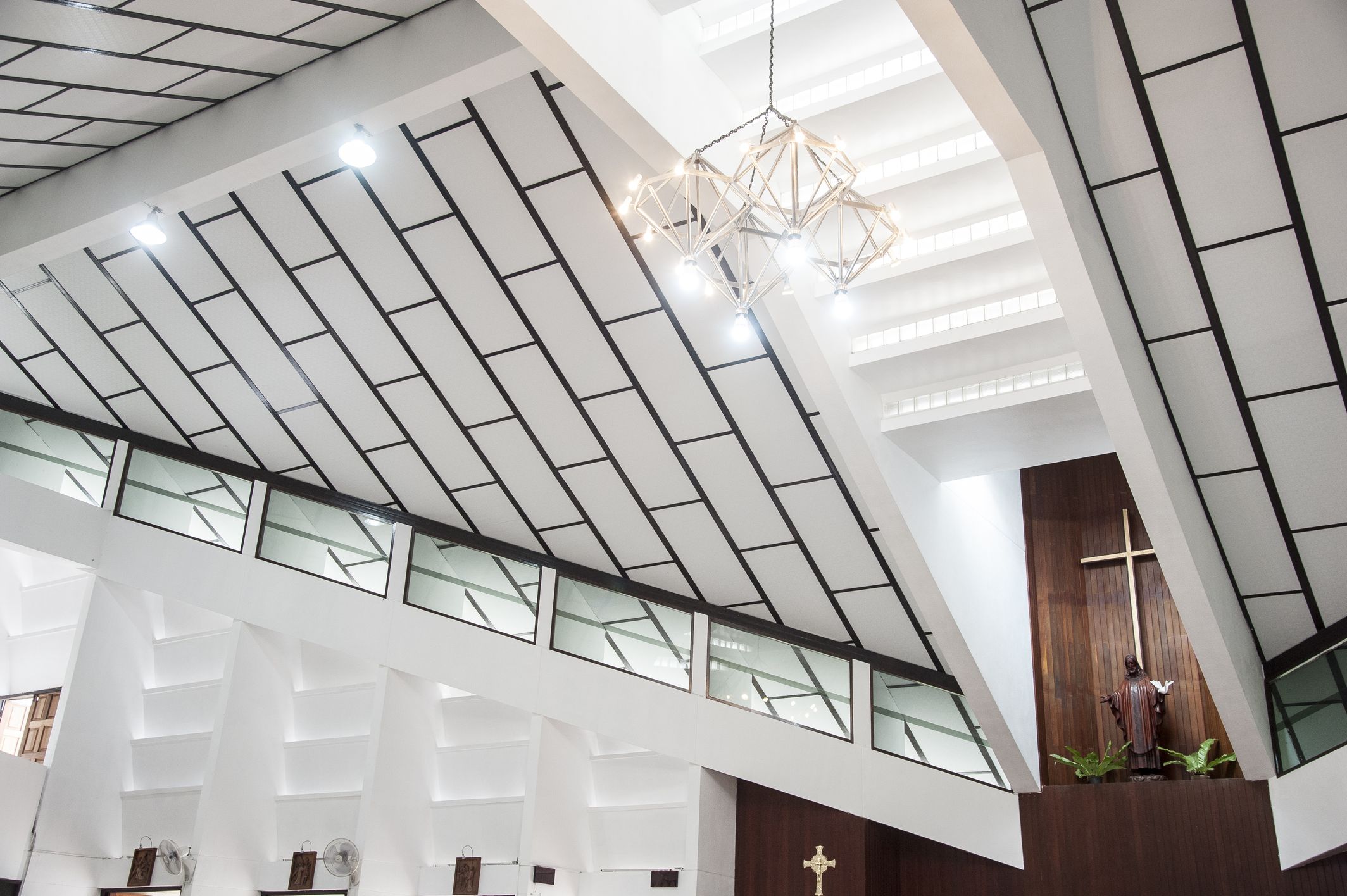

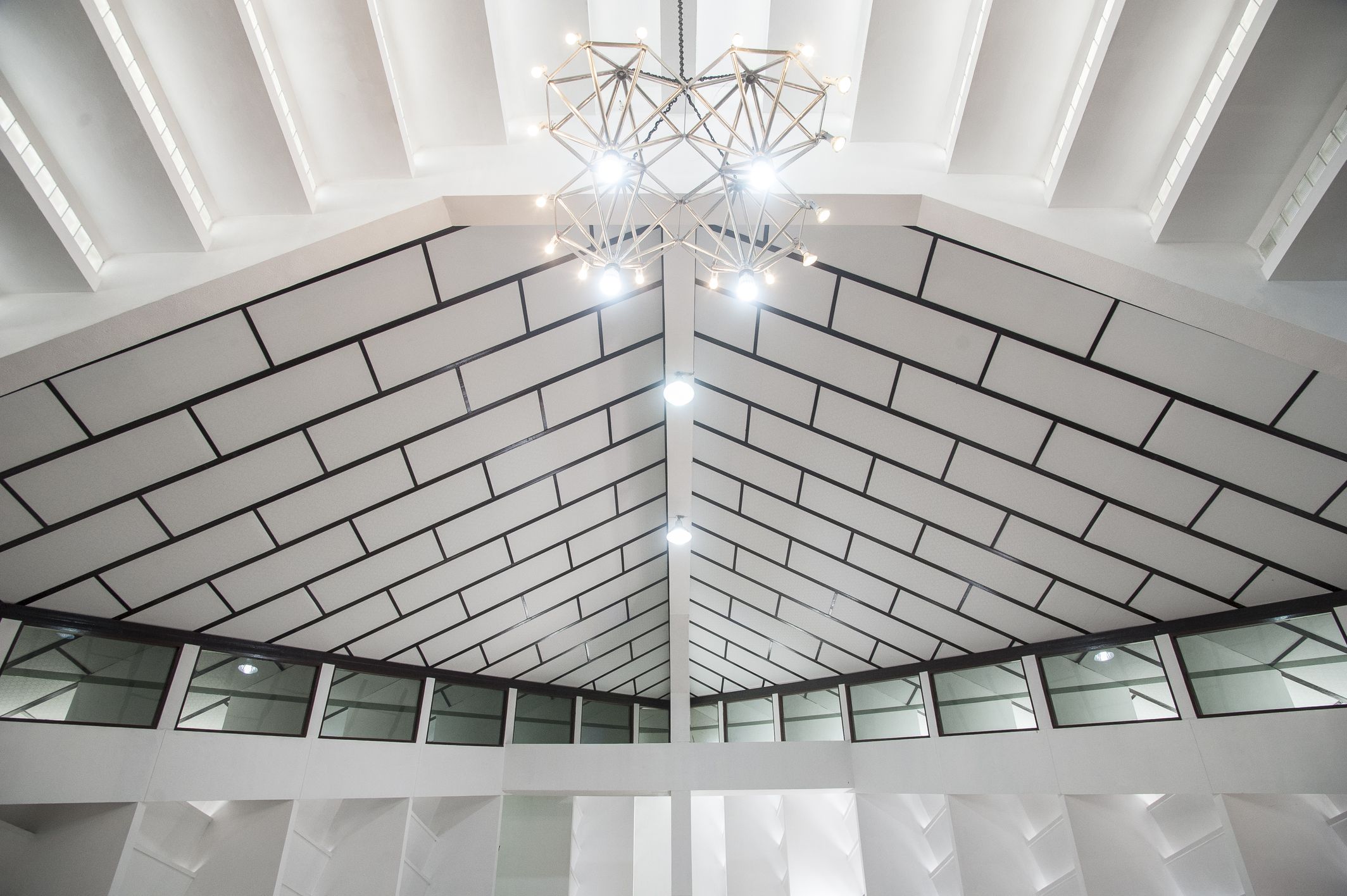

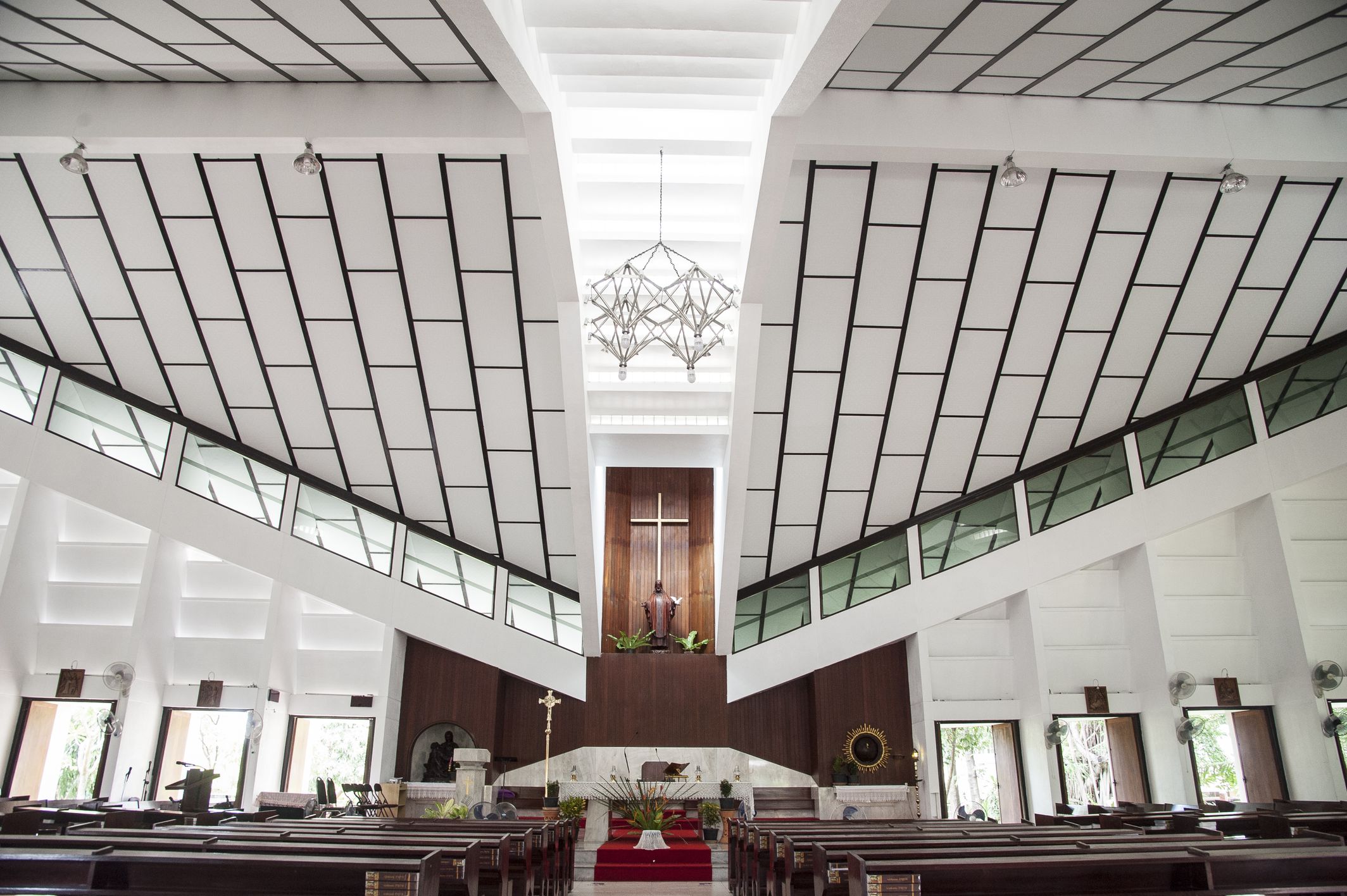

Application Example

Specification & Standard

ProductThickness (mm)Sound Absorption Coefficient (SAC)
at 1/3 octave band center frequencies Hz. (ASTM C 423)
NRC
SCG Acoustic for Ceiling Tile : CylenceTM ArmaxTM125250500100020004000
190.430.310.510.630.520.40.49
250.200.650.700.820.690.640.74

Installation
