ZMARTBUILD Wall Panel

The best for the fastest wall.

ZMARTBUILD Wall Panel is the future of AAC Blocks which is bigger size that allow you to build faster and get more advantage such as performance, cost & time saving, project efficiency, and carpet area. ZMARTBUILD Wall Panel (or we known as Q-CON Wall Panel in Thailand) is lightweight, steel reinforced, groove & tongue panels that can be easily installed by your normal on-site installers. They are suitable to be used as both external and internal walls.

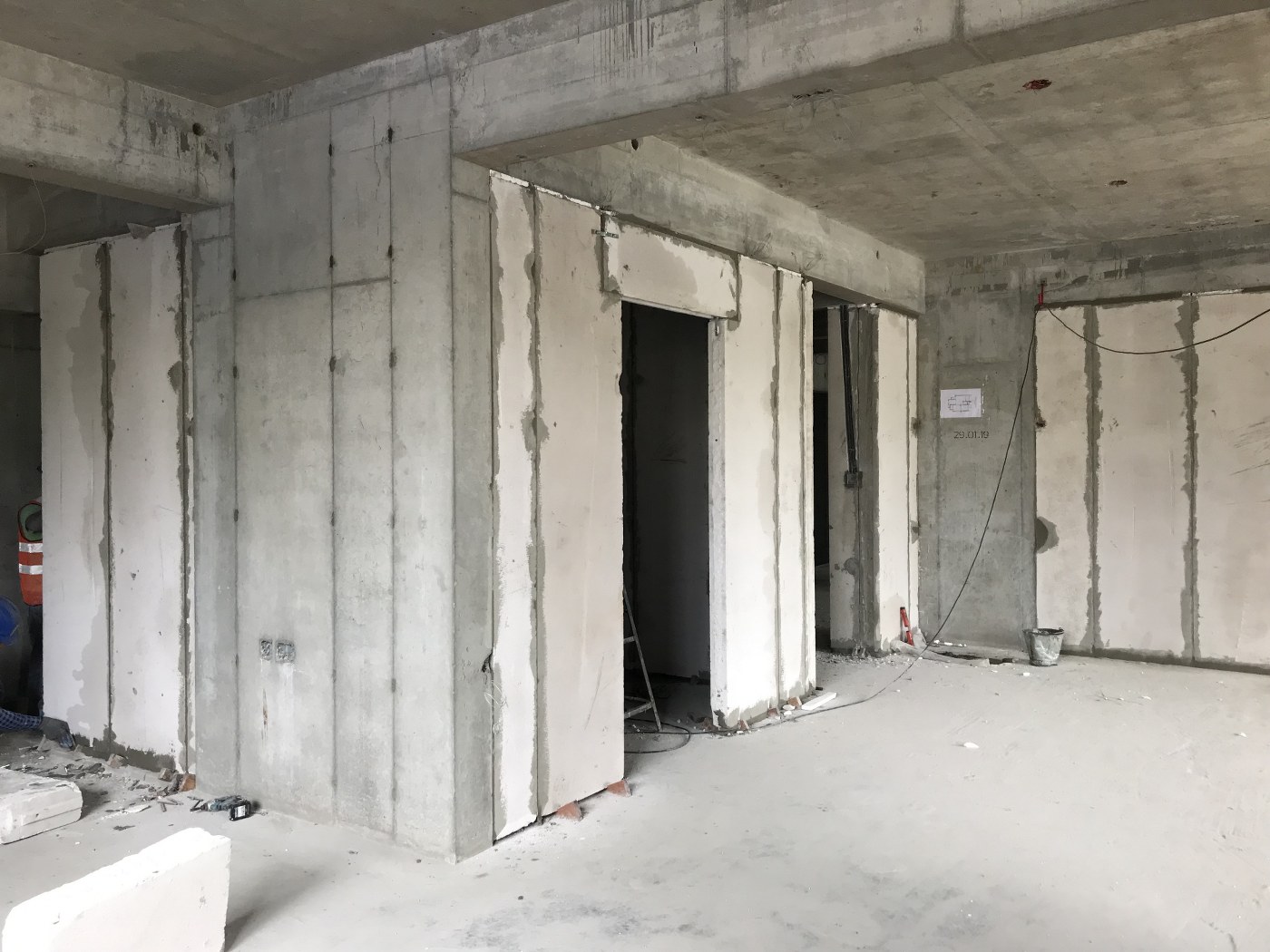

Before After

ZMARTBUILD Wall Panel is Super Speed Wall Panel which Faster than AAC Blocks 4 times and easily installed by groove and tongue panels. General installers can install ZMARTBUILD Wall Panel more than 10 sqm/man/day. This advantage can help you finish the project earlier and can save more on total project cost. Not only top speed installation, but also strong & durable materials, higher rate of fire resistance, noise reduction, and green value.

ZMARTBUILD Wall Panel Logo
Hotspots Background

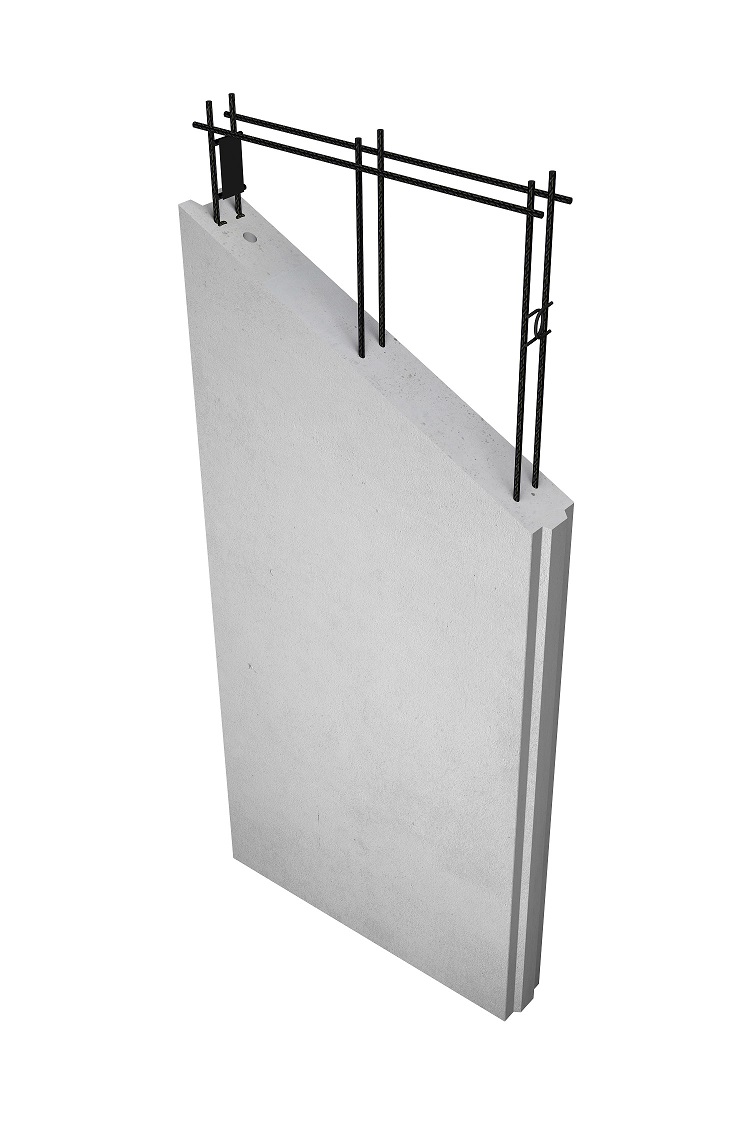

A steel mesh, coated with an anti-corrosion protection layer for maximum strength and durability.

Tongue & Groove profile that help your team perform easier and faster wall installation to any project.

Composition : Portland Cement Type1, Purified Sand, Gypsum+ Lime, Aluminum and Water

Strength

from inside

Whether you’re a developer, an architect, a designer, a builder or a wall installer, ZMARTBUILD Wall Panel delivers exceptional advantages in terms of performance, cost & time saving and project efficiency.

Wire Mesh Specification

Double high strength wire mesh ST50 (Yield 500 Mpa). Can resist the bending moment (Design load 150 kg/sq.m).

Size & Dimension

Width : 600 mm
Length : 2,400 – 4,000 mm
Thickness : 75, 100, 125, 150, 200, 250 mm

Free Download & Video

Catalog and Installation Guide

Benefits

Working at top Speed and top Performance.

Super Speed

Faster than AAC Blocks 4 times and easily installed by groove and tongue panels. General installers can install ZMARTBUILD Wall Panel more than 10 sqm/man/day.

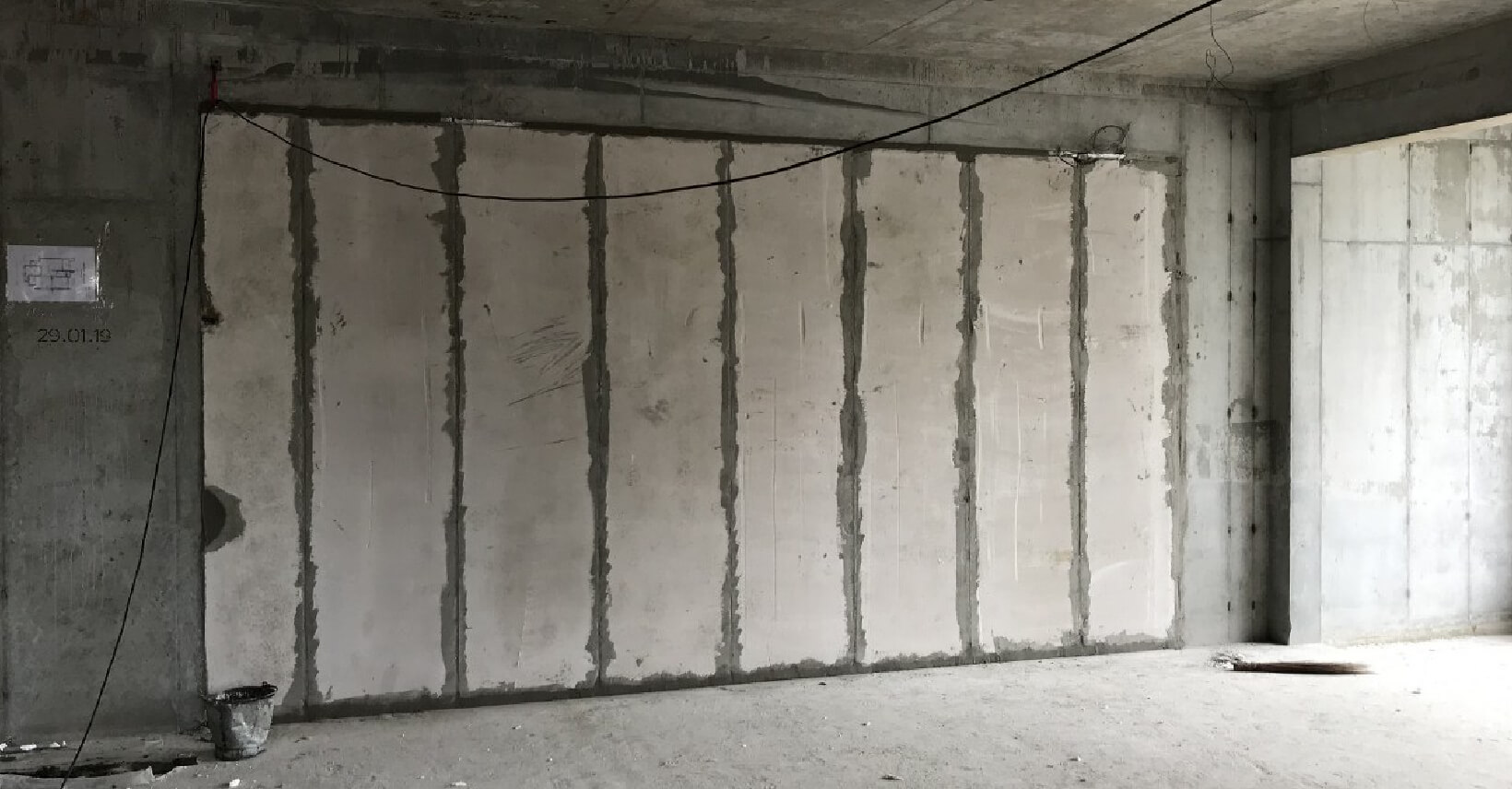

Stronger - Less Crack

Durability to resist wind and reinforce with preventive corrosion steel. Moreover, this wall panel is No Knocking Sound and can hang 50 kg per point by Expansion fixing.

Higher Fire Resistance

Excellent Fire resistance as this AAC Panel is Non- Combustible material and can protect fire for 4 hours. it can protect you better in the case of a fire.

Save Total Budget

Reduced working time and transportation cost due to Light weight (70 kg/m2). Furthermore, it is good heat insulation AAC panel (K=0.115 w/mk.) to save Energy as well.

Noise Reduction

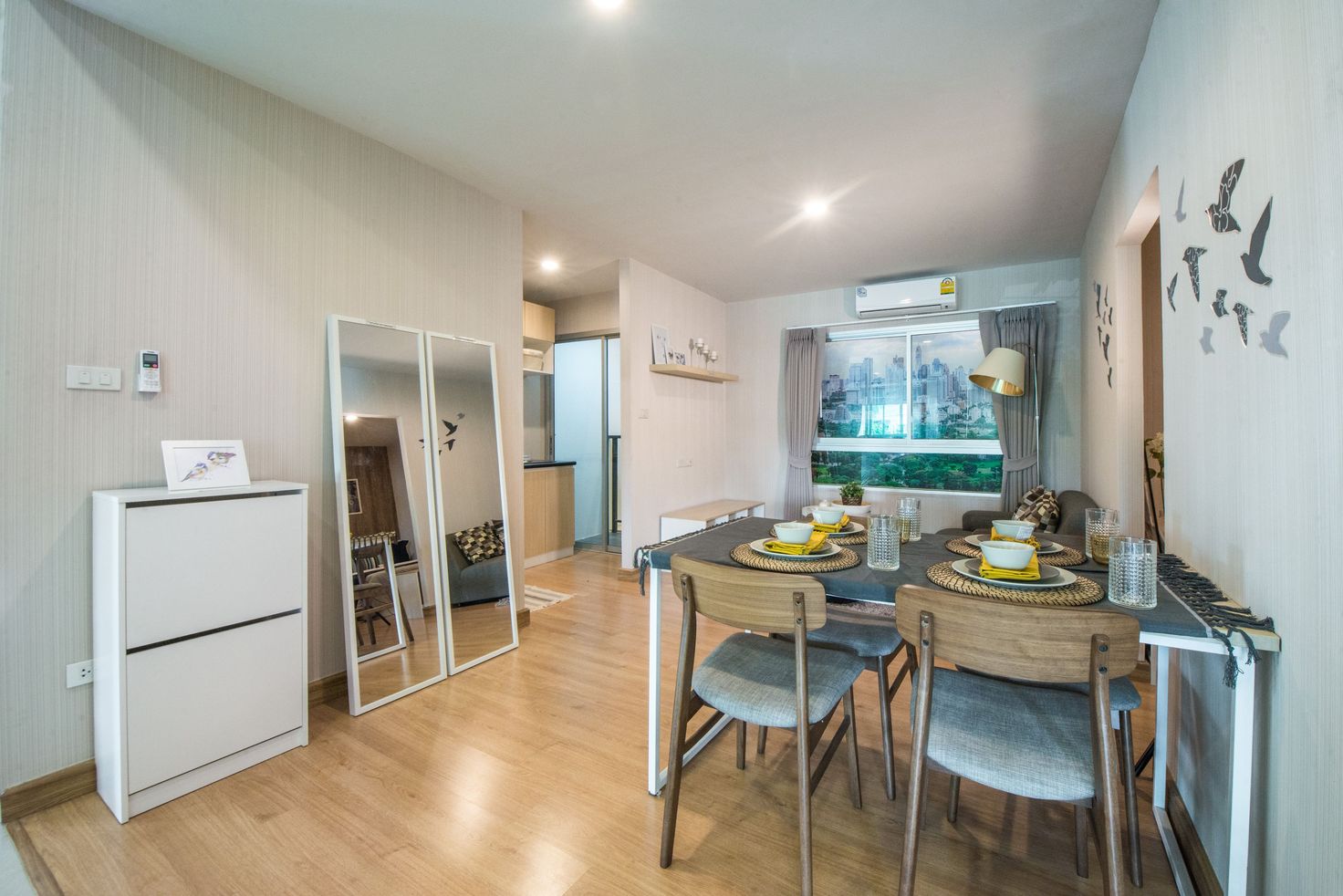

Reduced sound transmission between rooms and noise penetration from external sources. That perfect for hotel room, residential room, and also conference room.

Green Value

ZMARTBUILD Wall Panel are manufactured in a range of sizes to suit, resulting in less wastage. Moreover, it made from completely natural materials which is not pollution causes.

Wall Facts..

It's time to refresh your wall panel construction technique to get the job done faster and more perfect than ever. This graph can show how we can help you at least 5 dimensions. This ZMARTBUILD Wall Panel solution also enable you scale up number of building projects per year by speed up project timeline without losing quality. Come, let’s modernize your project together!

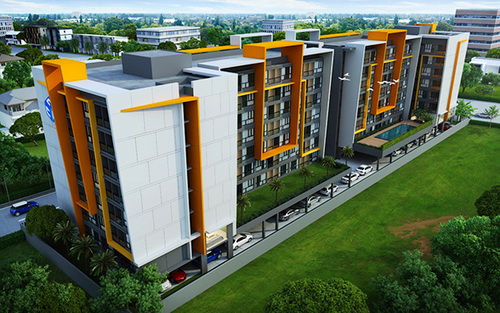

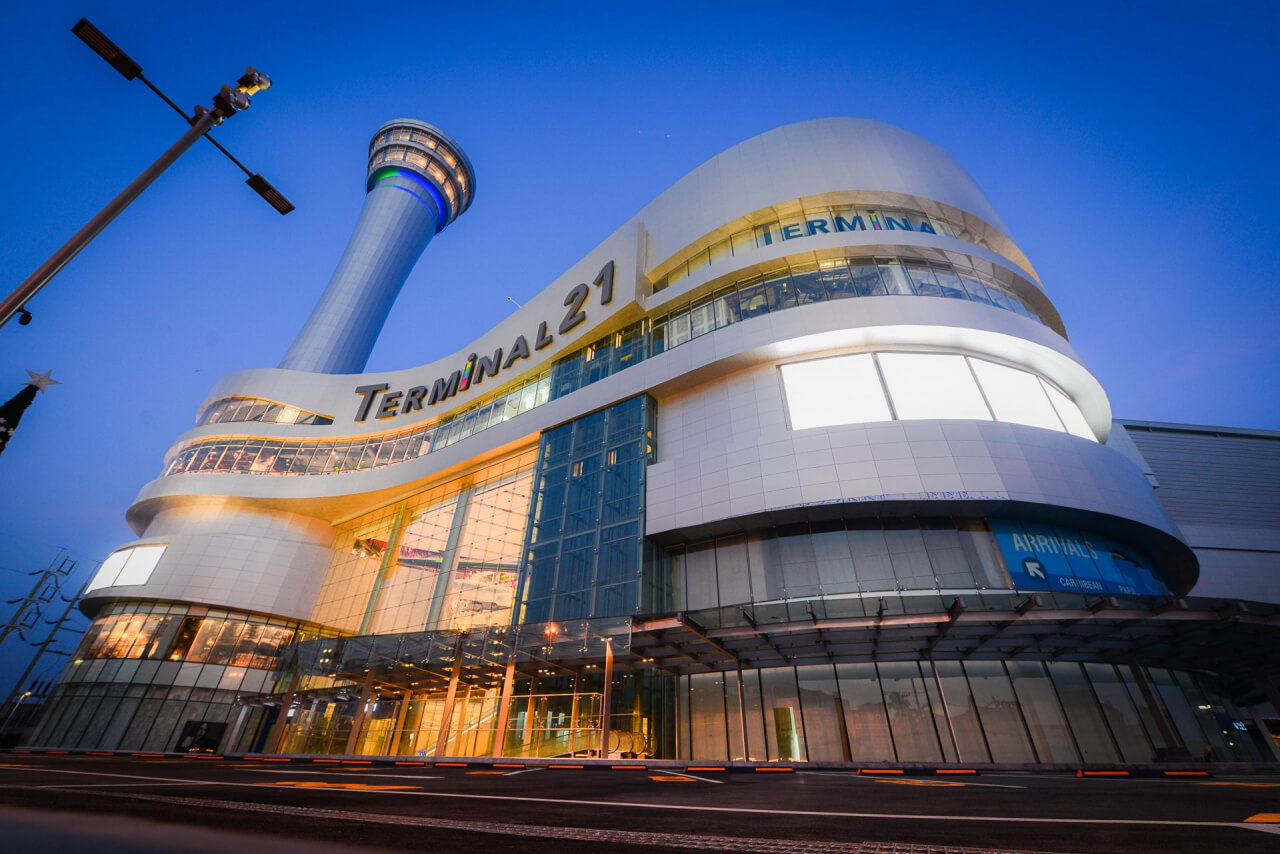

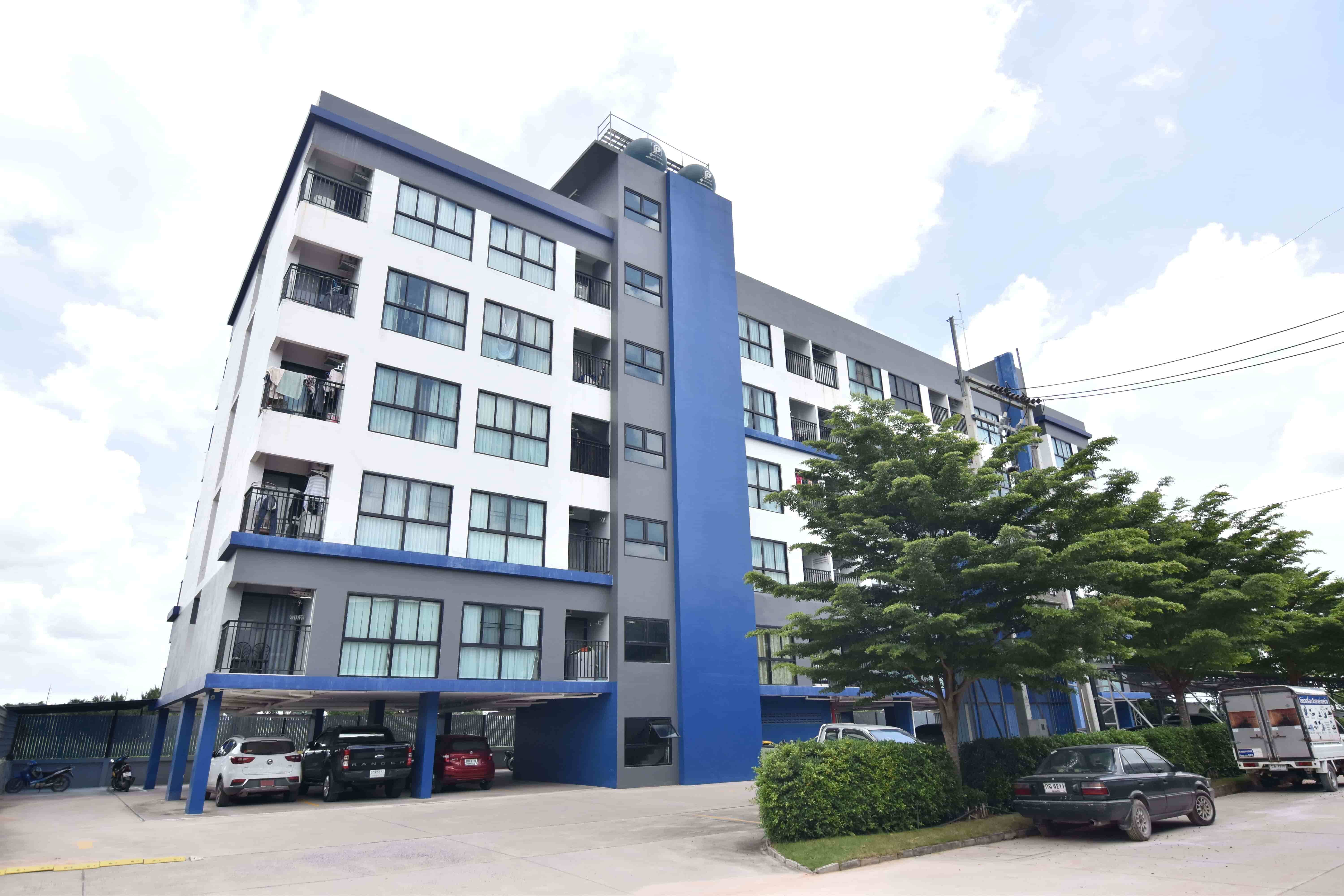

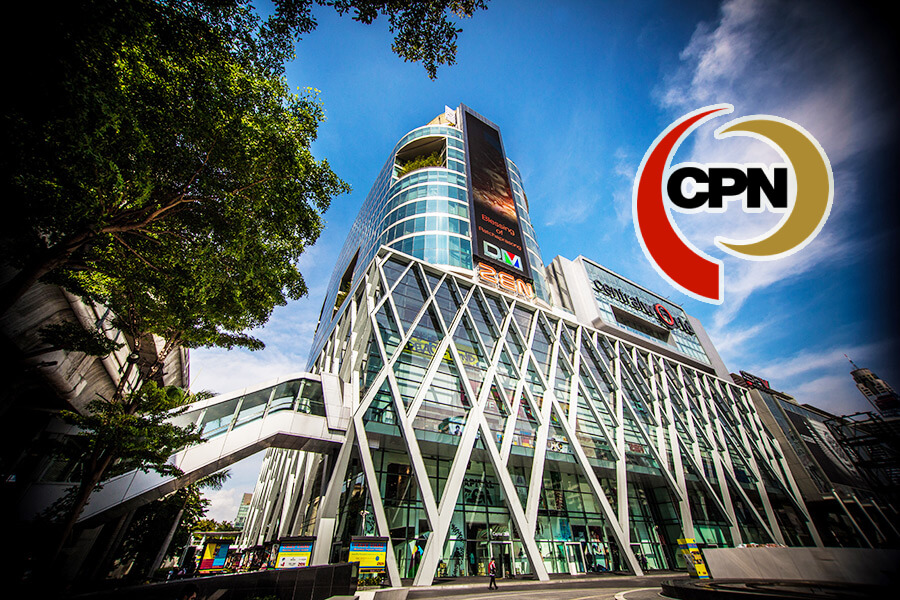

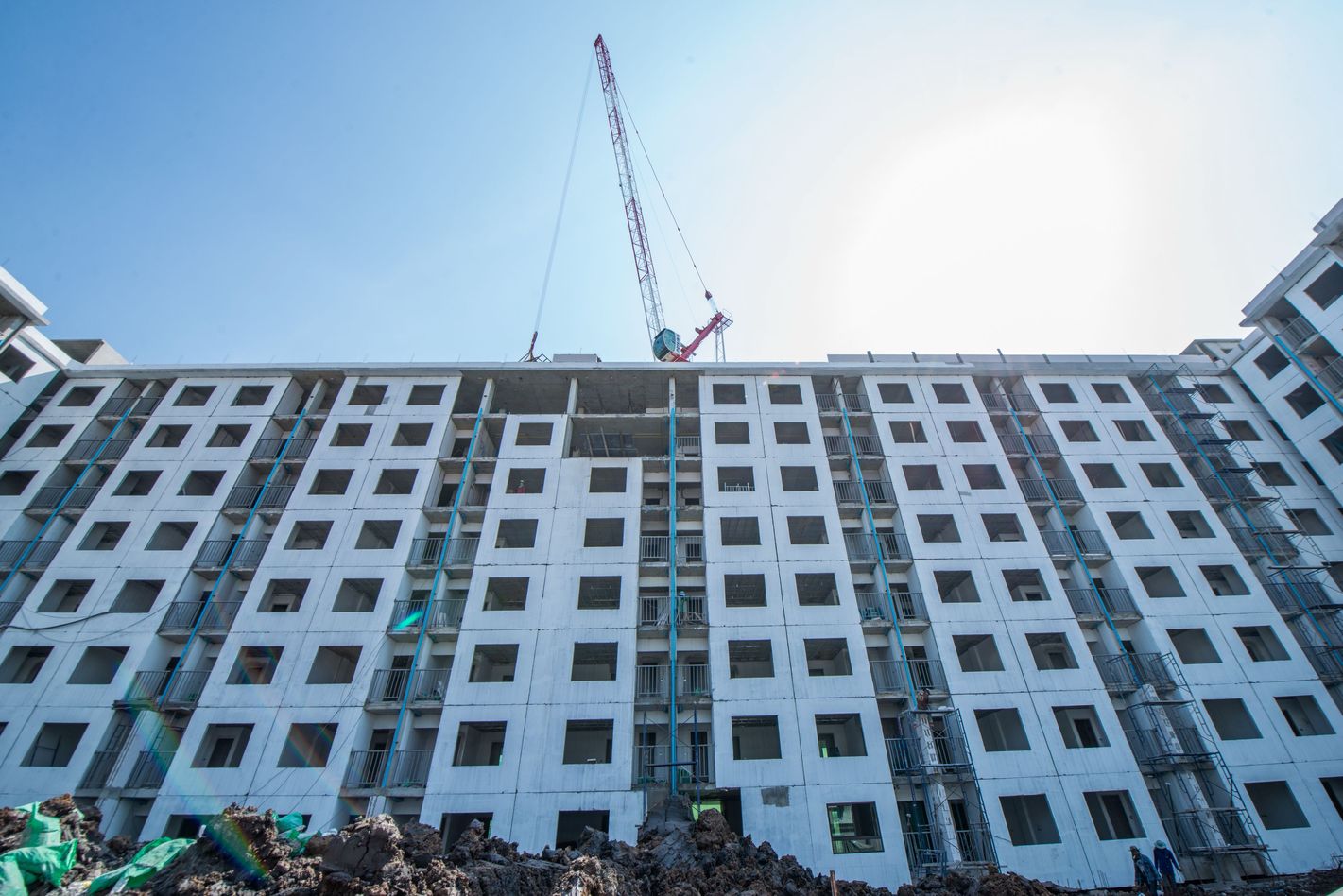

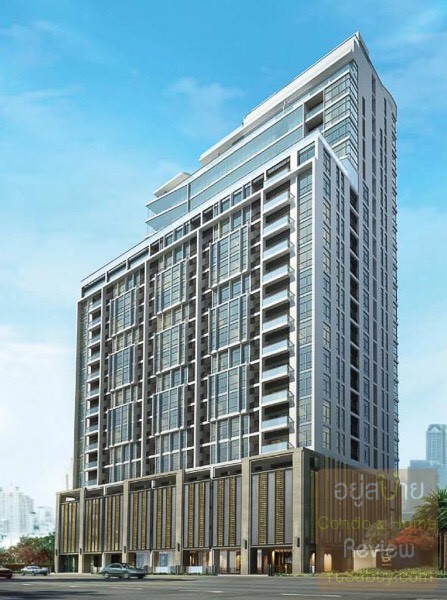

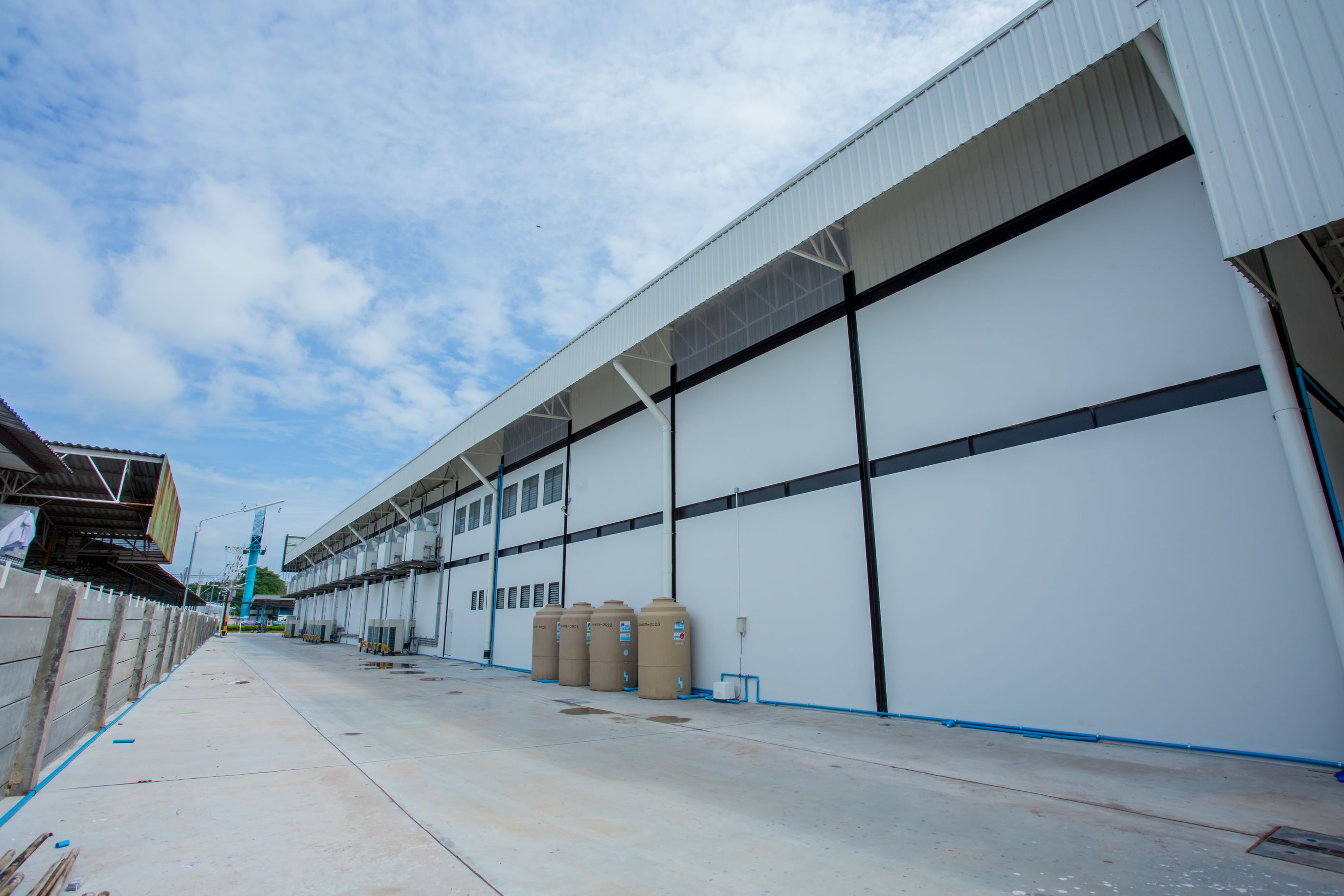

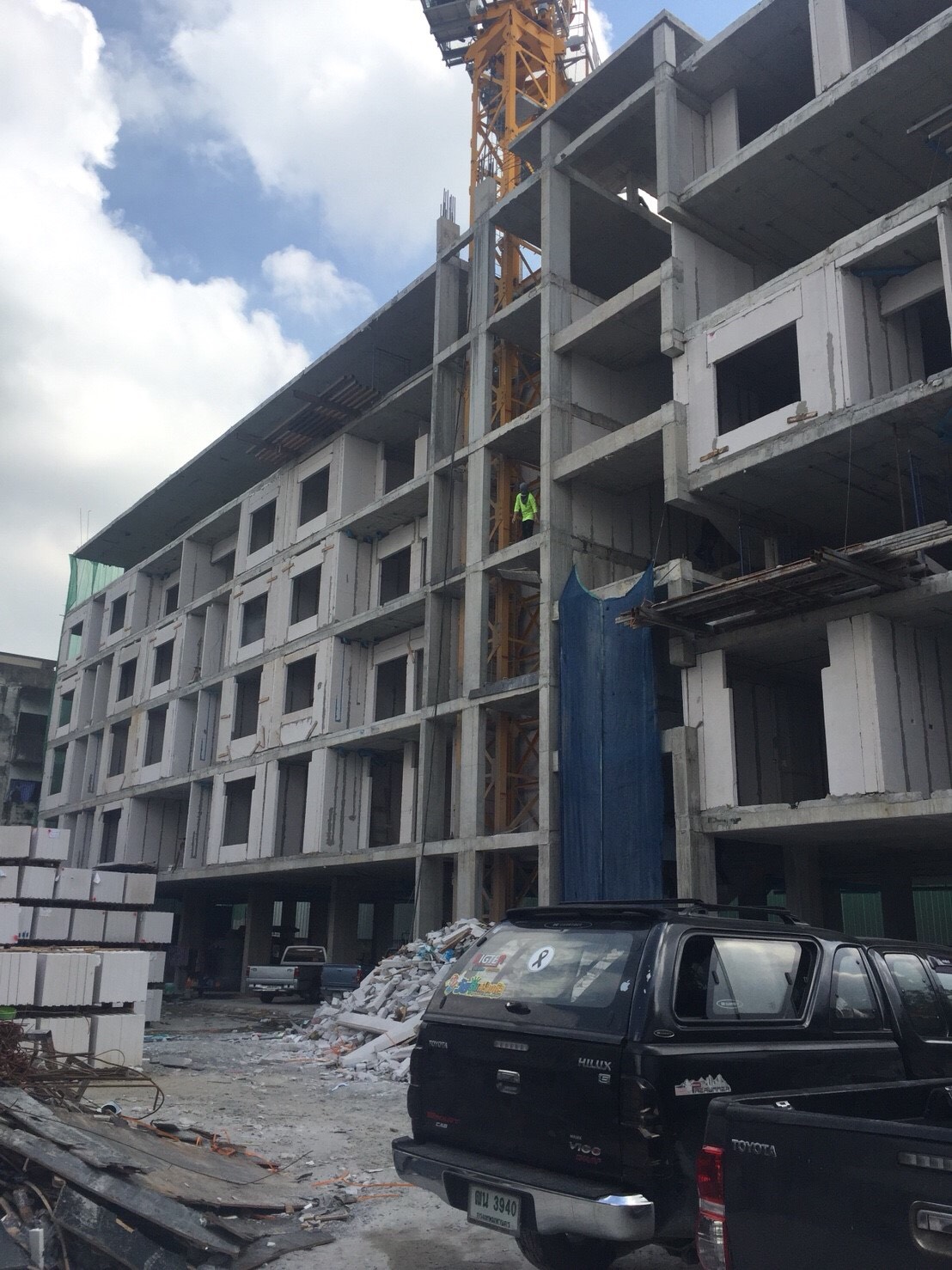

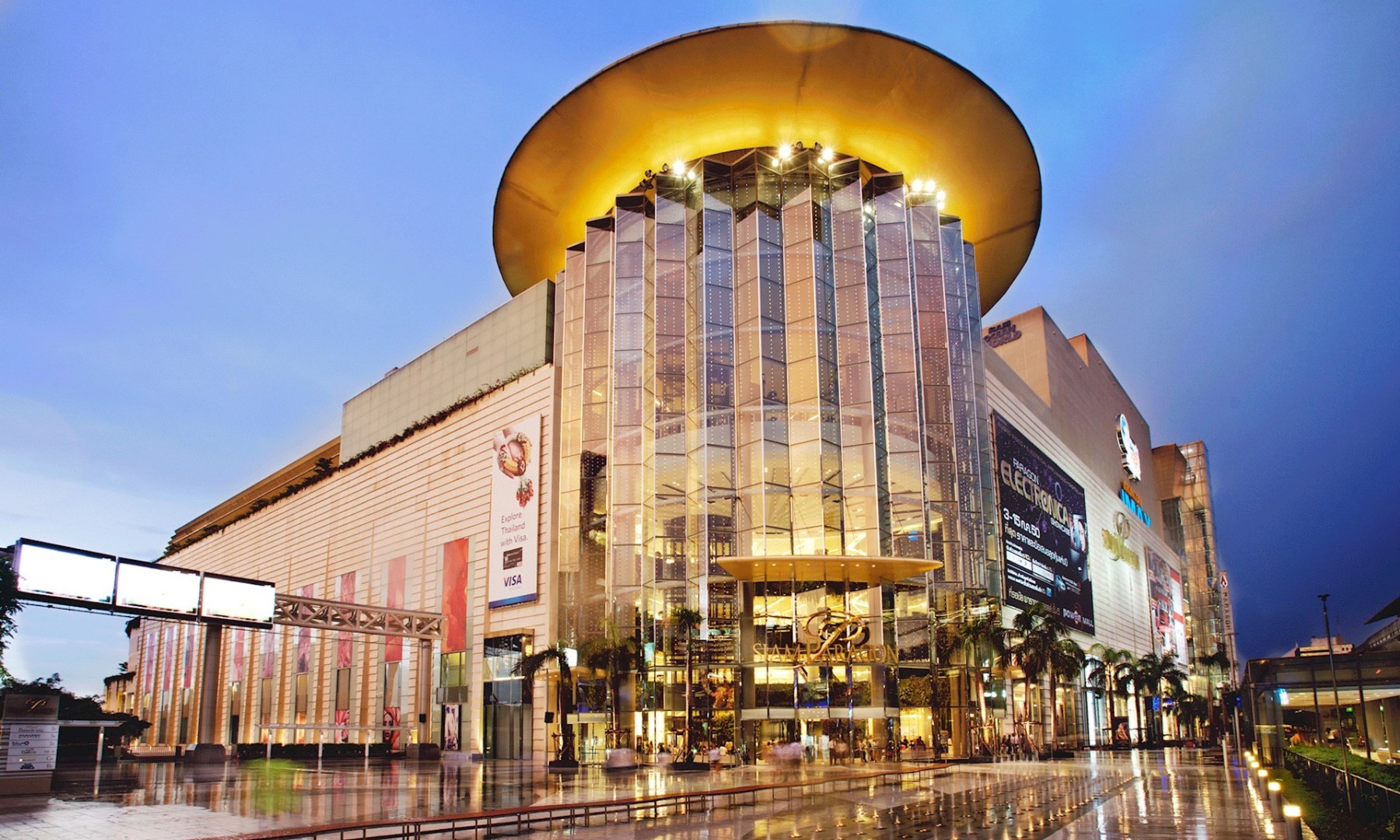

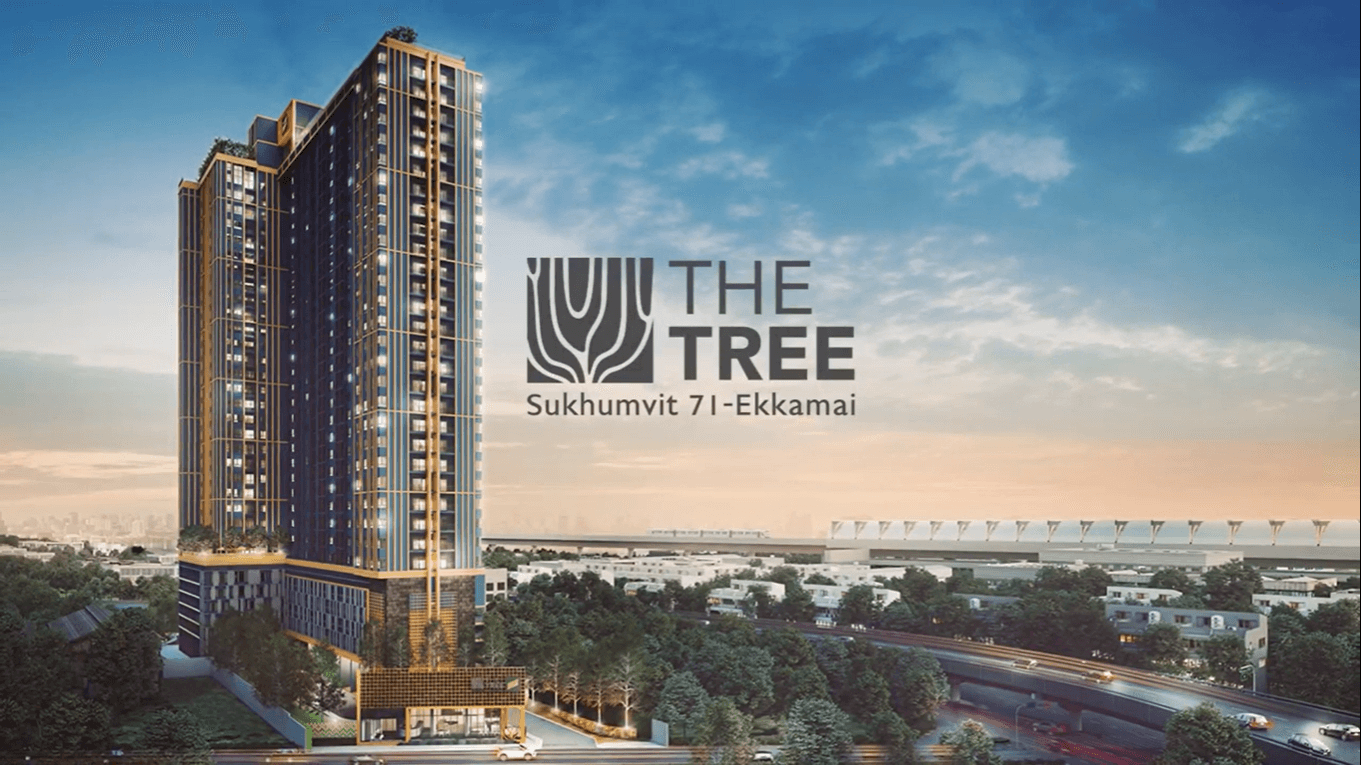

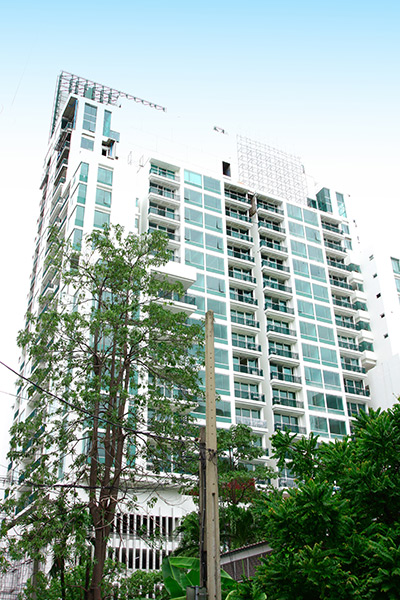

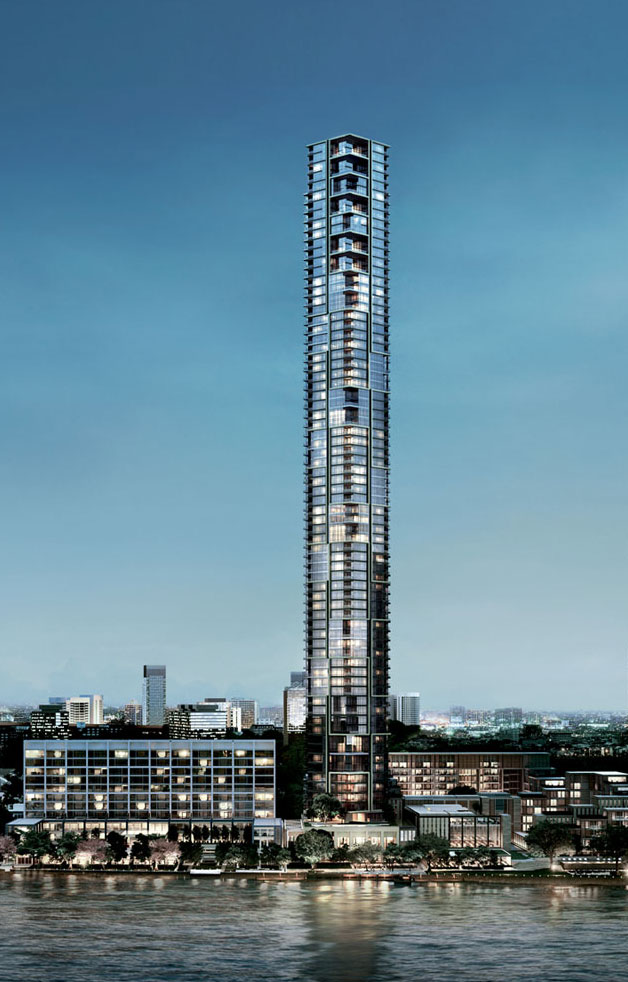

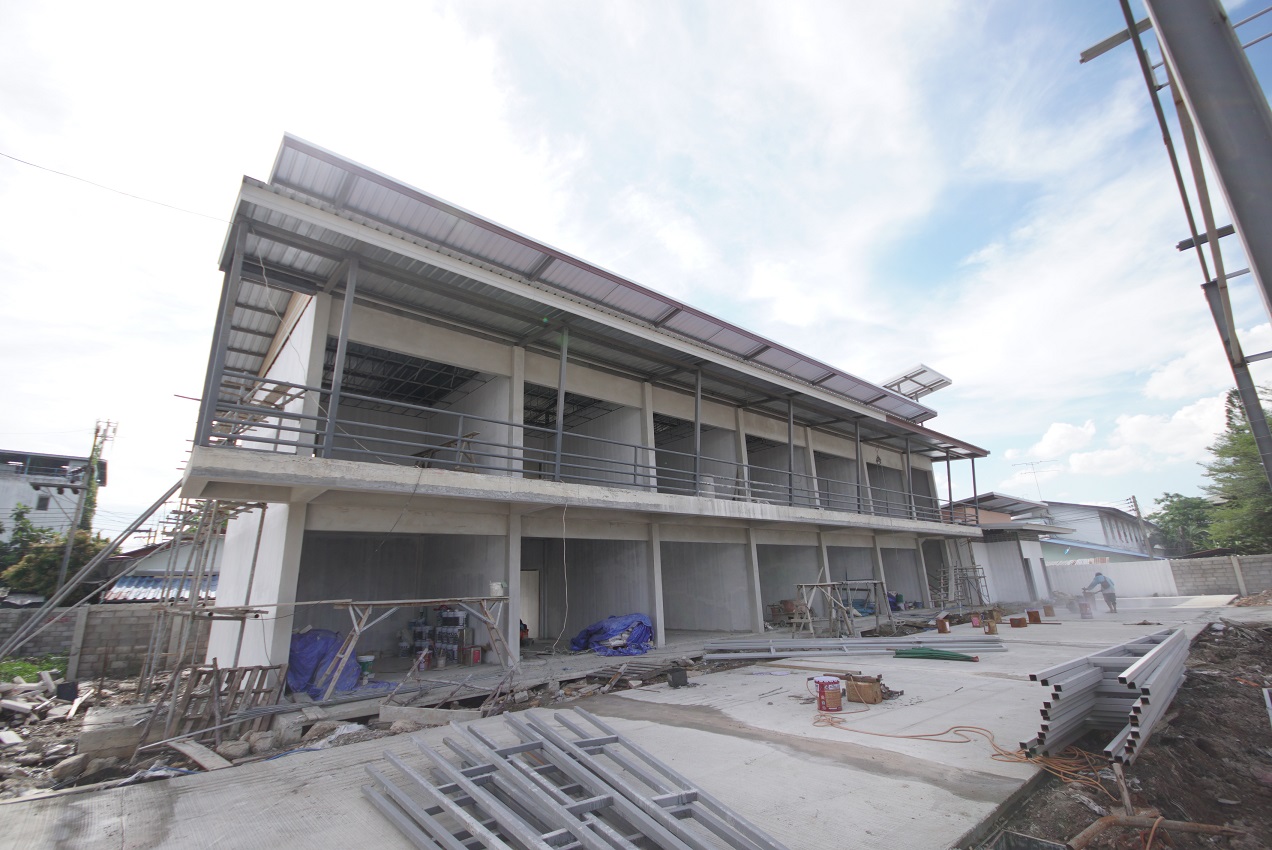

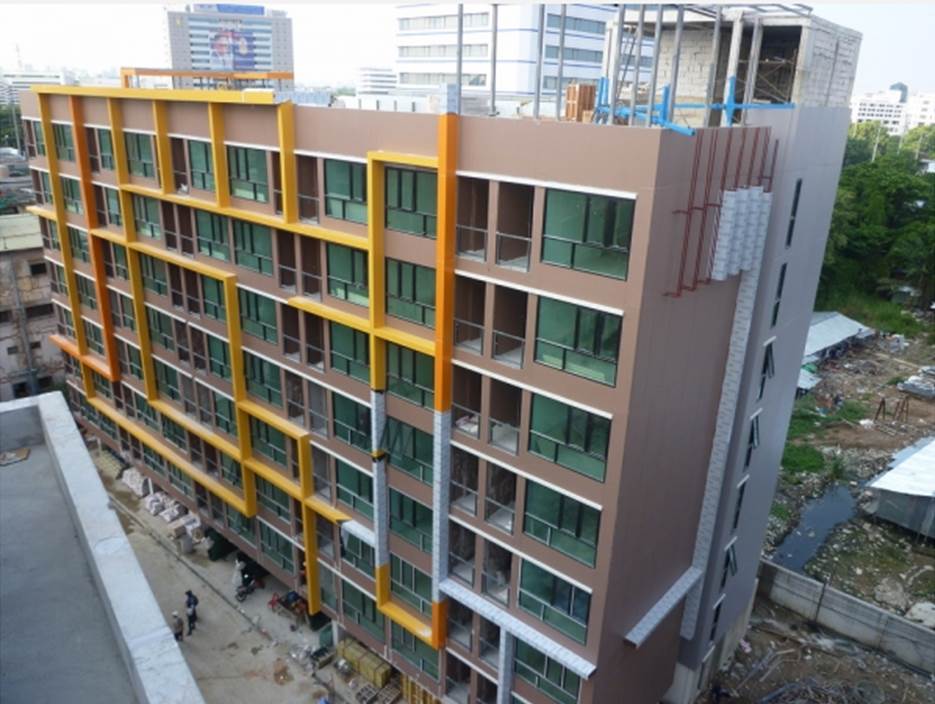

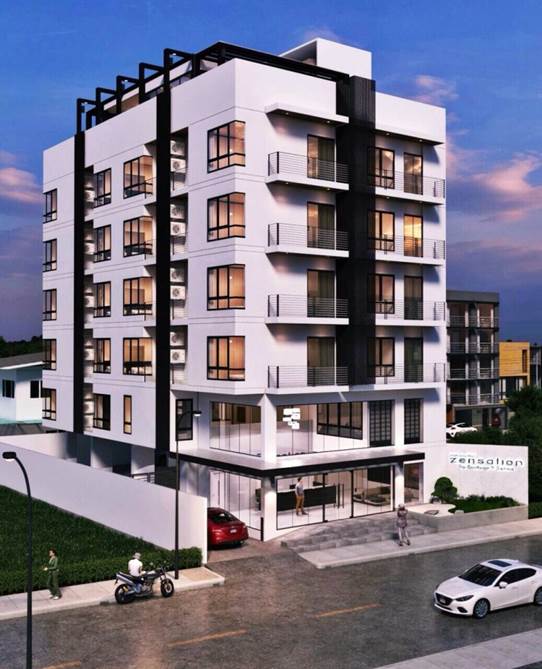

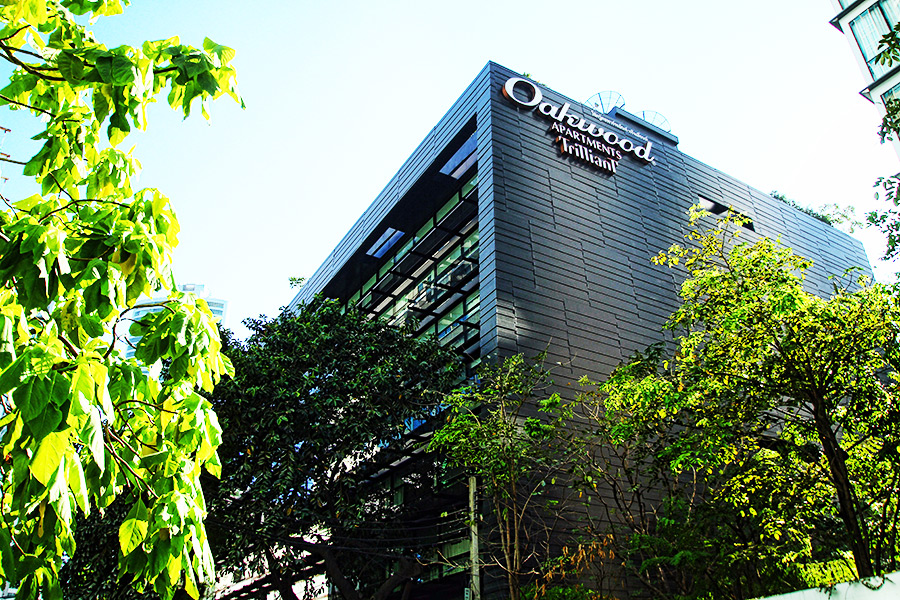

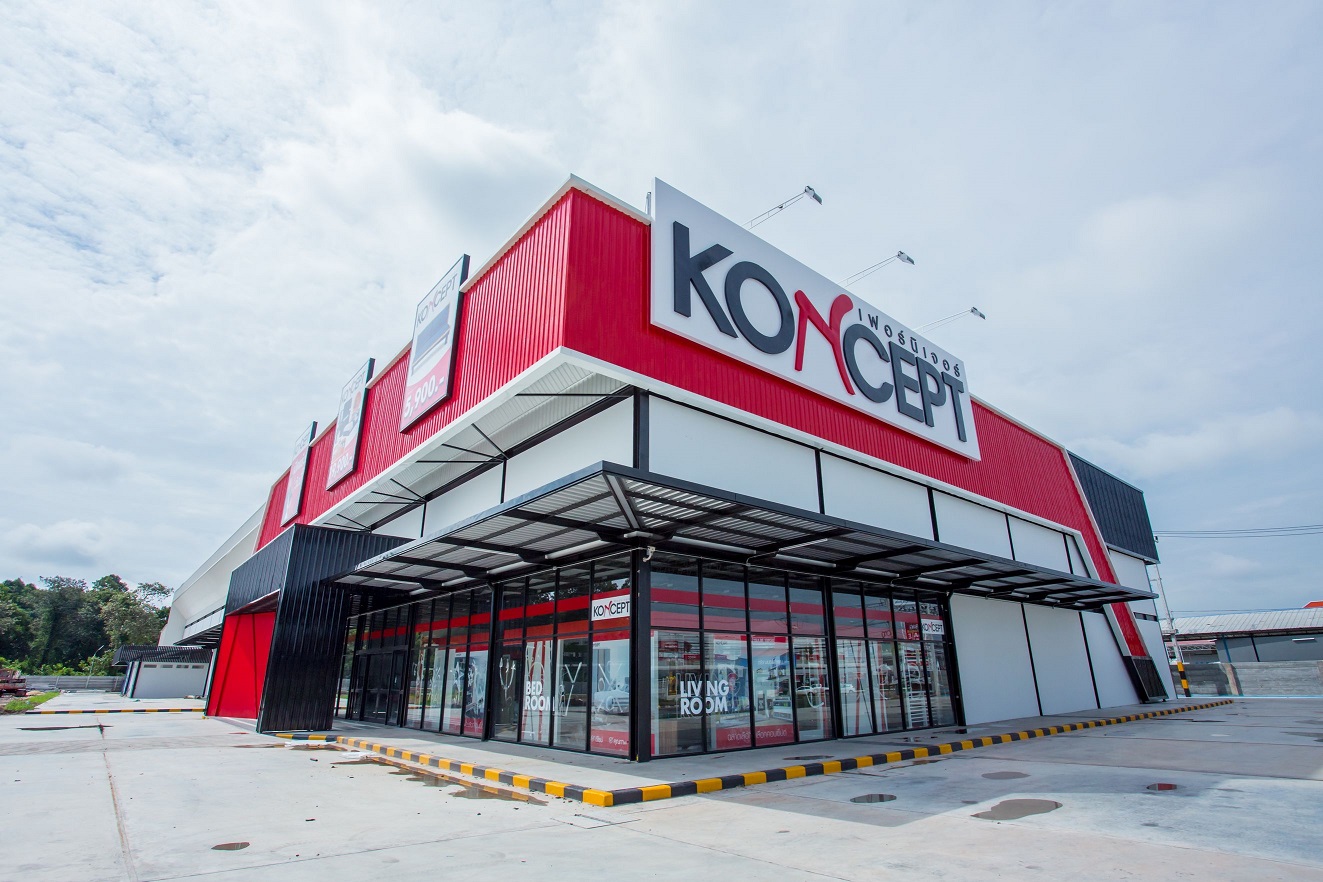

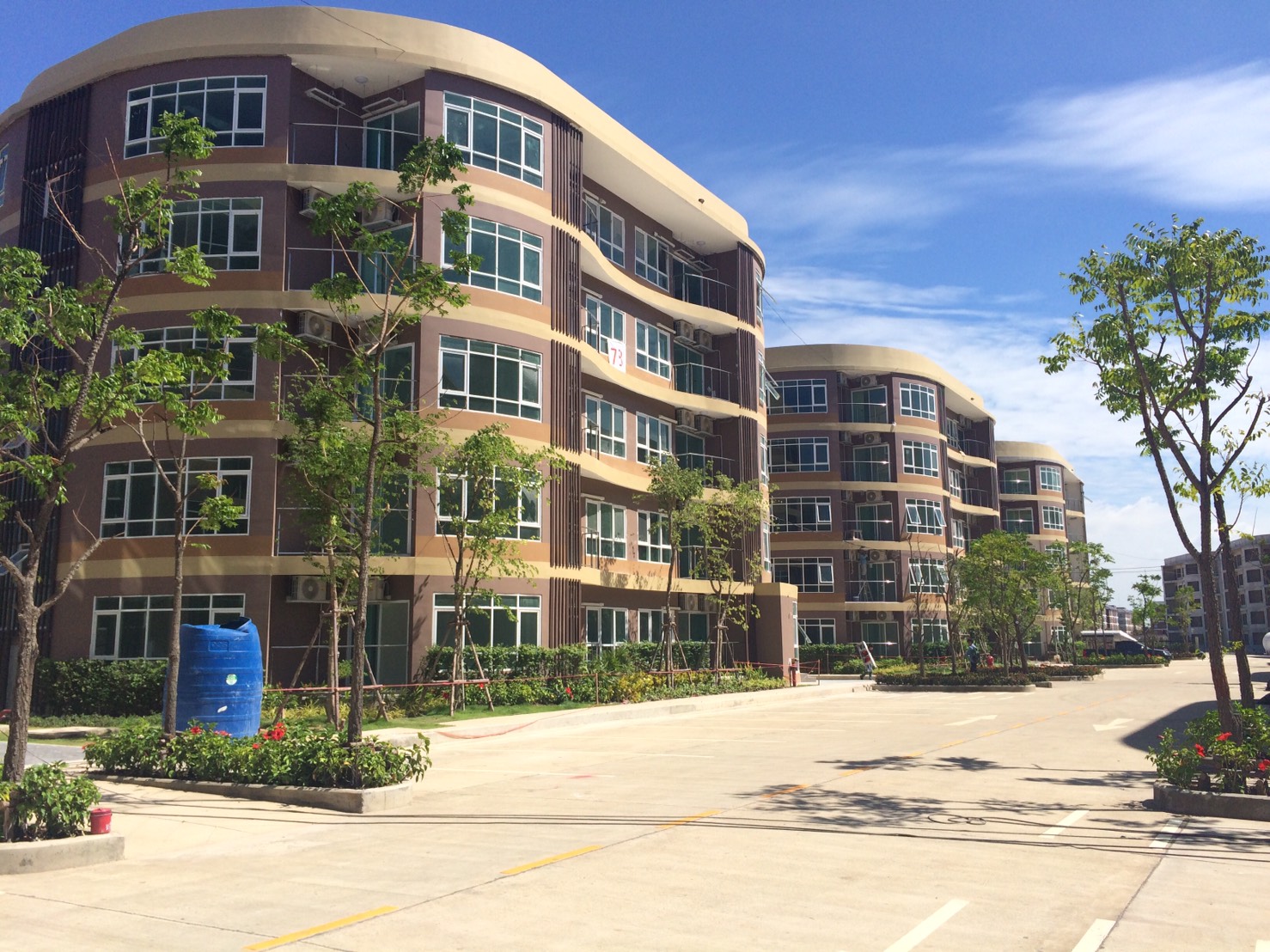

Reference

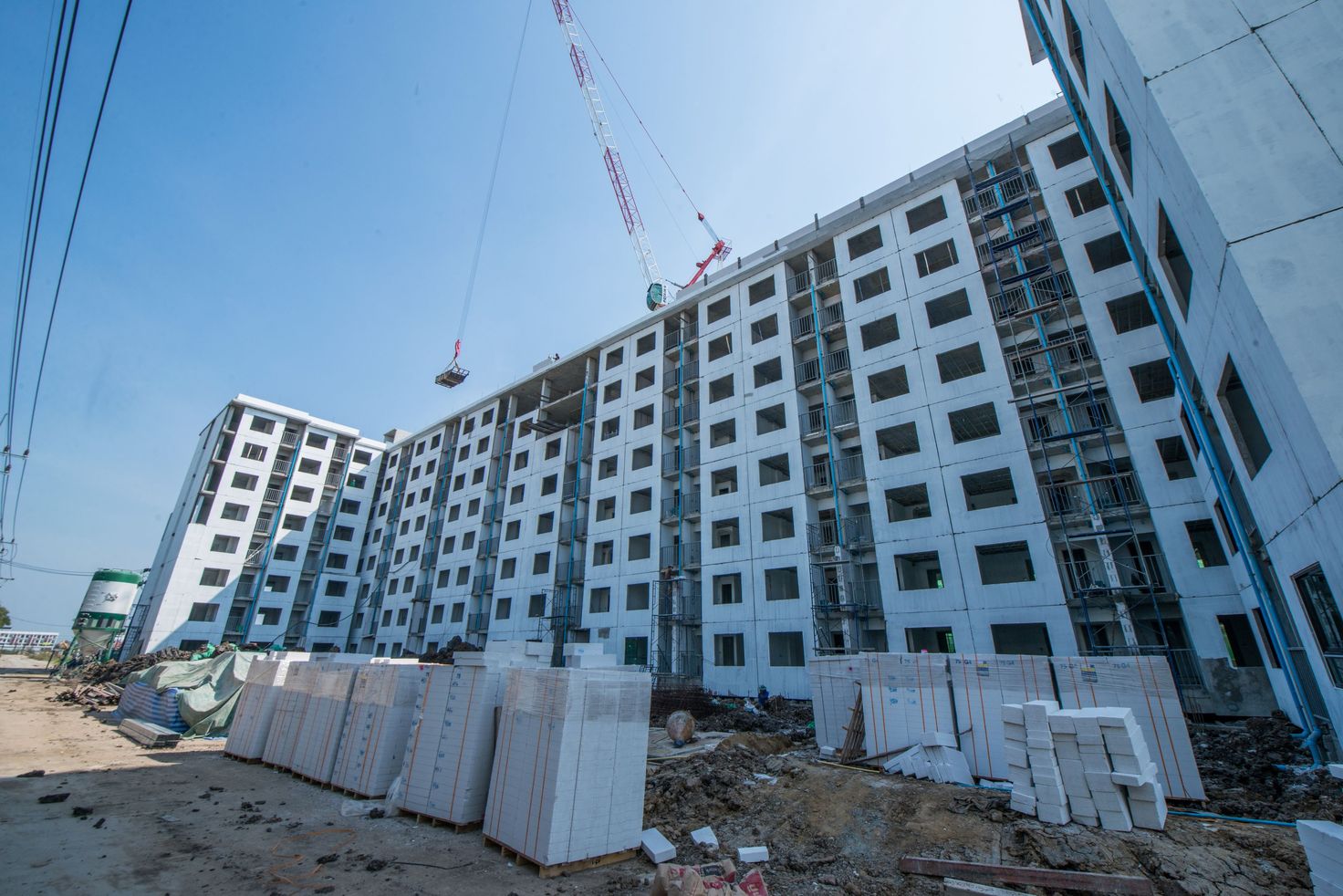

Work best for High Rise and any building that require Top Speed.

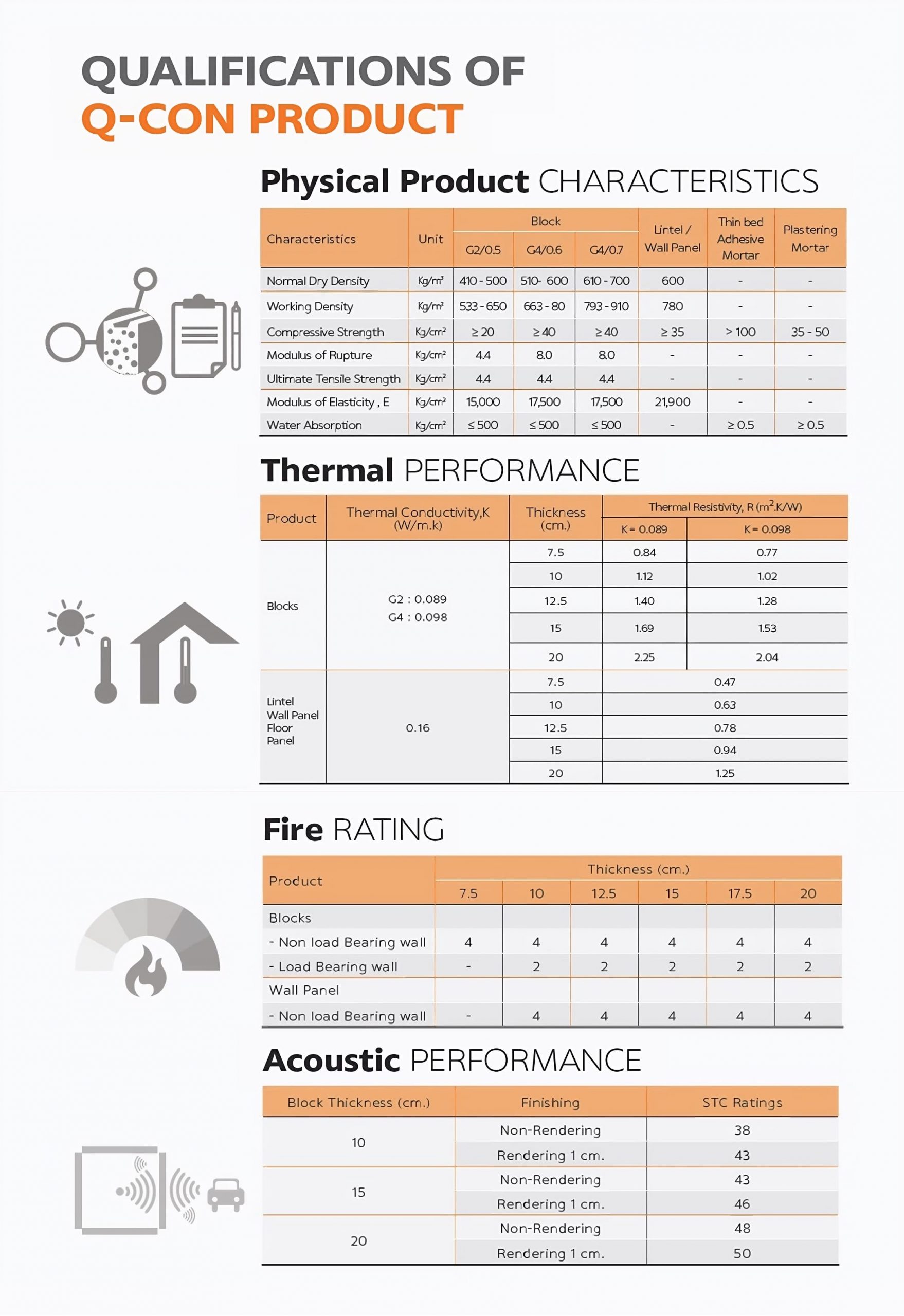

Specification & Standard

Product PropertyWall Panel Standard
Dry Density610-700 Kg/m3TIS-1505-2541
Working Density793-910 Kg/m3TIS-1505-2541
Wind Load50-180 Kg/m2
Compressive Strength> 40 Kg/m2
Water Absorption<50 %TIS-1505-2541
Fire Rating4 hrBS 476 Part 20 : 1987
Thermal Conductivity (k)0.115 W/mk
Sound Insulation (STC)38 - 43 dB
Tensile Strength > 500 N/mm2
Maximum Load306.1-400 kgTIS 1510-2541
Maximum Load per area1-66-2-17 kN/sq.m.TIS 1510-2541
Weight70 kg/m2
