Insulation Material
Sound Insulation Wall System : Thermacoustic
Excellent sound absorption property and also thermal resistance.

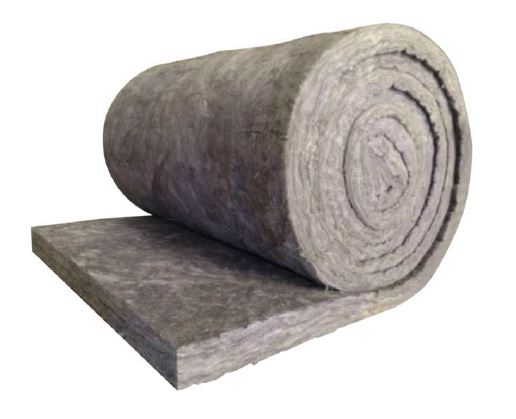

Thermacoustic (TMA) Blanket is a non-combustible, lightweight and resilient glasswool, its excellent sound insulation absorption property and also thermal resistance helps improving Sound Transmission Class (STC) rating of exterior wall and interior drywall partition and saving electricity cost.
Key Documents & Design Files
Product Option
Product Size
| Product Name | Application | Series-Colors | Thickness (mm.) | Width x Length (mm.) | Weight (kg./pc.) |
|---|---|---|---|---|---|
| Sound Insulation Wall System : Thermacoustic | Sound Insulation Wall System : Thermacoustic | Thermacoustic 50 (TMA 50) | 50 | 0.40-3, 0.60-2, 1.20x10 | 4.60 |
| Thermacoustic 75 (TMA 75) | 75 | 0.40-3, 0.60-2, 1.20x10 | 1.16 | ||
| Thermacoustic 90 (TMA 90) | 90 | 0.40-3, 0.60-2, 1.20x10 | 2.30 |
Product Information
Thermacoustic (TMA) Blanket is pre-cut to compact size so it’s easy to install and suitable for combining with metal/wood stud dry wall system, brick/concrete wall and also curtain wall system. Thermacoustic Batts is easy to install and firmly fit in wall cavity, suitable for both metal stud and wood flame. They can be cut to fit around wires, outlets, electrical conduit and plumping system.
Application Guideline
– Living room
– Home theater room
– Music room
– Meeting room
– Recording room
– Studio
– Karaoke
Specification & Standard
| Attributes | Test Value | Standard |
|---|---|---|
| Maximum Service Temperature | Can be used with the application with maximum service temperature not over 230 OC | |
| Moisture Sorption | Less than 3% by weight at 40 OC 90%RH | |
| Mold & Fungus Growth | Will not support or promote | |
| Physical Properties Fire Safety | Flame Spread < 25 Smoke Developed < 50 | ASTM E84 |
| Product | Thickness (mm) | Thermal Conductivity (W/m K) | Thermal Resistance (m2 K /W) |
|---|---|---|---|
| Thermacoustic 50 (TMA 50) | 50 | 0.04 | 1.43 |
| Thermacoustic 75 (TMA 75) | 75 | 0.04 | 2.14 |
| Thermacoustic 90 (TMA 90) | 90 | 0.04 | 2.57 |
