Insulation Material
Cylence Zandera
SCG Acoustic for decorative wall panel
SCG Acoustic Insulation is great Sound absorption. It is designed to easily apply to many types of wall with adhesive and suitable for many types of room with your own designs such as living room, home theater room, music room, meeting room, recording studio room, karaoke, etc.
Key Documents & Design Files
Previous slide
Next slide

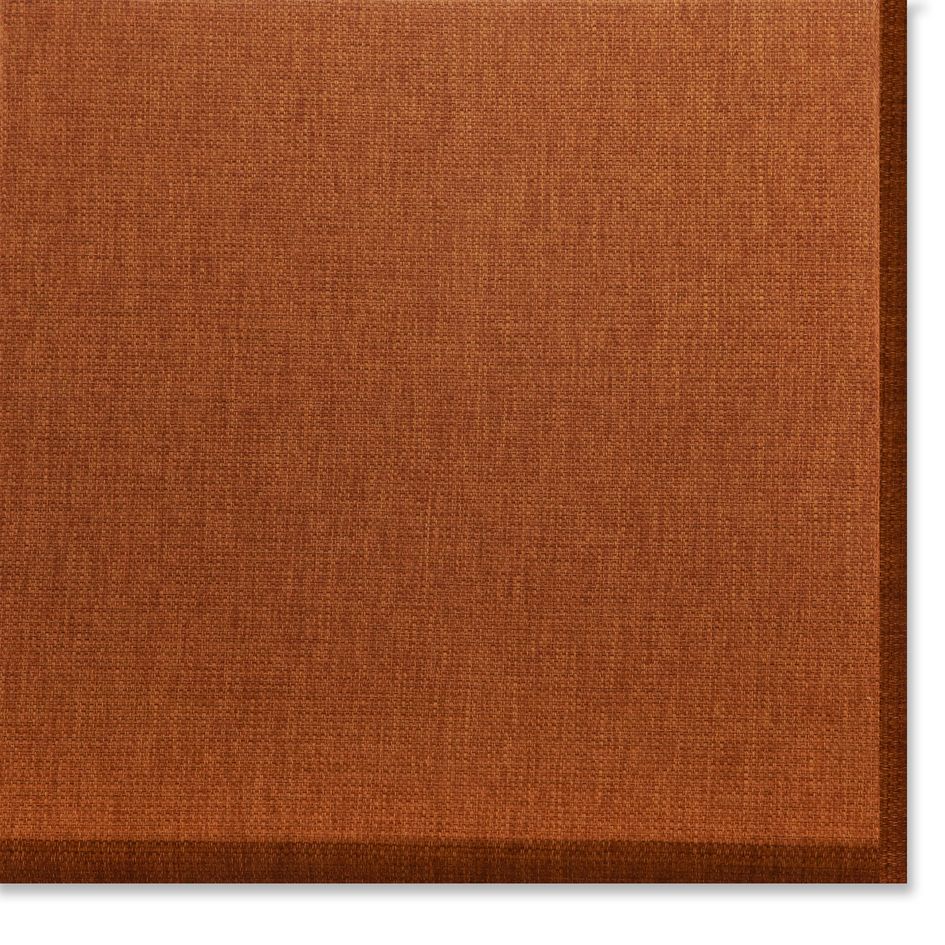

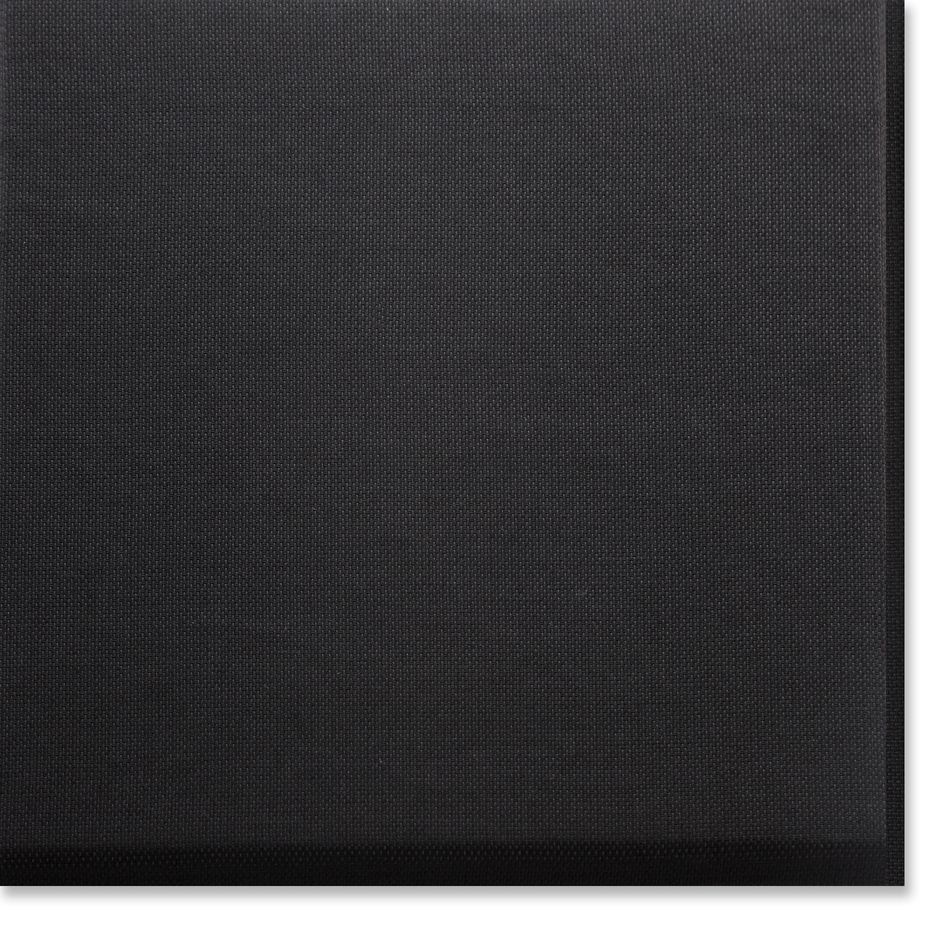

Product Option
Product Size
| Product Name | Application | Series-Colors | Thickness (mm.) | Width x Length (mm.) | Installation System | Weight (kg./pc.) |
|---|---|---|---|---|---|---|
| SCG Acoustic for decorative wall panel : Cylence Zandera | Interior Wall : Sound absorption for decorative wall panel | Standard | 25 | 1.20 x 1.20 | Sound absorption for decorative wall panel | 4.6 |
| SCG Acoustic for decorative wall panel : Cylence Zandera | Interior Wall : Sound absorption for decorative wall panel | Standard | 25 | 0.60 x 0.60 | Sound absorption for decorative wall panel | 1.16 |
| SCG Acoustic for decorative wall panel : Cylence Zandera | Interior Wall : Sound absorption for decorative wall panel | Standard | 25 | 0.60 x 1.20 | Sound absorption for decorative wall panel | 2.30 |
| SCG Acoustic for decorative wall panel : Cylence Zandera | Interior Wall : Sound absorption for decorative wall panel | Standard | 25 | 0.30 x 0.30 | Sound absorption for decorative wall panel | 0.31 |
| SCG Acoustic for decorative wall panel : Cylence Zandera | Interior Wall : Sound absorption for decorative wall panel | Standard | 25 | 0.30 x 0.60 | Sound absorption for decorative wall panel | 0.60 |
| SCG Acoustic for decorative wall panel : Cylence Zandera | Interior Wall : Sound absorption for decorative wall panel | Standard | 25 | 0.20 x 0.30 | Sound absorption for decorative wall panel | 0.20 |
| SCG Acoustic for decorative wall panel : Cylence Zandera | Interior Wall : Sound absorption for decorative wall panel | Standard | 25 | 0.20 x 0.60 | Sound absorption for decorative wall panel | 0.39 |
| SCG Acoustic for decorative wall panel : Cylence Zandera | Interior Wall : Sound absorption for decorative wall panel | Standard | 25 | 0.10 x 0.30 | Sound absorption for decorative wall panel | 0.11 |
| SCG Acoustic for decorative wall panel : Cylence Zandera | Interior Wall : Sound absorption for decorative wall panel | Standard | 25 | 0.10 x 0.60 | Sound absorption for decorative wall panel | 0.21 |
Special Property

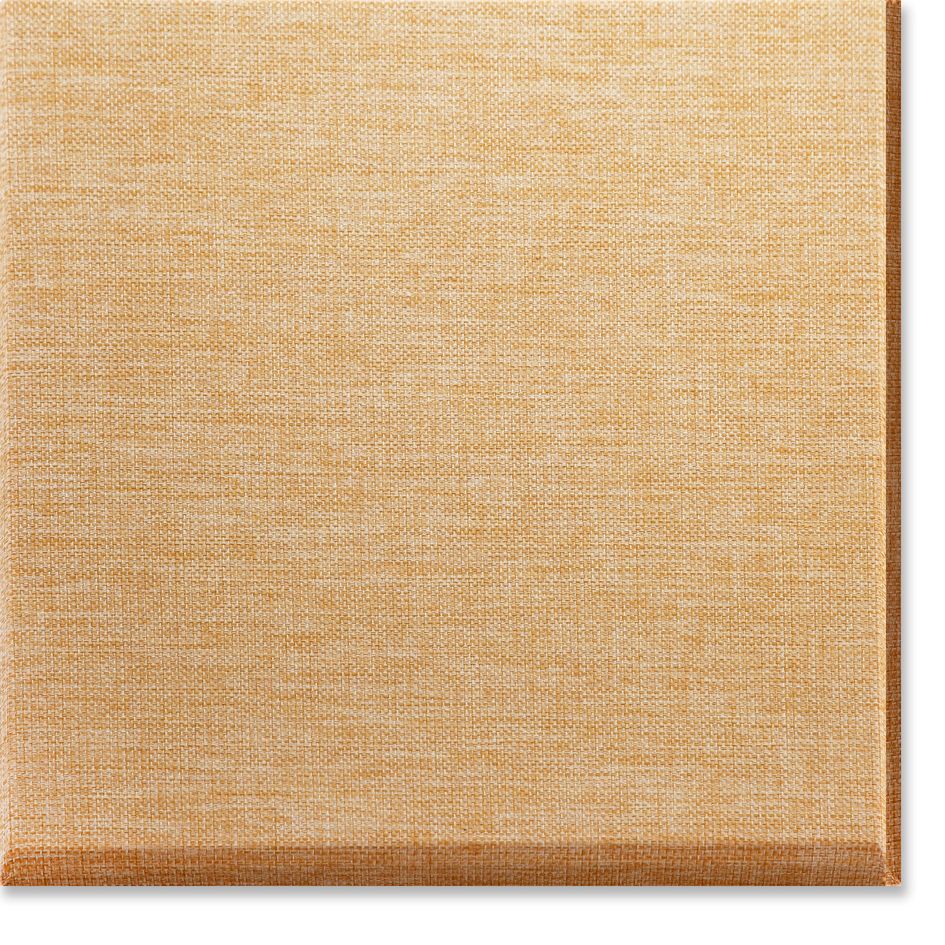

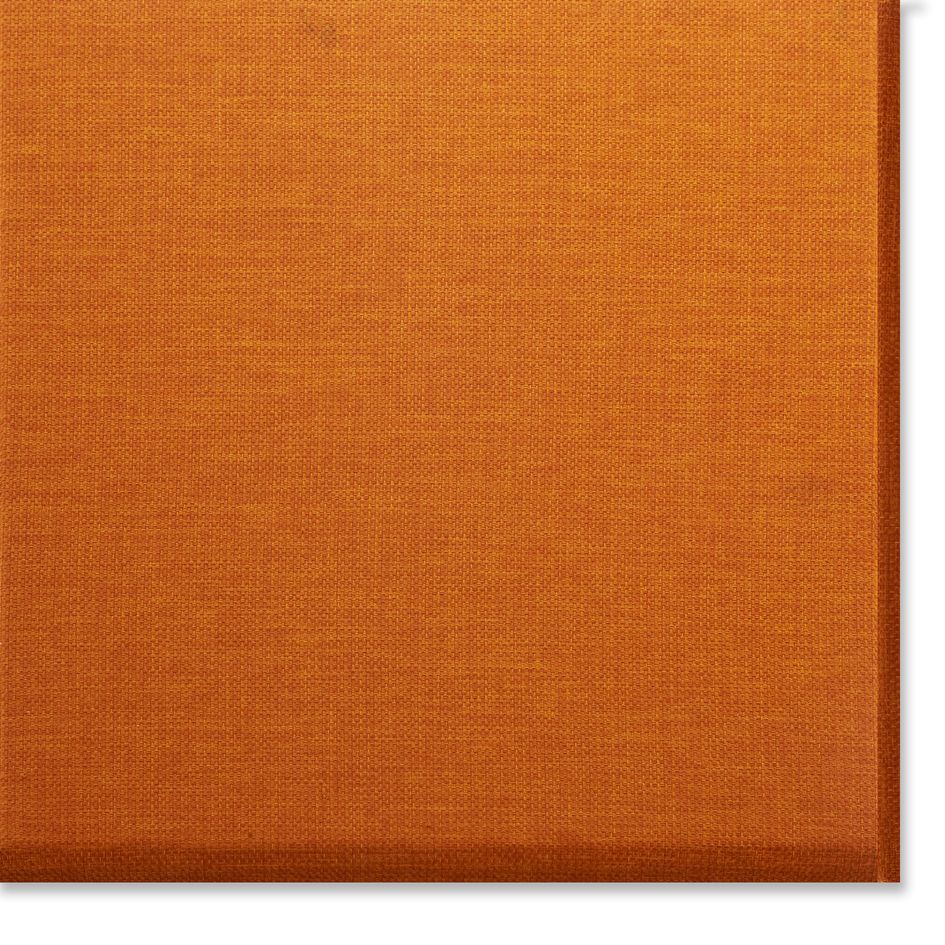

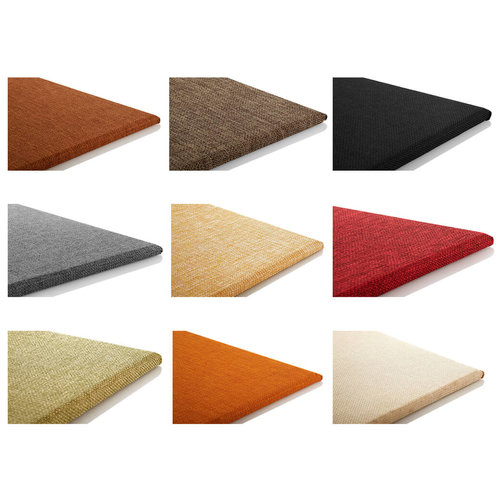

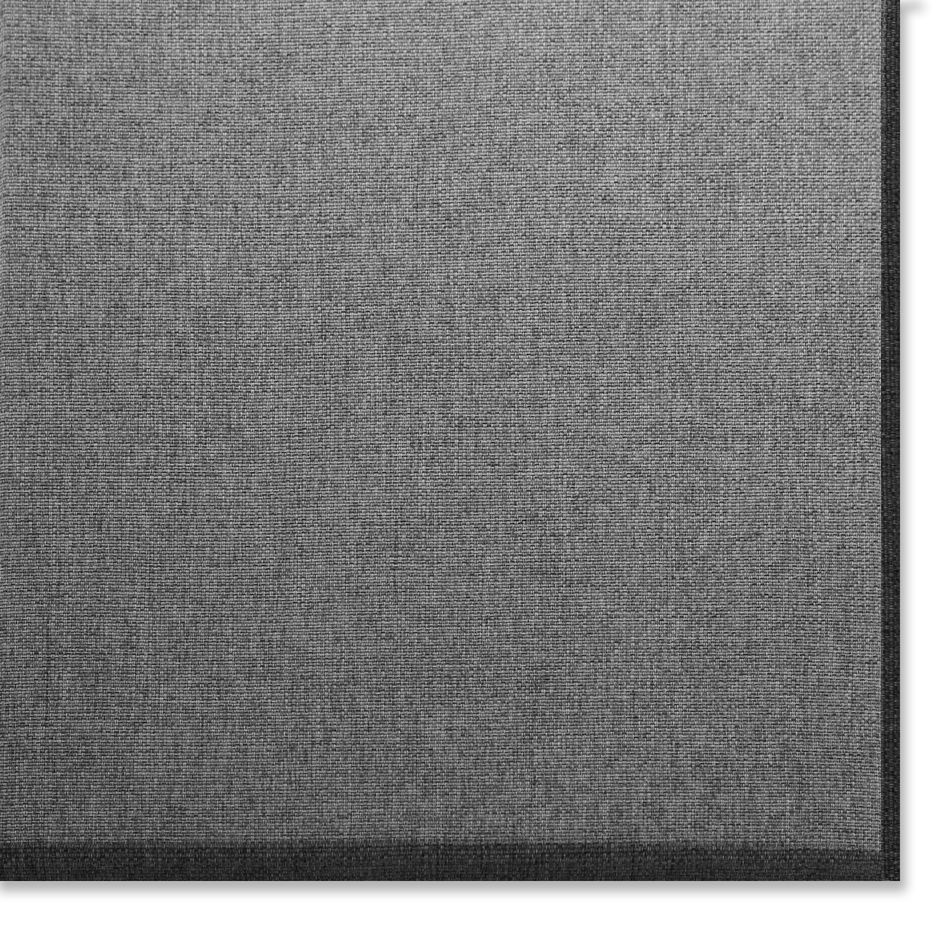

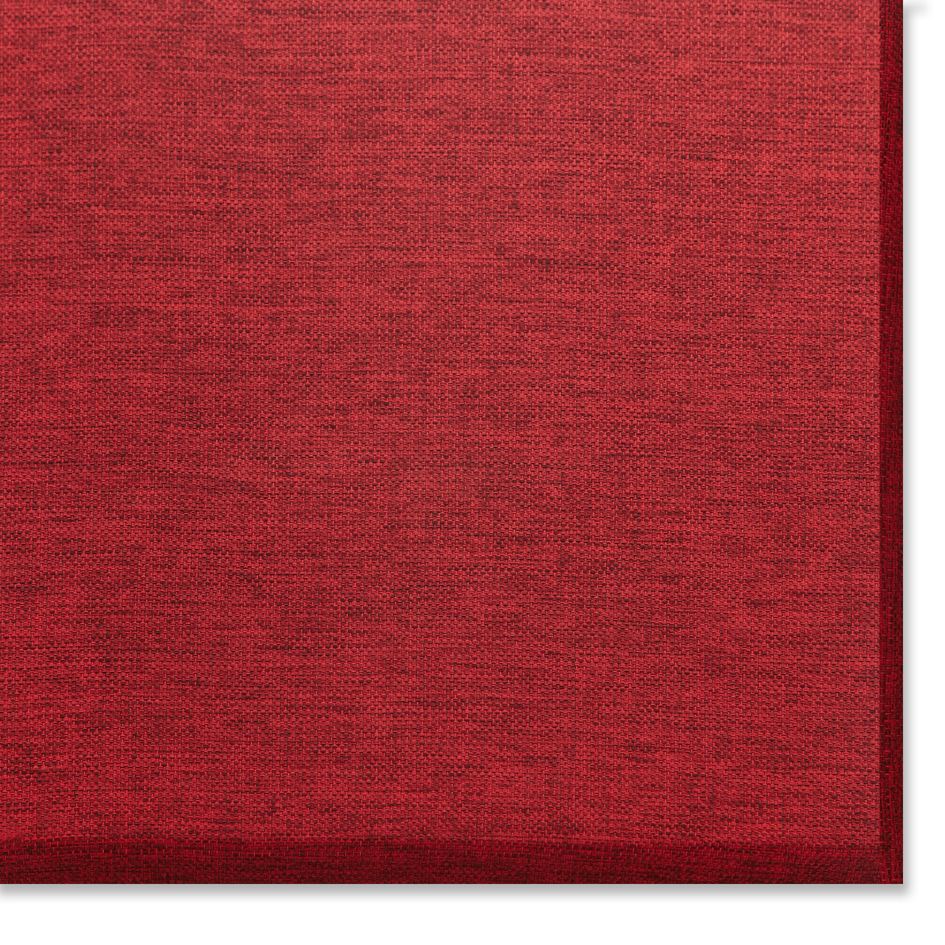

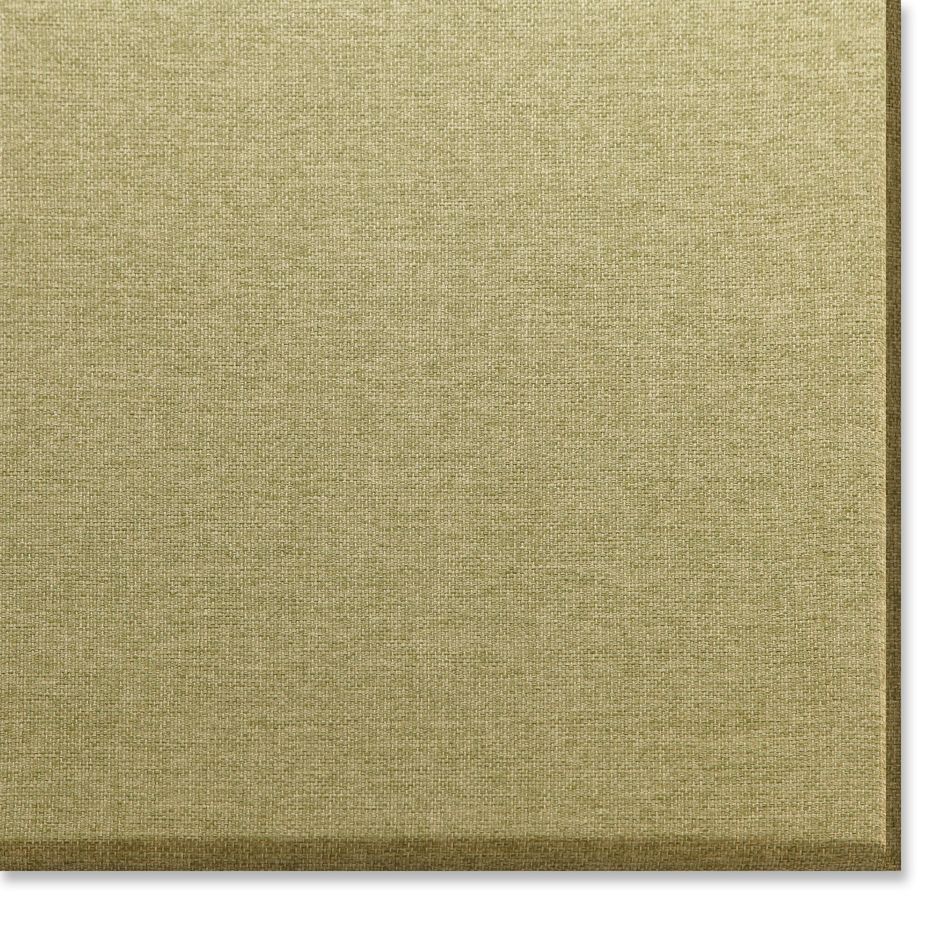

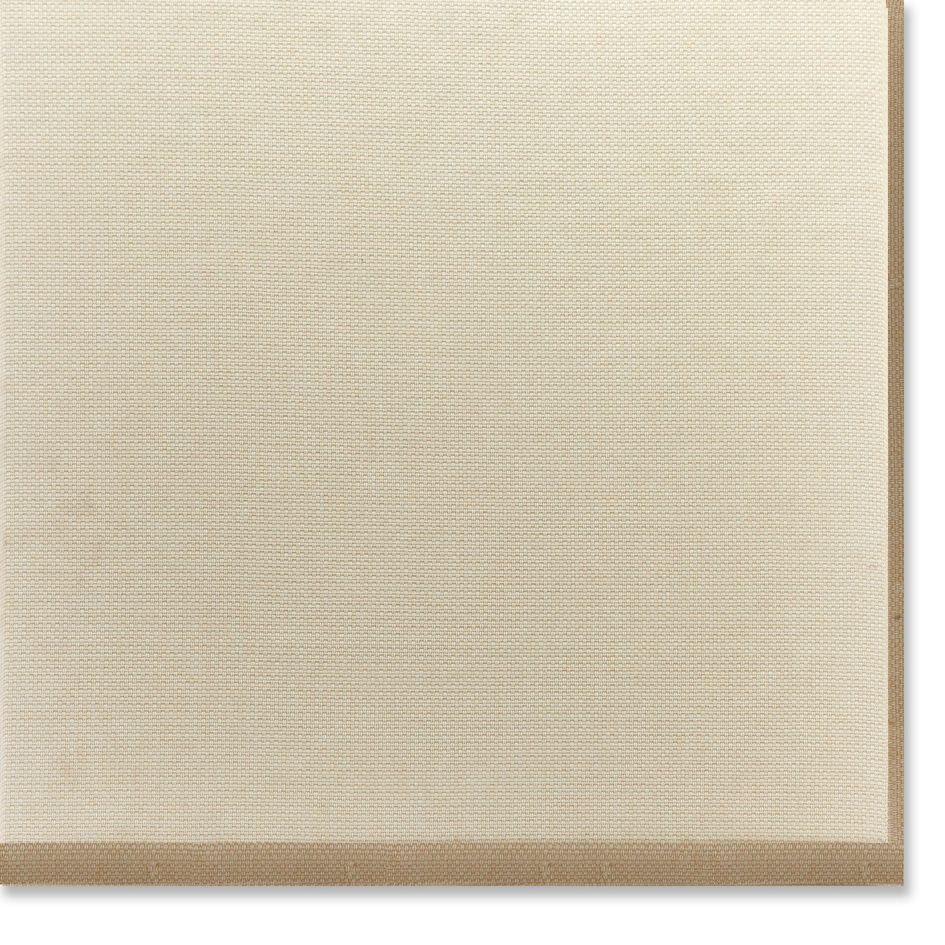

SCG Acoustic Insulation for decorative wall panel : CylenceTM ZanderaTM is non-combustible glasswool super rigid board, laminated with white glass tissue, 4-edges coated, with special polymeric substance and wrapped with various colors of decorative cloth. CylenceTM ZanderaTM performs excellent sound absorption and reduces sound reverberation in the room. It is designed to easily apply to many types of wall with adhesive and suitable for many types of room with your own designs such as living room, home theater room, music room, meeting room, recording studio room, karaoke, etc.
Cylence Zandera : Acoustic for decorative wall panel
Special Properties
Excellent Sound Absorption
NRC = 0.70 (Noise Reduction Coefficient) SCG Acoustic for Ceiling Tile : CylenceTM WonderyTM offers an excellent performance with NRC up to 0.70 in accordance with ASTM C423. Instead of bouncing sound like other hard surface ceiling board, SCG Acoustic for Ceiling Tile : CylenceTM WonderyTM helps reducing reverberant noise and creates a peaceful atmosphere in the room.
No sagging or Warping
SCG Acoustic for Ceiling Tile : CylenceTM WonderyTM is made from glasswool which has good moisture resistance and shape consistency so it will not sag and warp even in the heat and high humidity condition. SCG Acoustic for ceiling absorption : CylenceTM WonderyTM will maintain their good appearance after installation and keep beautiful feature in overtime.
Elegance
SCG Acoustic for Ceiling Tile : CylenceTM WonderyTM is faced with attractive white texture painted facing so it gives you more fashionable and comfortable visual feeling.
Moisture Control
SCG Acoustic for Ceiling Tile : CylenceTM WonderyTM repel water and moisture which help prolonging performance.
Application Guideline
– living room
– home theater room
– music room
– meeting room
– recording room
– Studio

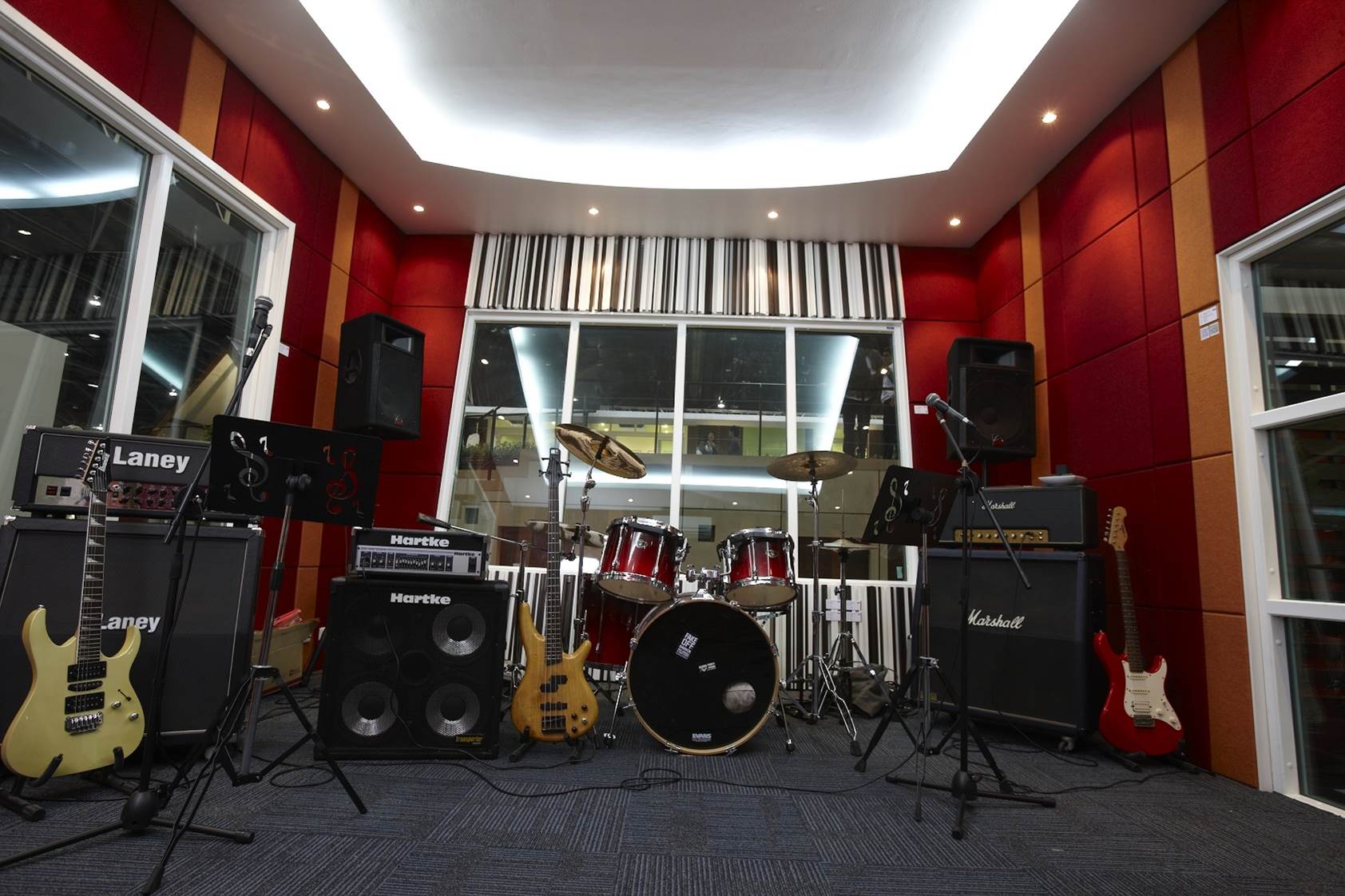

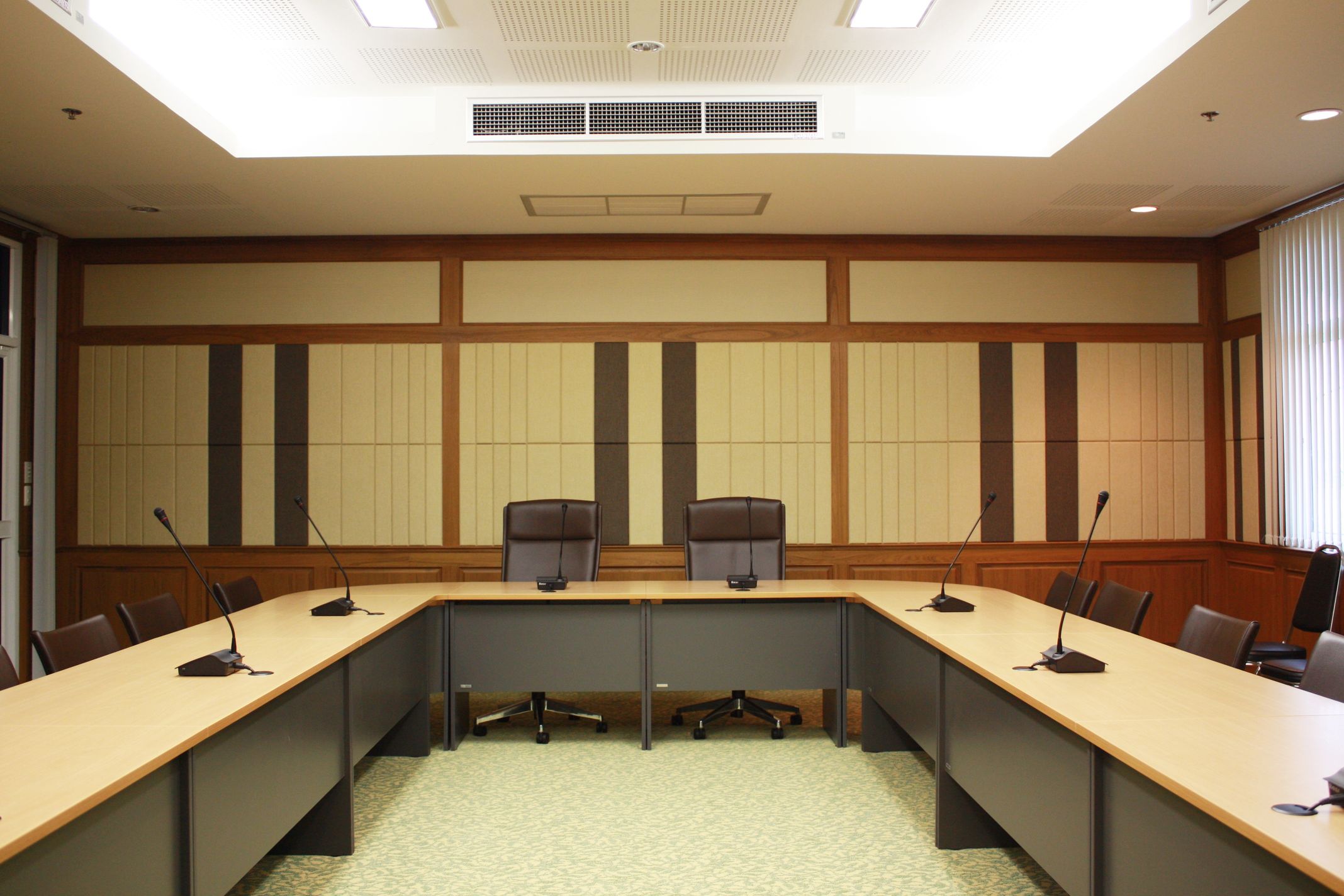

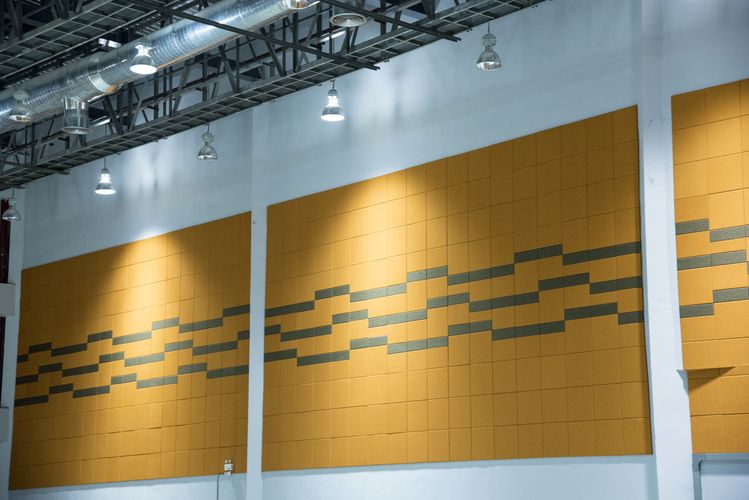

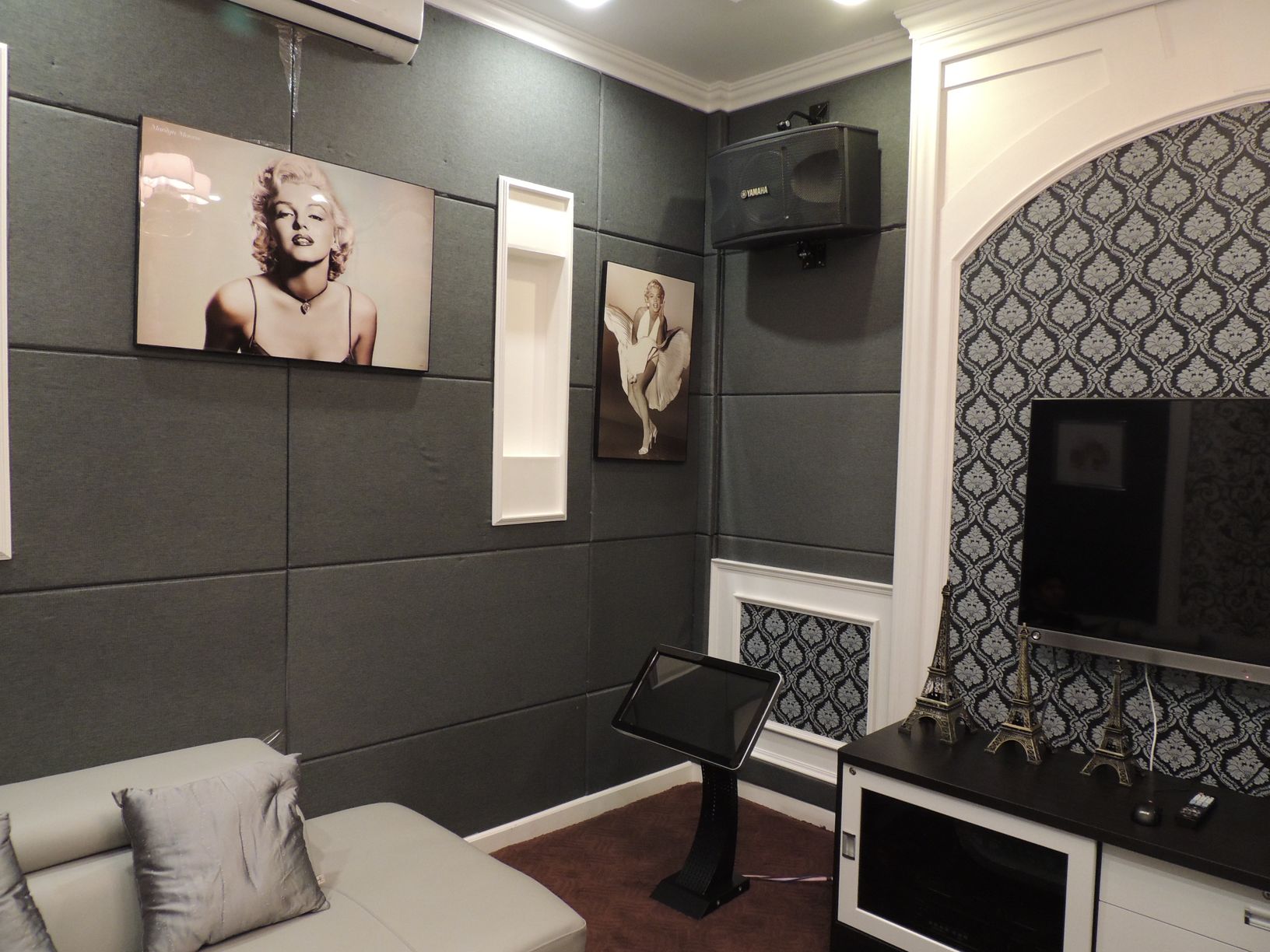

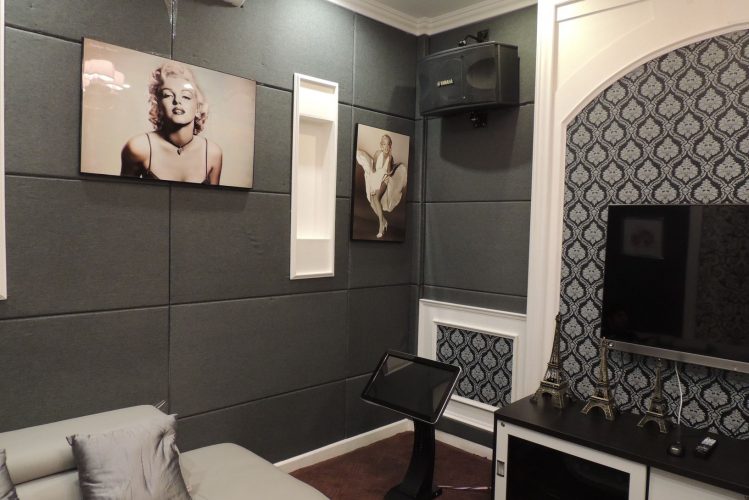

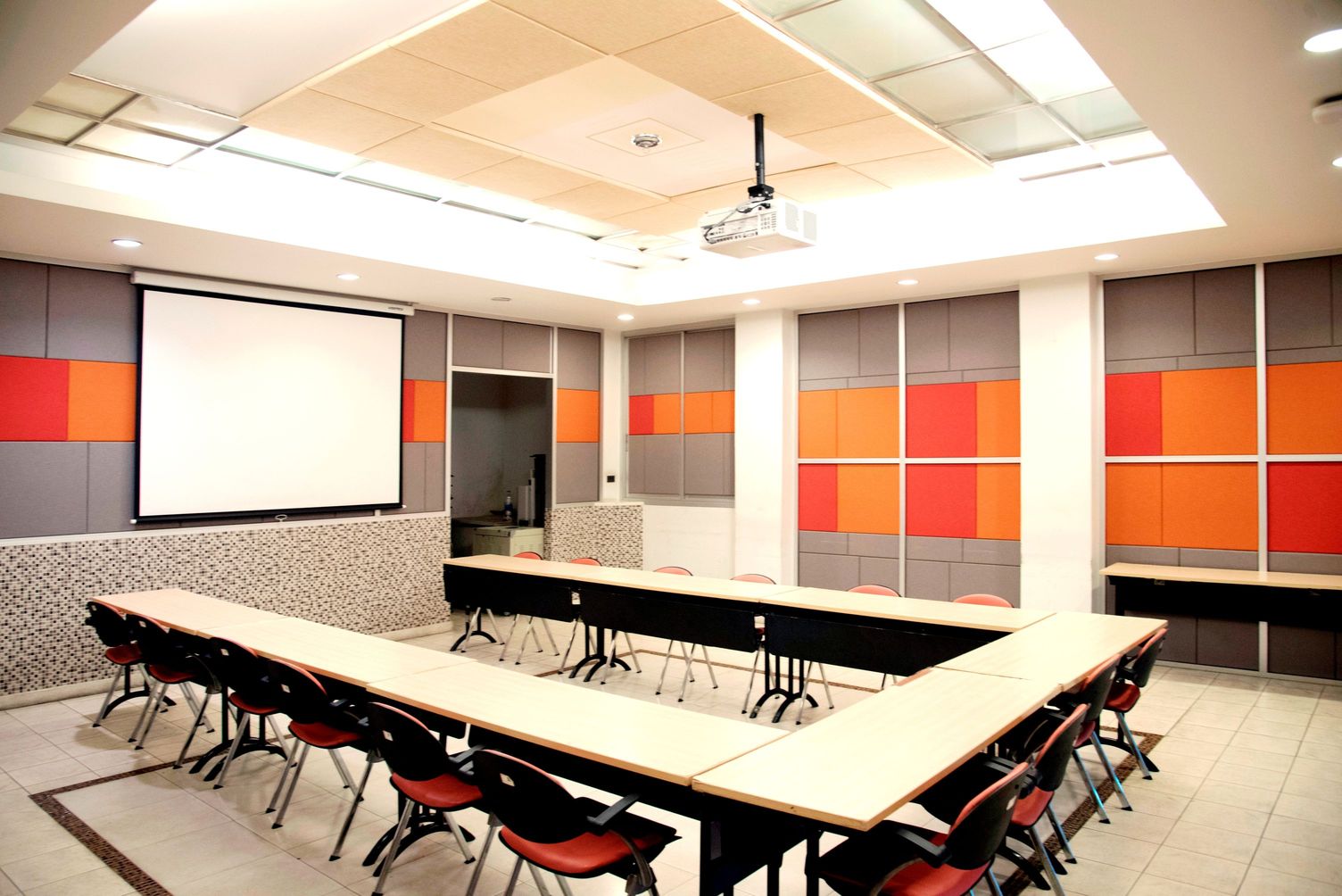

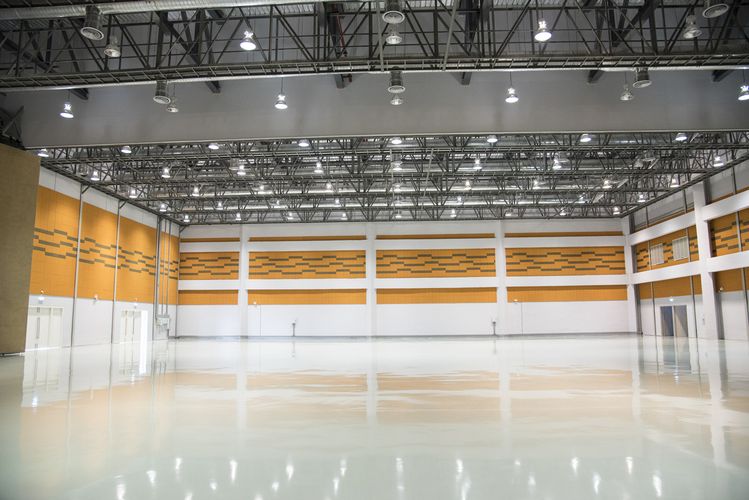

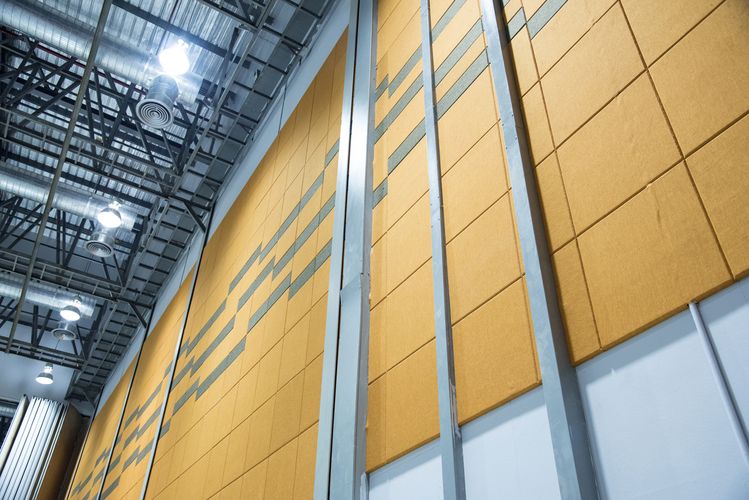

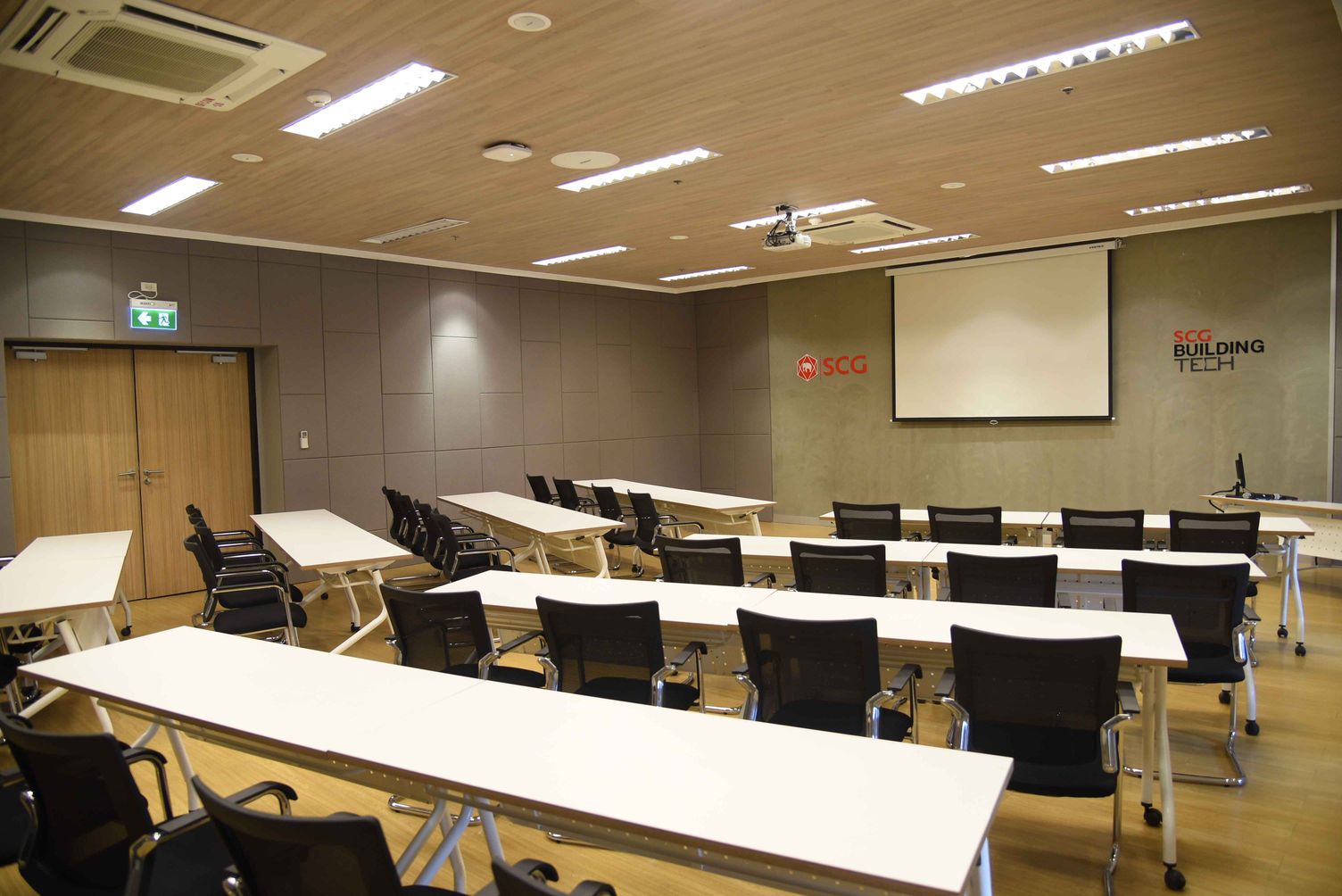

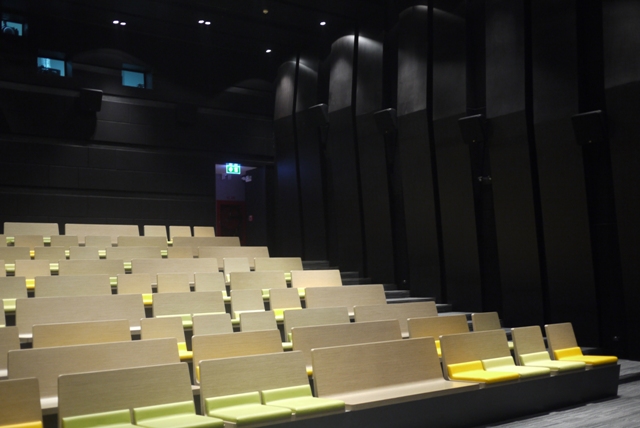

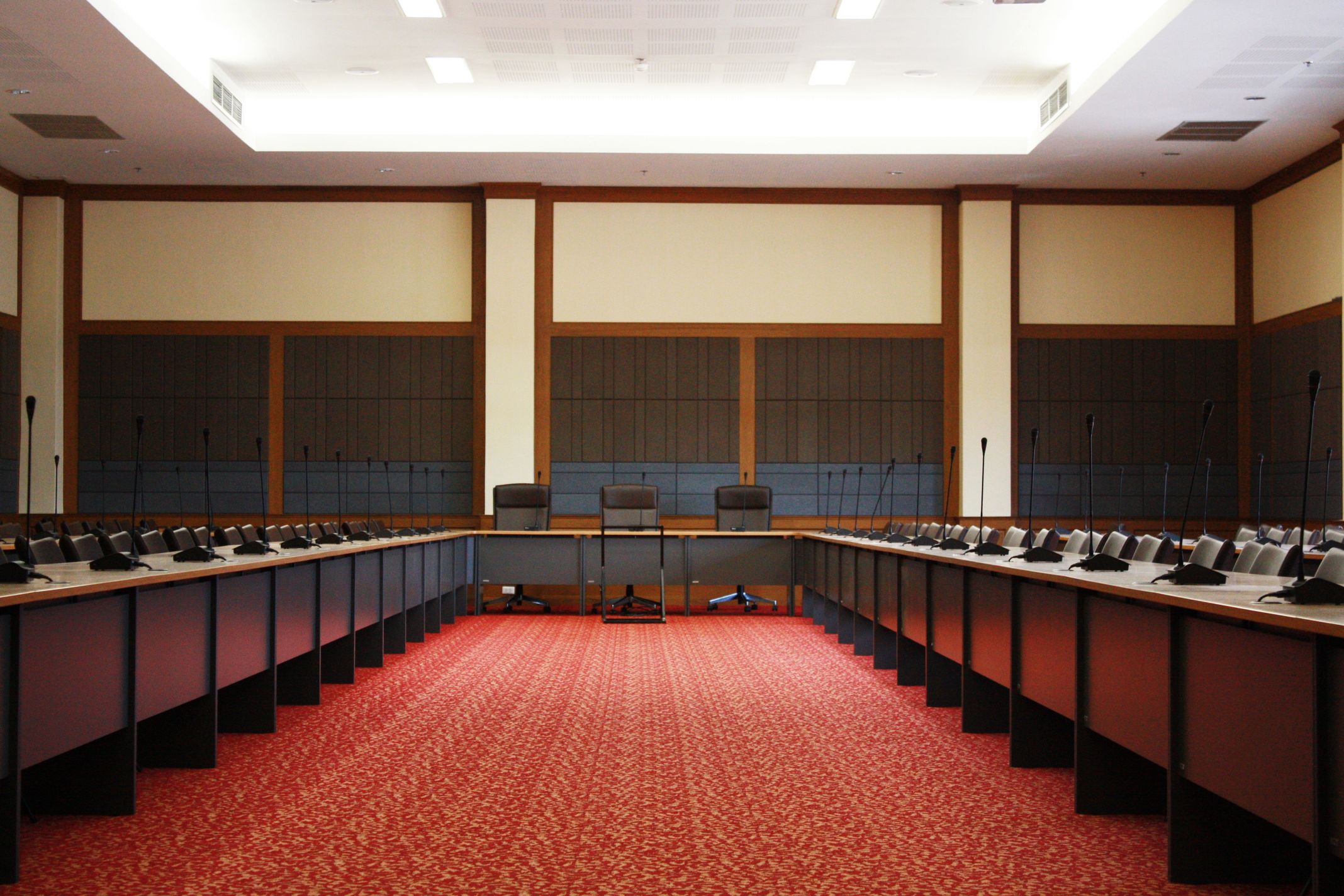

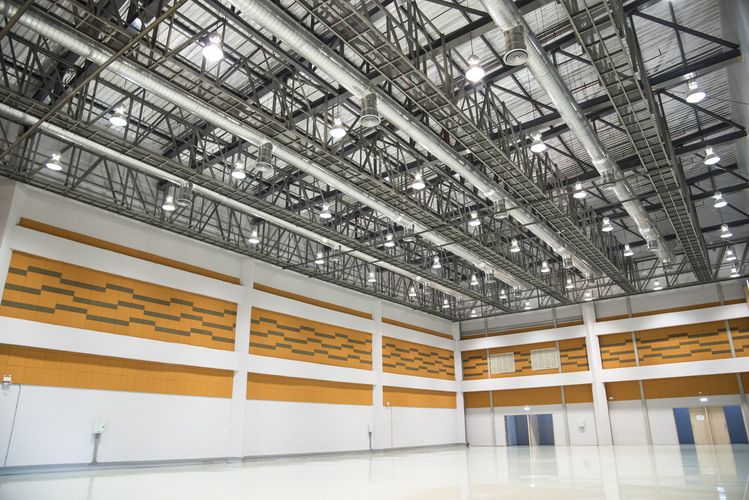

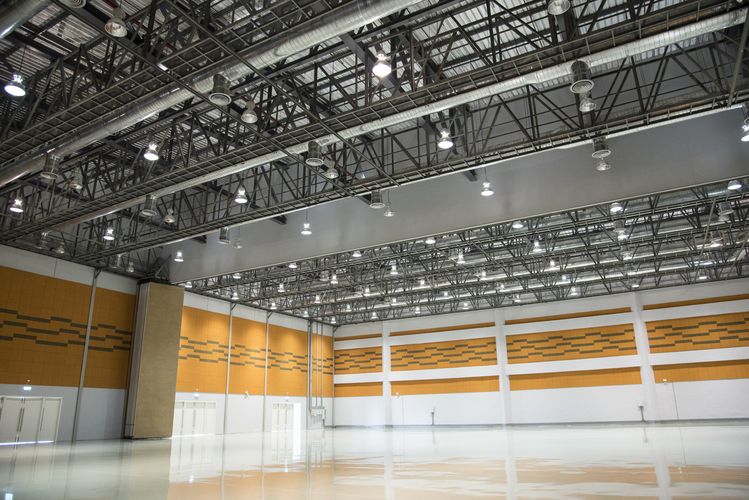

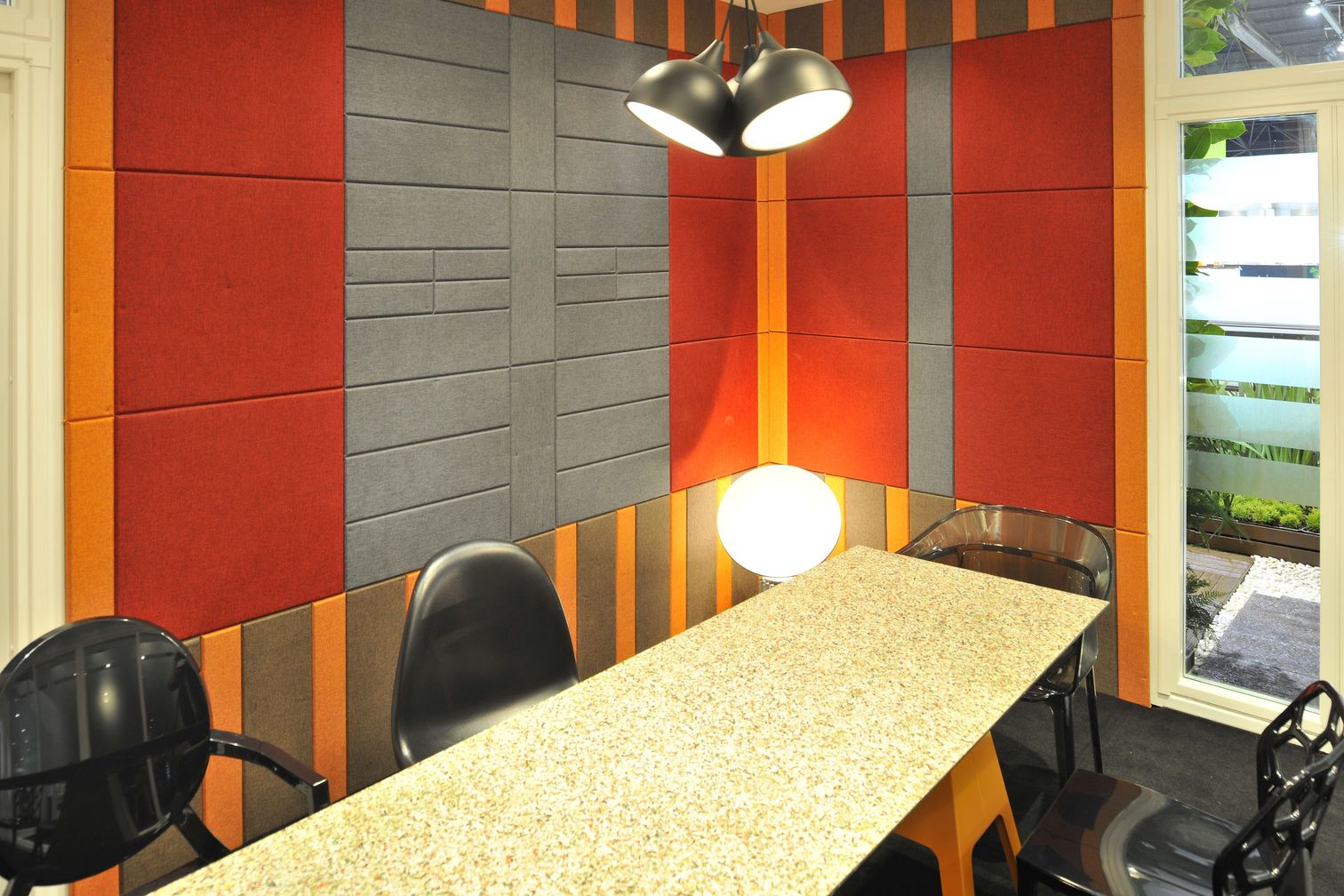

Application Example
Specification & Standard
| Product | Thickness (mm) | Sound Absorption Coefficient (SAC) at 1/3 octave band center frequencies Hz. (ASTM C 423) | NRC | |||||
|---|---|---|---|---|---|---|---|---|
| SCG Acoustic for Ceiling Tile : CylenceTM WonderyTM | 20 | 125 | 250 | 500 | 1000 | 2000 | 4000 | 0.75 |
| 0.10 | 0.45 | 0.86 | 0.94 | 0.84 | 0.81 | |||
Installation
