Acrylic Roof
Shinkolite Acrylic Roof
Better Transparency Living
Shinkolite premium transparent acrylic roof is developed under the cooperation between SCG Chemicals and Mitsubishi Chemical Corporation. There are 2 grades of general and heat cut to answer the residents’ preference in accordance to the true new lifestyle living.
Key Documents & Design Files
  Product Catalog
  Installation Guide
Previous
Next
Heat Cut Grade
Help blocking more than 50% of Infrared light which results in energy saving and cooler more comfortable feeling when staying under the heat cut grade premium transparent acrylic roof
Heat Cut
Blocking more than 50% of Infrared light which results in energy saving and cooler.
Beautiful Scenery
Glossy Surface, Clear, Modern and Beautiful Appearance
Long Lasting
Durable with over 10 year usage without the problems of flakes, cracks and yellow stains
Lighter Weight
lighter than glass and able to resist 2.5 times impact more than safety glass

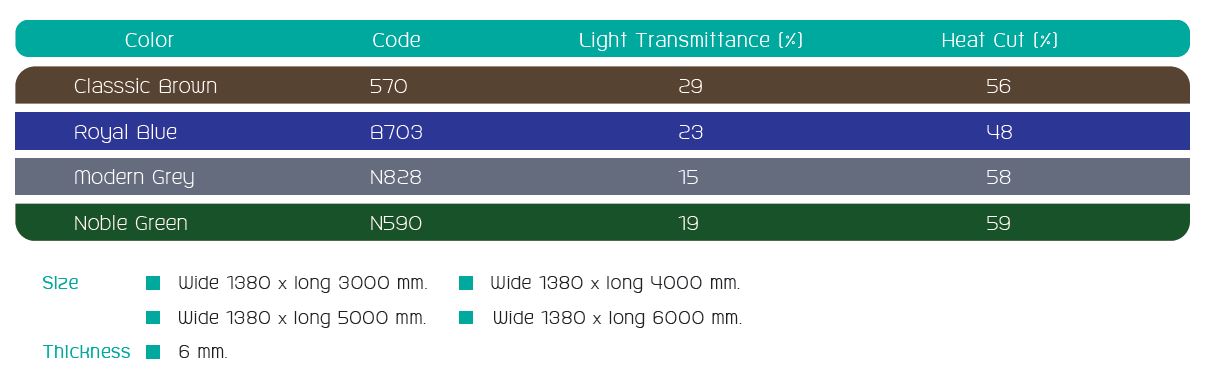

Heat Cut Grade : Product Option

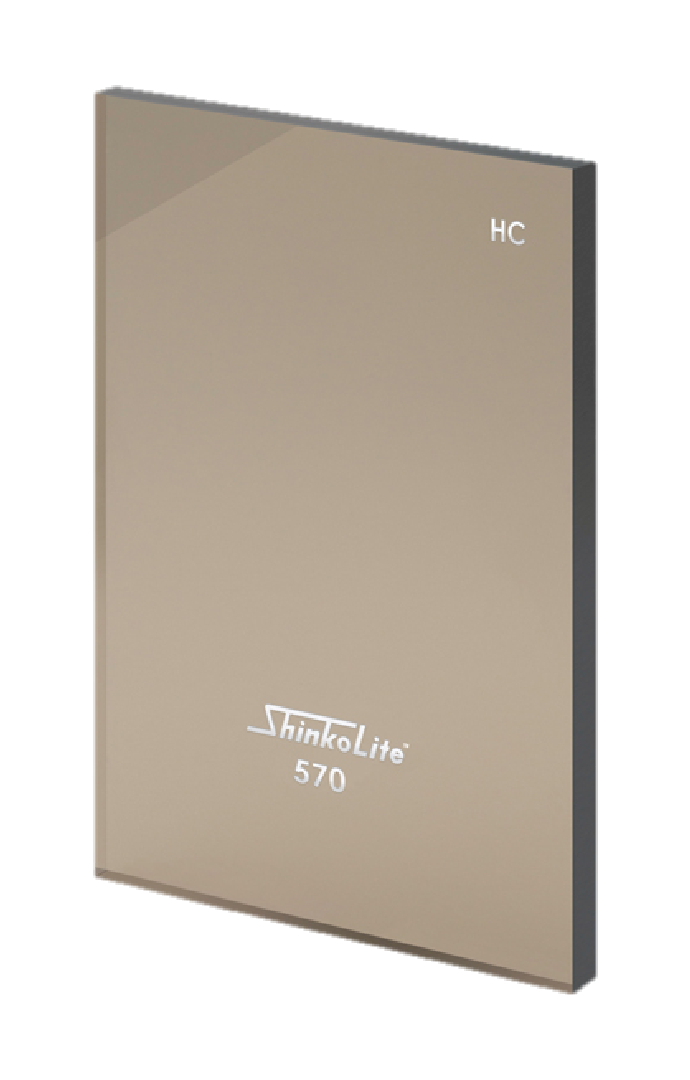

Classic Brown
Code: 570
Size :
• 1380x3000mm.
• 1380x4000mm.
• 1380x5000mm.
• 1380x6000mm.
Thickness : 6 mm.
Span : 50 cm.
Light Transmission : 29%
Heat Cut : 56%

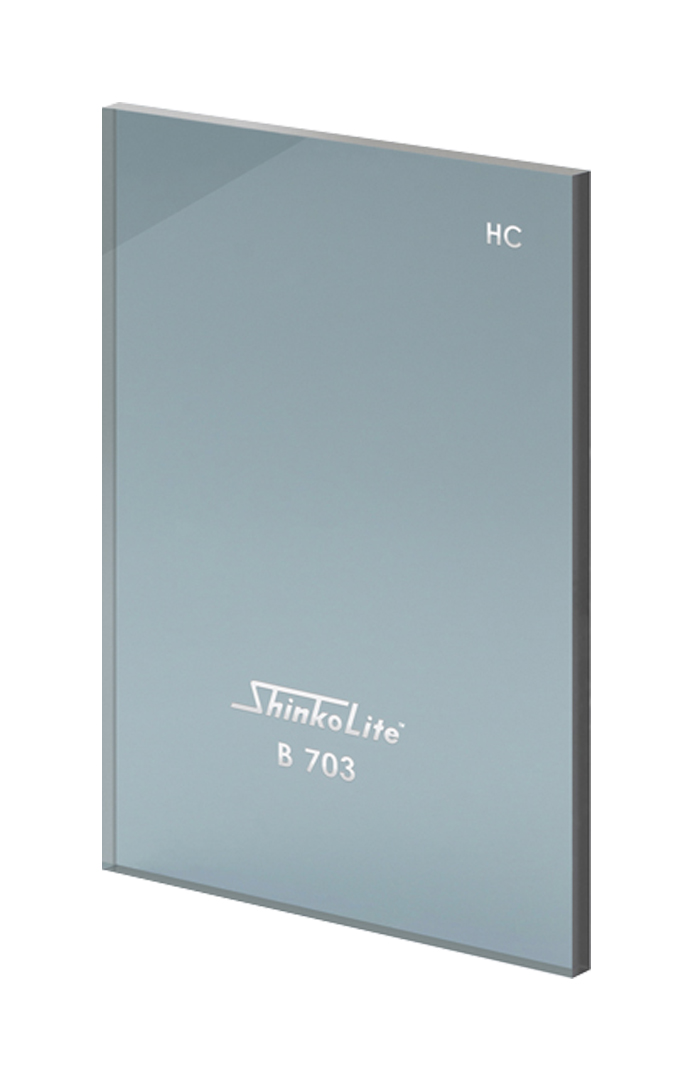

Royal Blue
Code: B703
Size :
• 1380x3000mm.
• 1380x4000mm.
• 1380x5000mm.
• 1380x6000mm.
Thickness : 6 mm.
Span : 50 cm.
Light Transmission : 23%
Heat Cut : 48%
Modern Grey
Code: N828
Size :
• 1380x3000mm.
• 1380x4000mm.
• 1380x5000mm.
• 1380x6000mm.
Thickness : 6 mm.
Span : 50 cm.
Light Transmission : 15%
Heat Cut : 58%

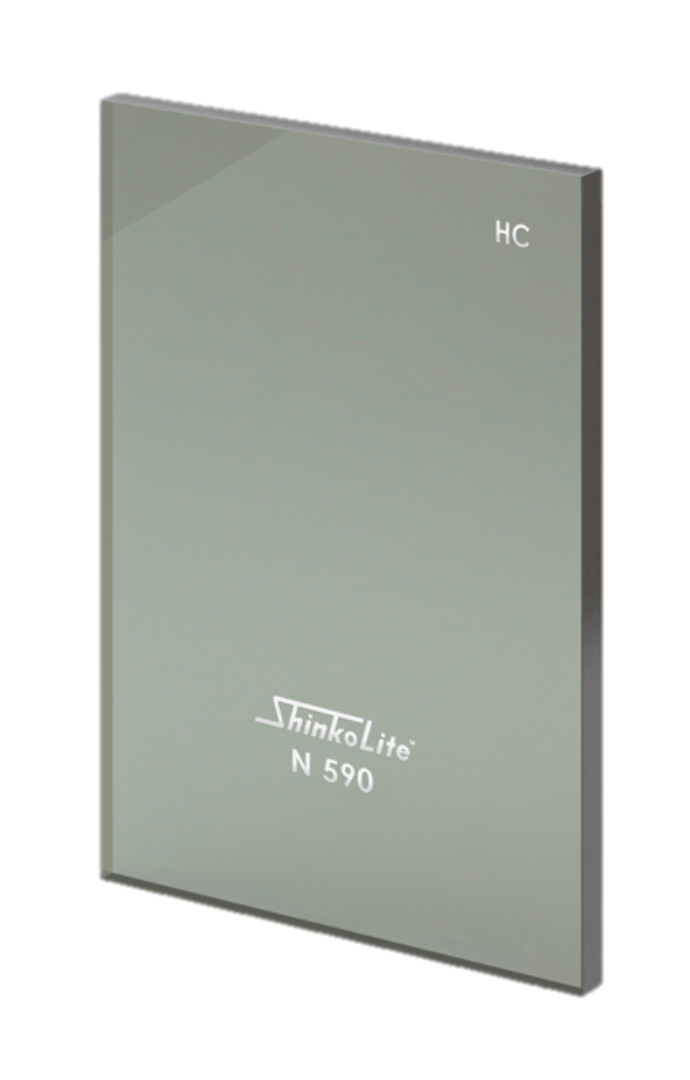

Color : Noble Green
Code: N590
Size :
• 1380x3000mm.
• 1380x4000mm.
• 1380x5000mm.
• 1380x6000mm.
Thickness : 6 mm.
Span : 50 cm.
Light Transmission : 19%
Heat Cut : 59%
General Grade
The General grade of Shinkolite premium transparent acrylic roof comes with beautiful design. It gives a clear modern comfortable appearance that is worth using to your translucent area.
Beautiful Scenery
Glossy Surface, Clear, Modern and Beautiful Appearance
Long Lasting
Durable with over 10 year usage without the problems of flakes, cracks and yellow stains
Heat Cut
Filtering the amount of sunlight and blocking UV light
Lighter Weight
lighter than glass and able to resist 2.5 times impact more than safety glass

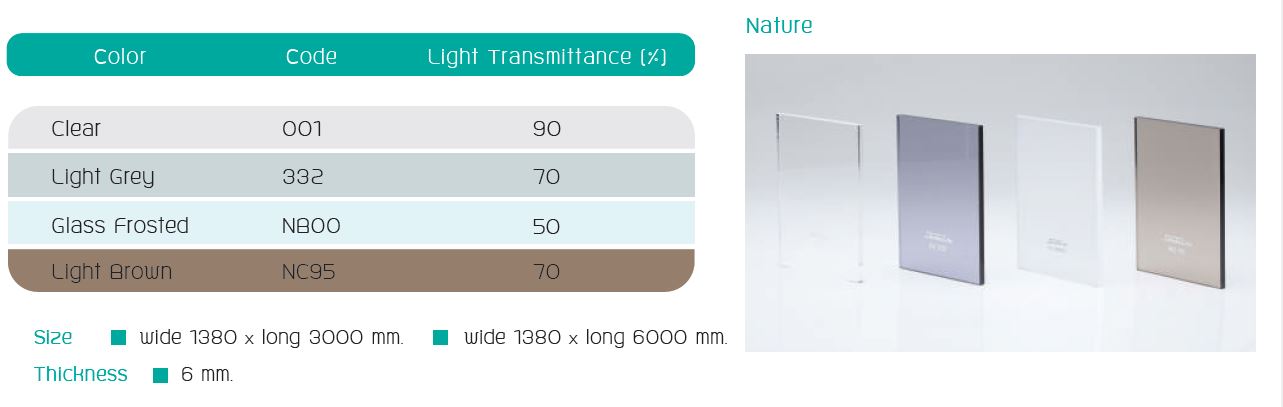

General Grade : Product Option

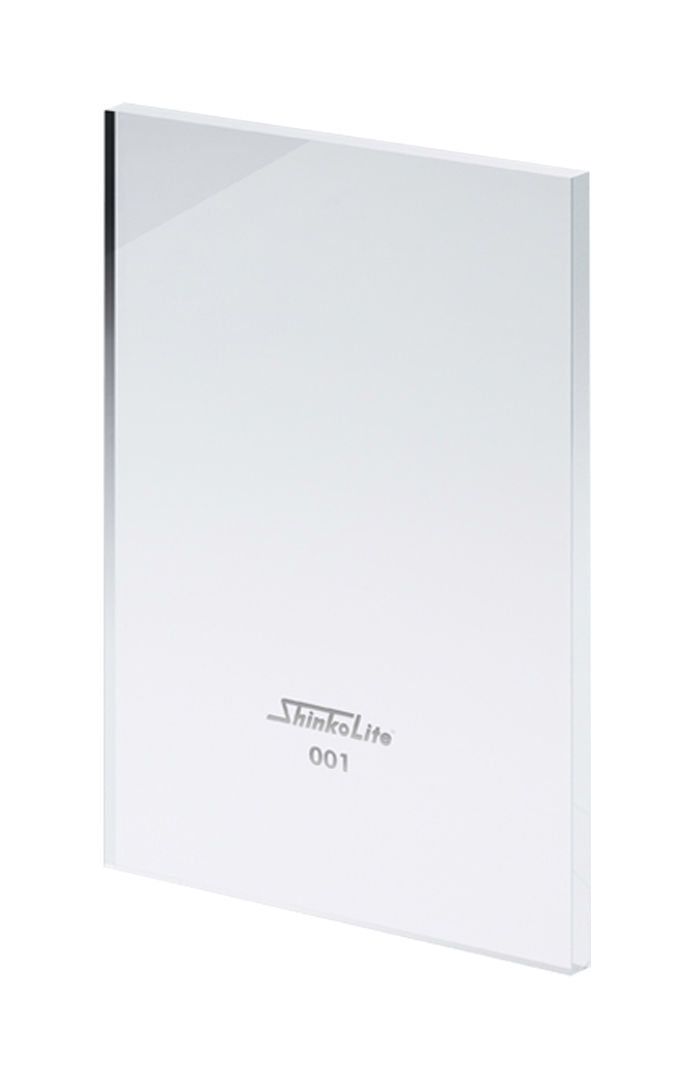

Clear
Code: 001
Size :
• 1380x3000mm.
• 1380x6000mm.
Thickness : 6 mm.
Span : 50 cm.
Light Transmission : 90%
Light Grey
Code: DX332
Size :
• 1380x3000mm.
• 1380x6000mm.
Thickness : 6 mm.
Span : 50 cm.
Light Transmission : 70%

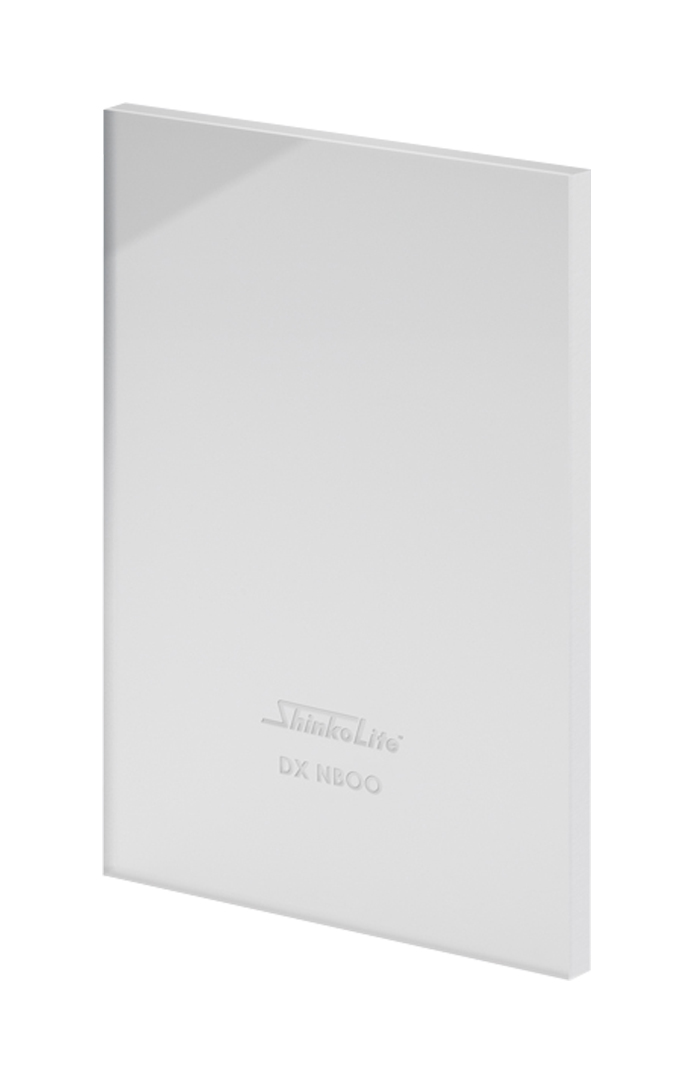

Glass Frosted
Code: NB00
Size :
• 1380x3000mm.
• 1380x6000mm.
Thickness : 6 mm.
Span : 50 cm.
Light Transmission : 50%

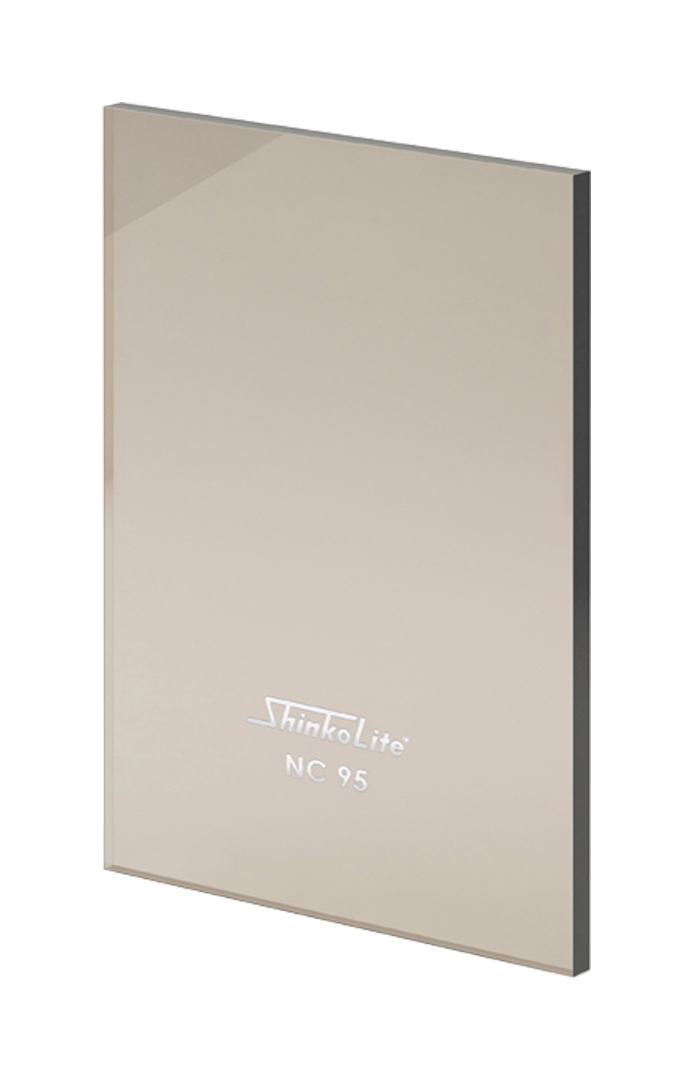

Light Brown
Code: NC95
Size :
• 1380x3000mm.
• 1380x6000mm.
Thickness : 6 mm.
Span : 50 cm.
Light Transmission : 70%
Special Property
About Shinkolite Roof
Shinkolite premium transparent acrylic roof is developed under the cooperation between SCG Chemicals and Mitsubishi Rayon Japan. There are 2 grades of general and heat cut to answer the residents’ preference in accordance to the true new lifestyle living. Due to a transparent material, residents will feel as if they live close to nature. Moreover, it provides comfort thanks to its special protection feature from the sun’s radiant heat by blocking 50 % of Infrared or about 5 degrees * in heat cut grade.
Heat cut Grade
Help blocking more than 50% of Infrared light which results in energy saving and cooler more comfortable feeling when staying under the heat cut grade premium transparent acrylic roof
• Glossy Surface, Clear, Modern and Beautiful Appearance
• Durable with over 10 year usage without the problems of flakes, cracks and yellow stains
• Half the weight lighter than glass and able to resist 2.5 times impact more than safety glass/ 10 times more for regular glass
General Grade
• Glossy Surface, Clear, Modern and Beautiful Appearance
• Durable with over 10 year usage without flaking, crack and yellow stain problems
• Filtering the amount of sunlight and blocking UV light
• Half the weight lighter than glass and able to resist 2.5 times impact more than safety glass/ 10 times more for regular glass
Application Guideline

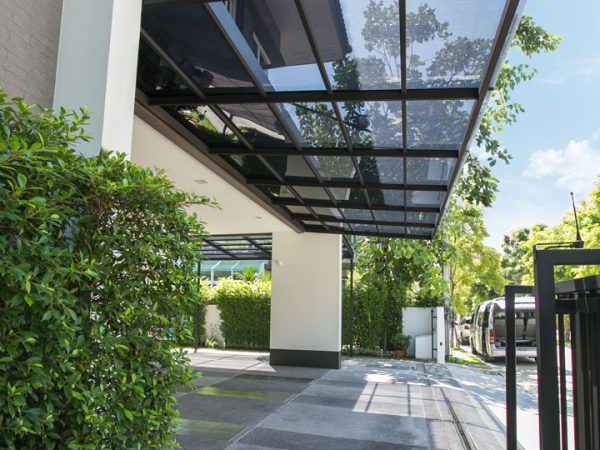

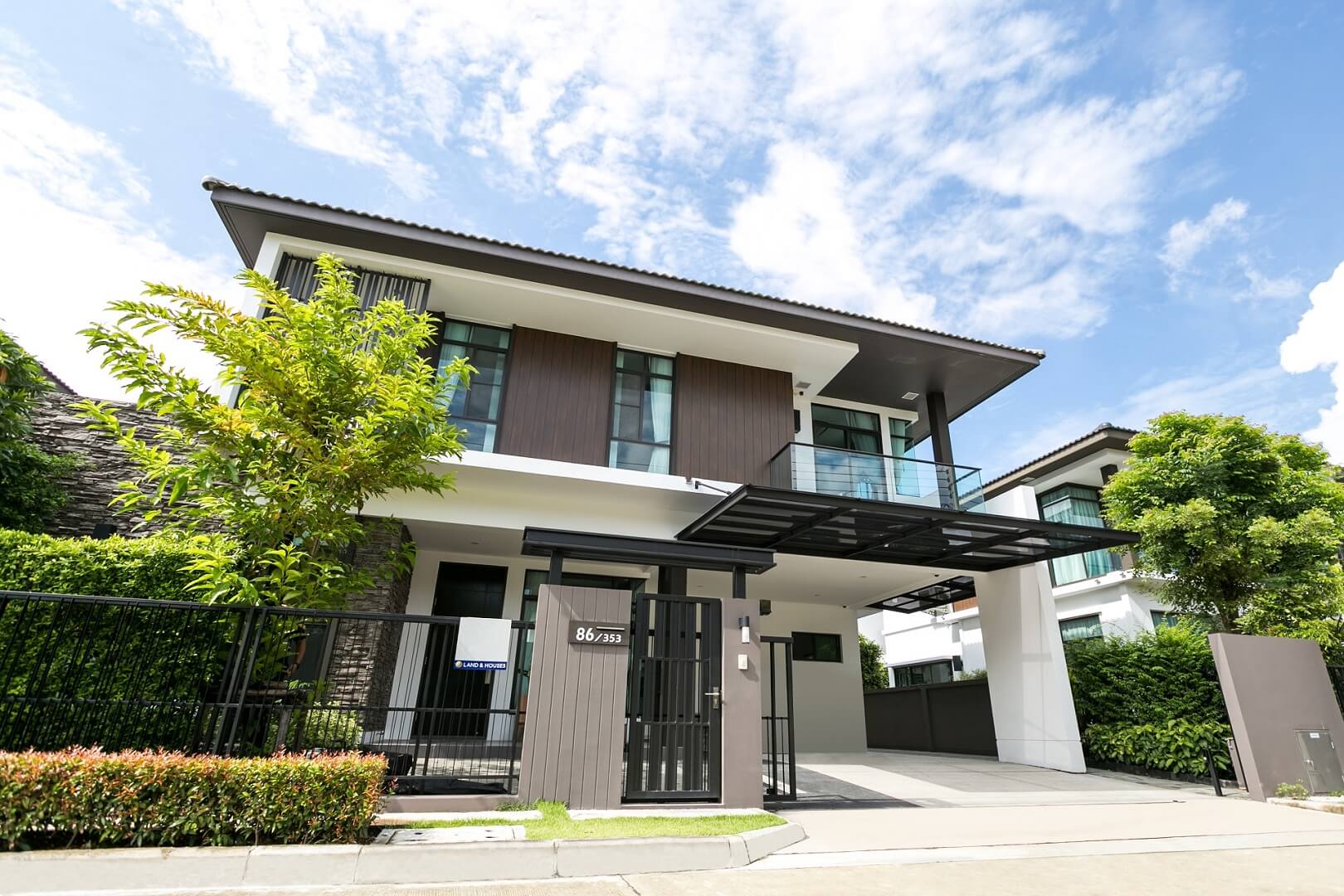

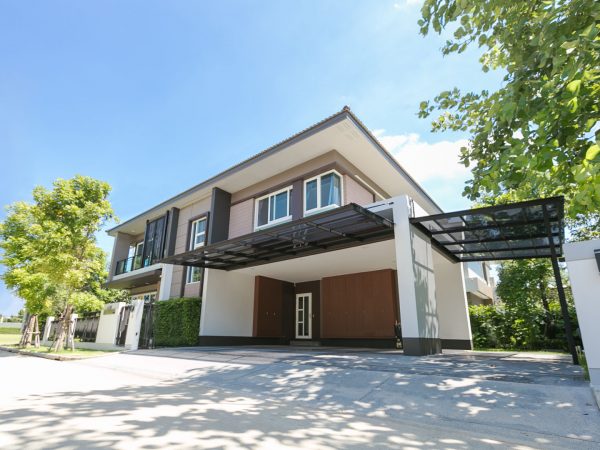

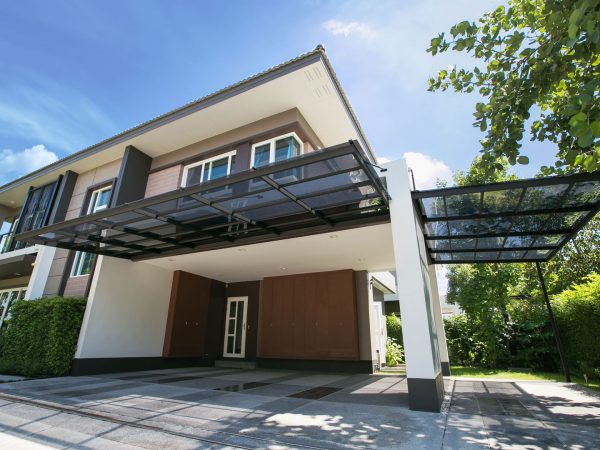

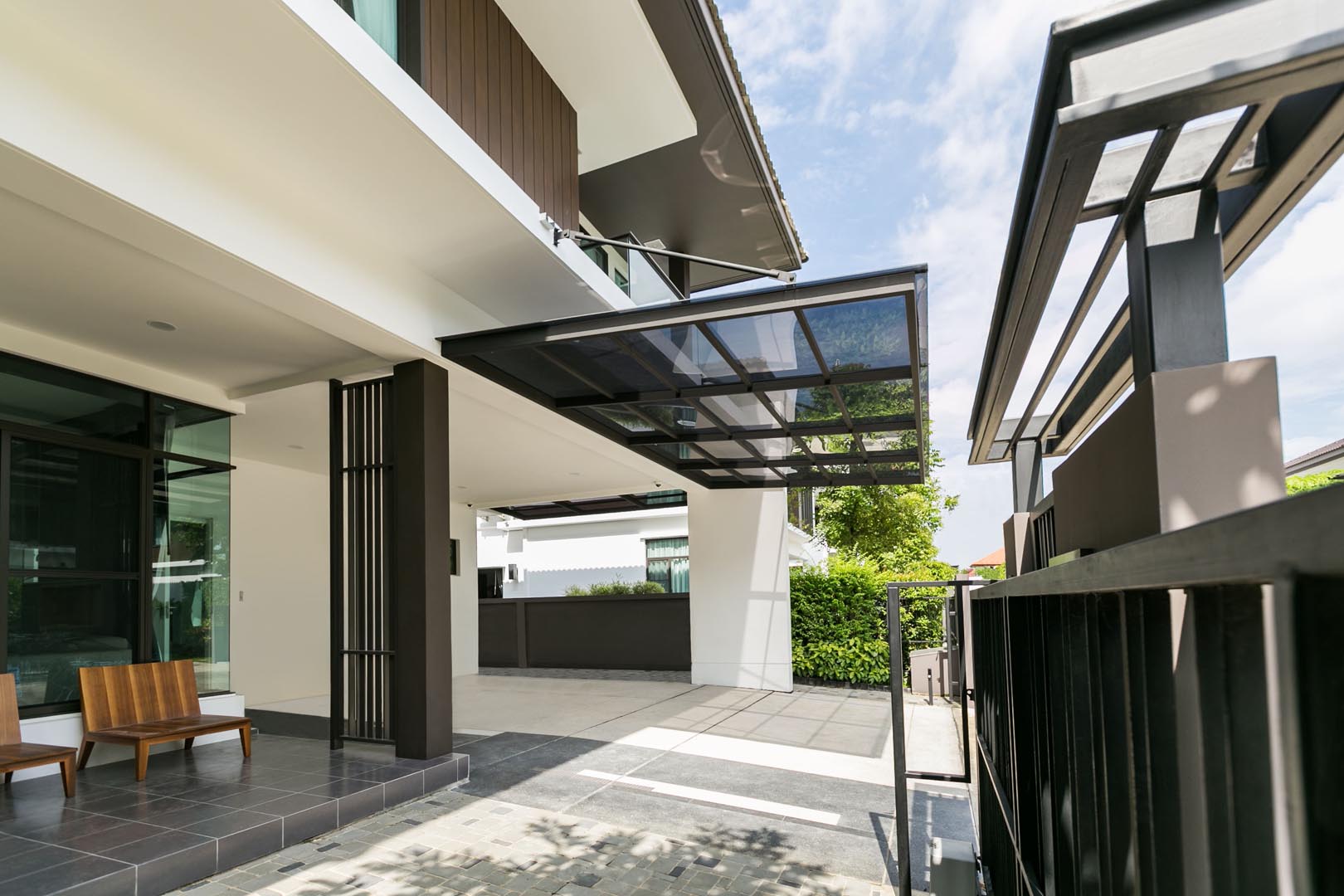

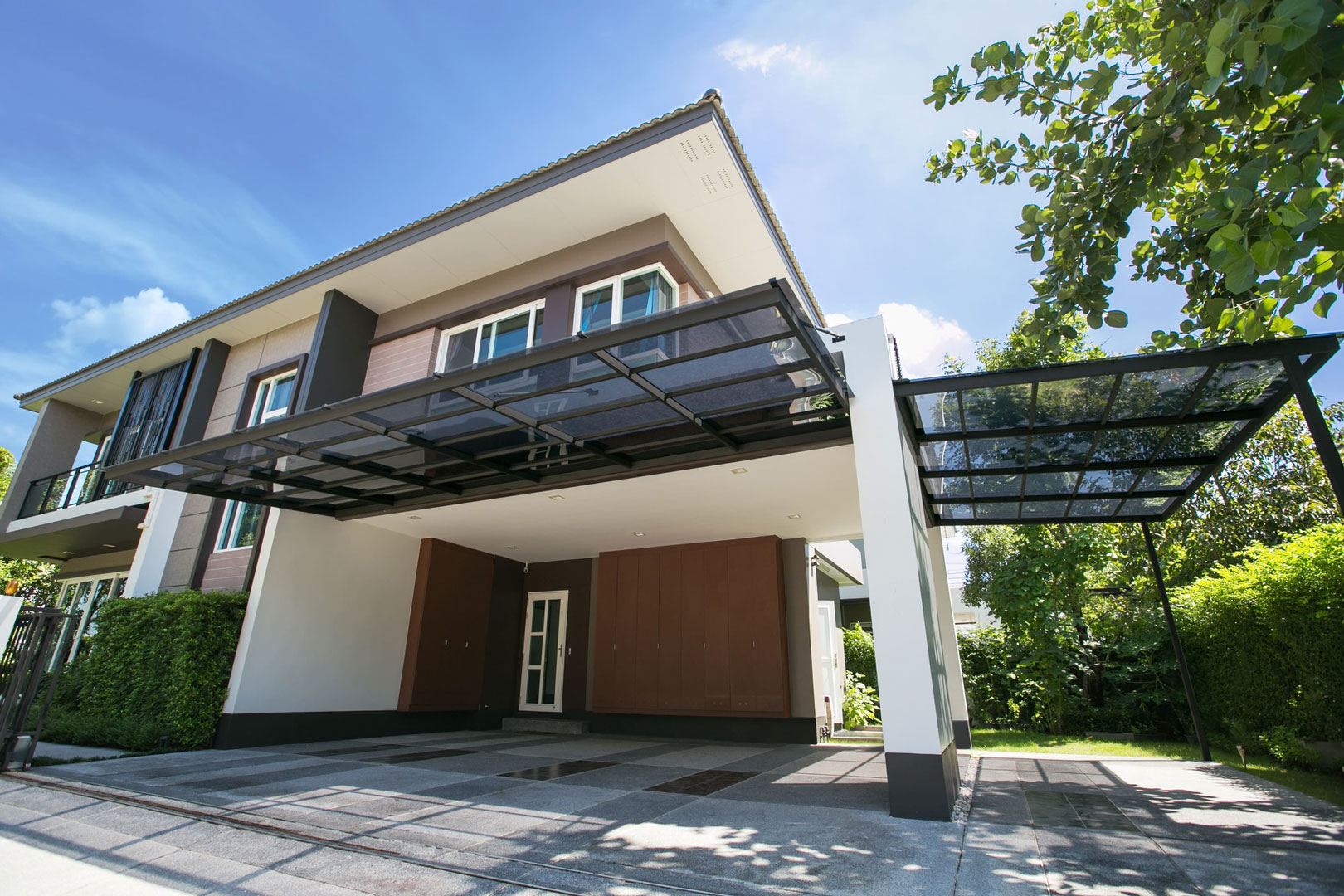

- Garage Roof

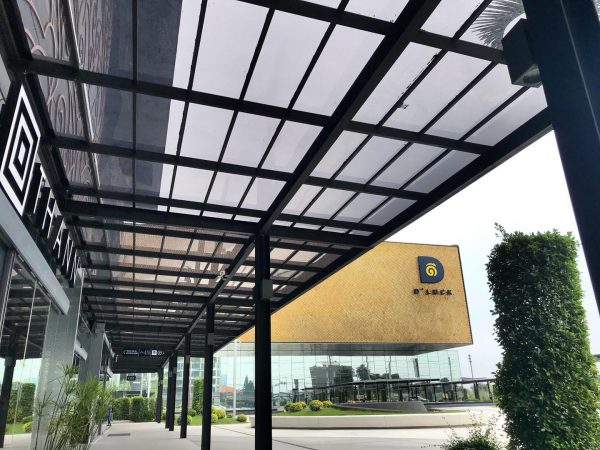

- Walkway Roof

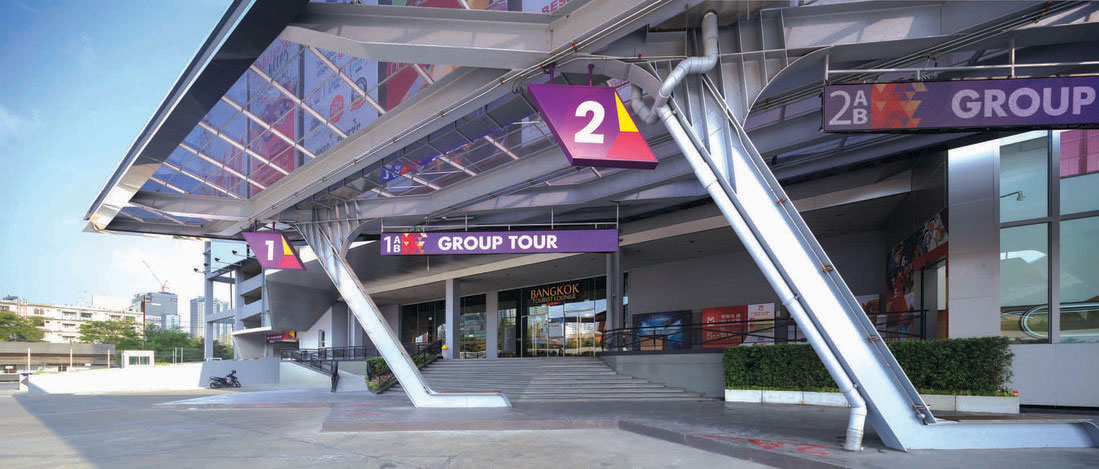

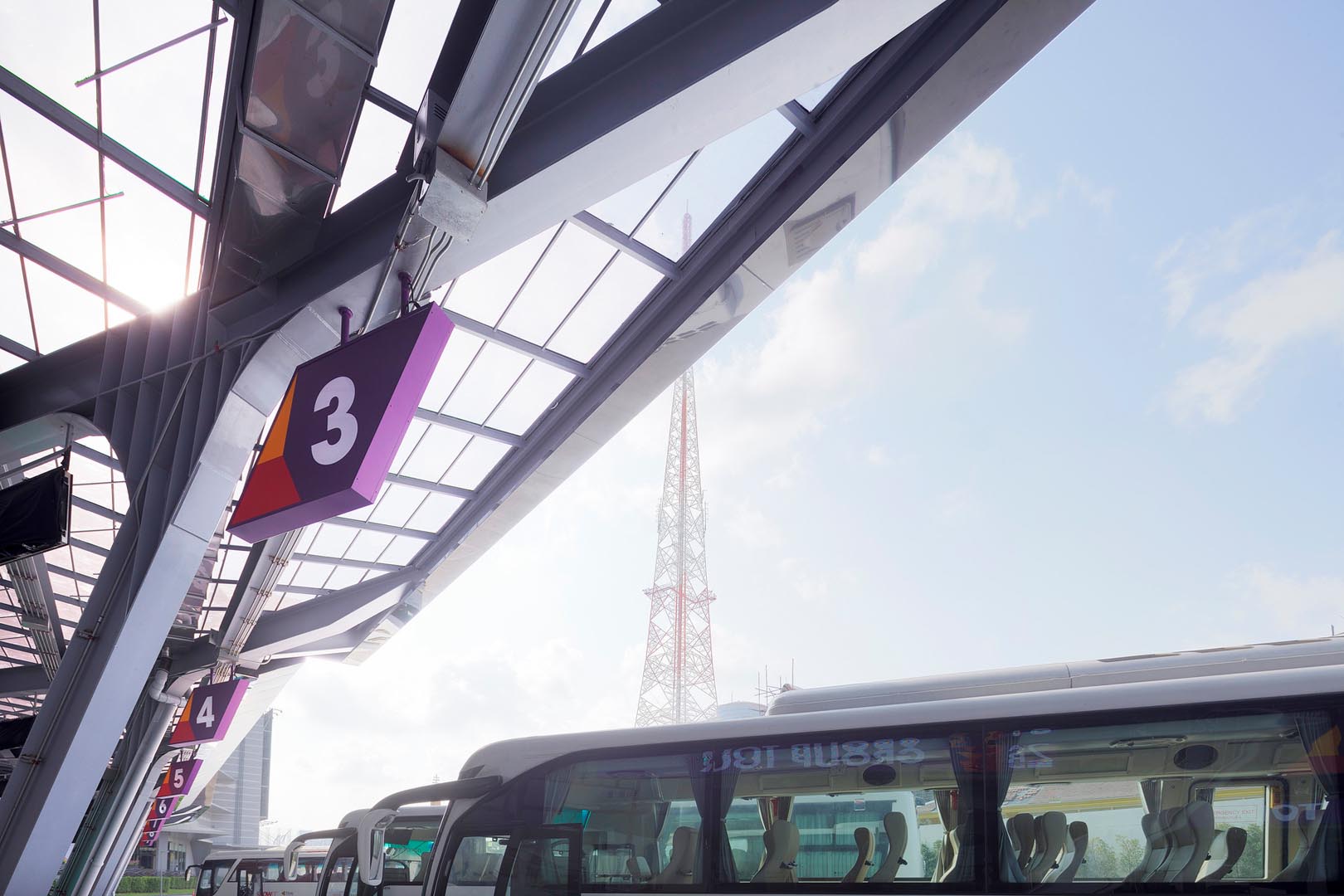

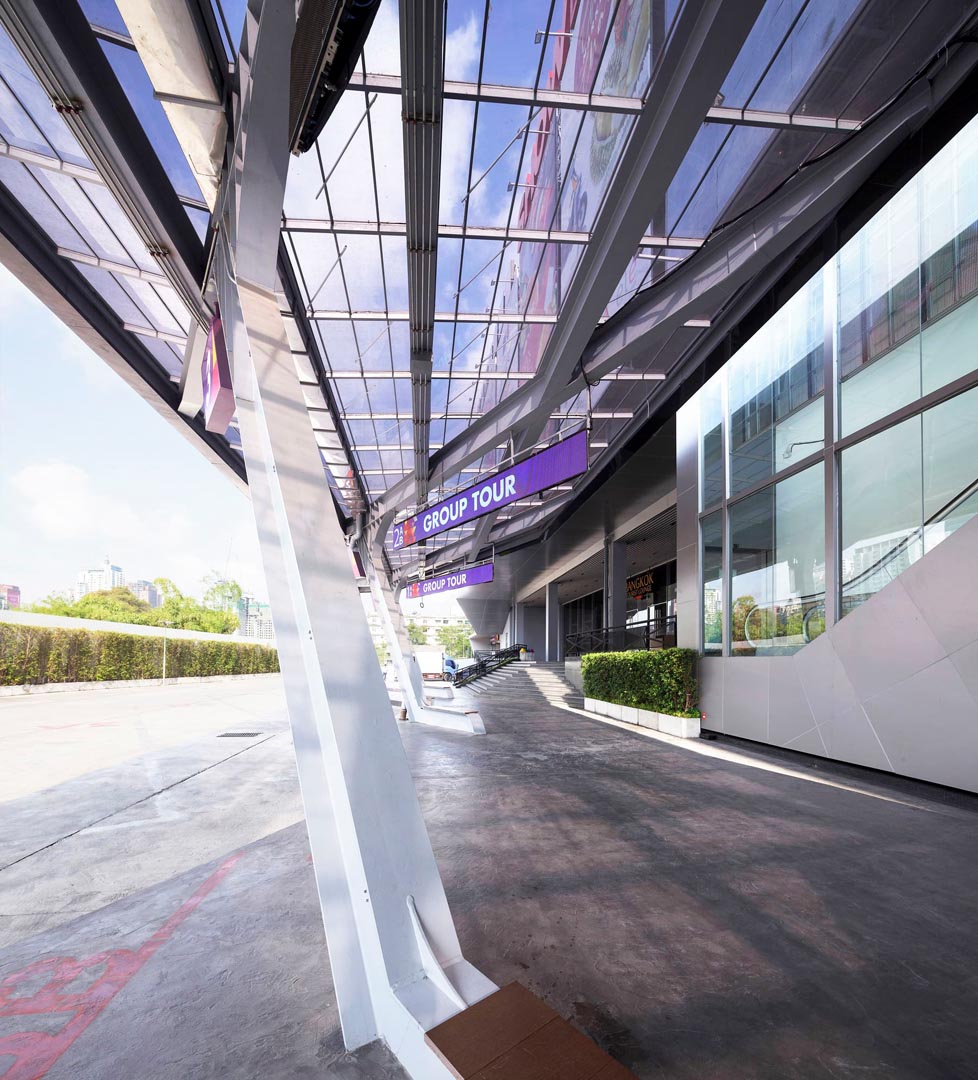

- Community Mall
- Hotel
- Resort
- Green Building

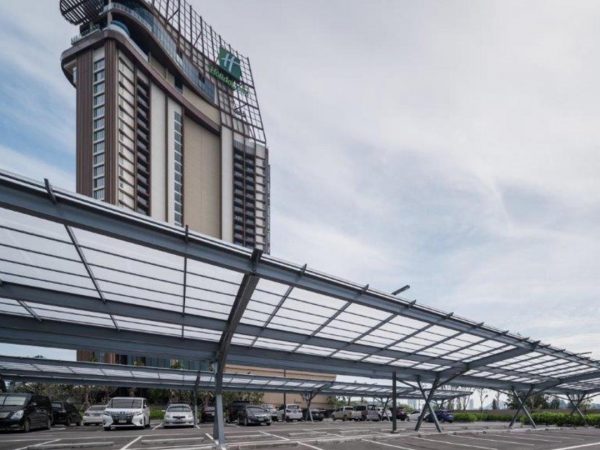

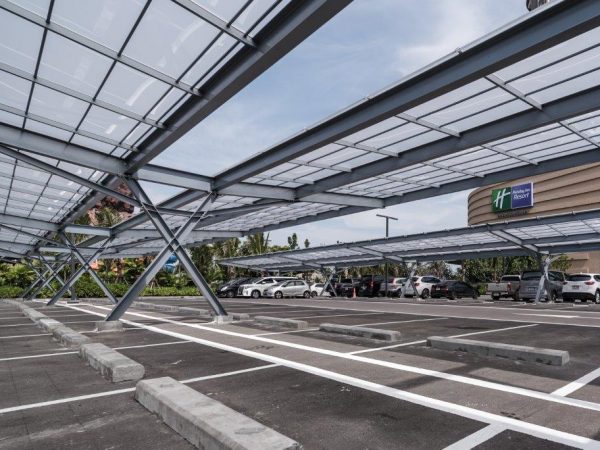

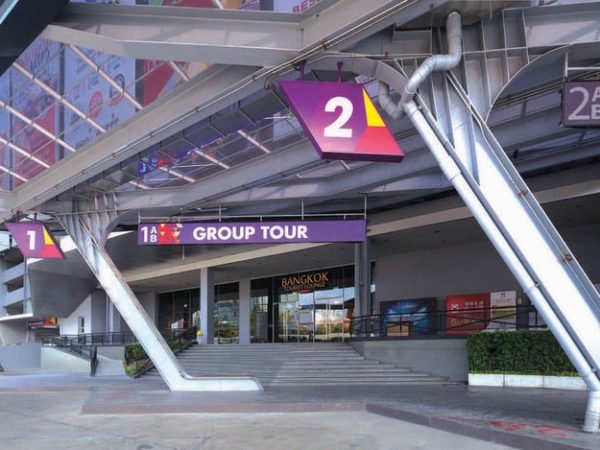

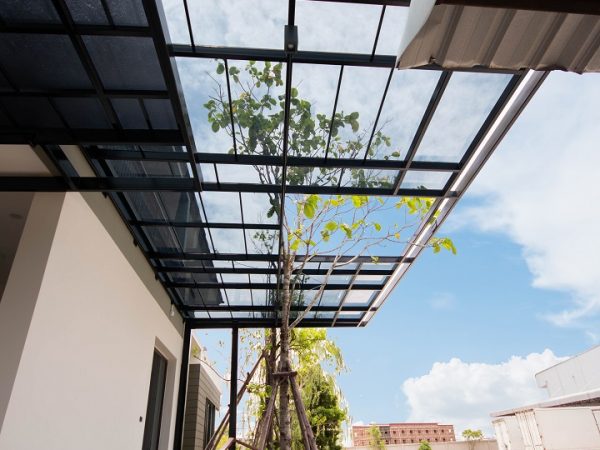

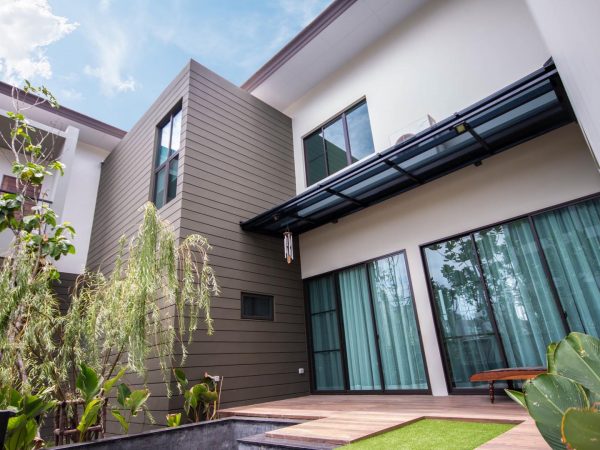

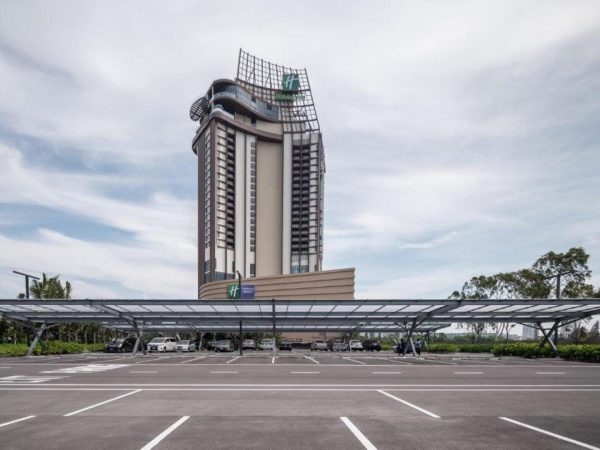

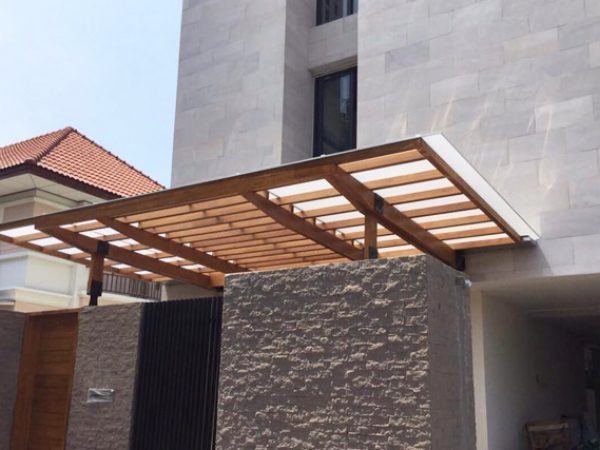

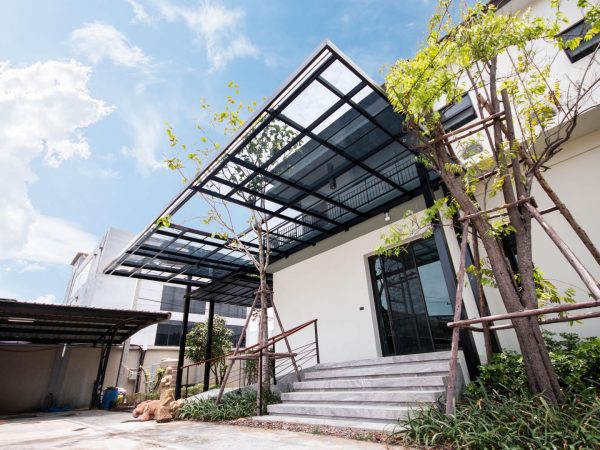

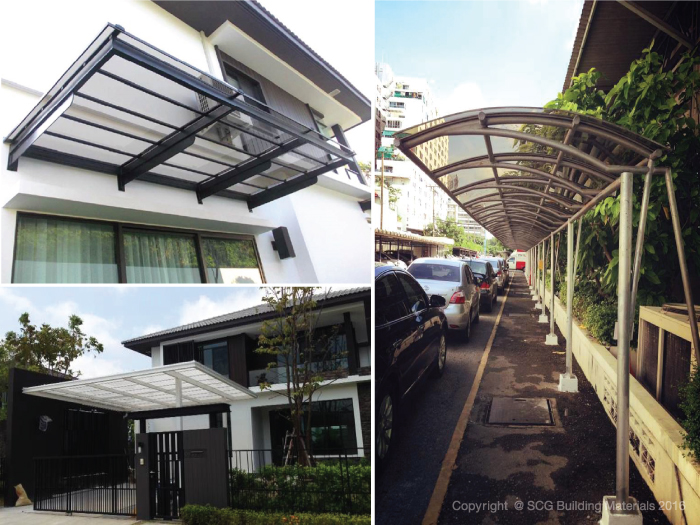

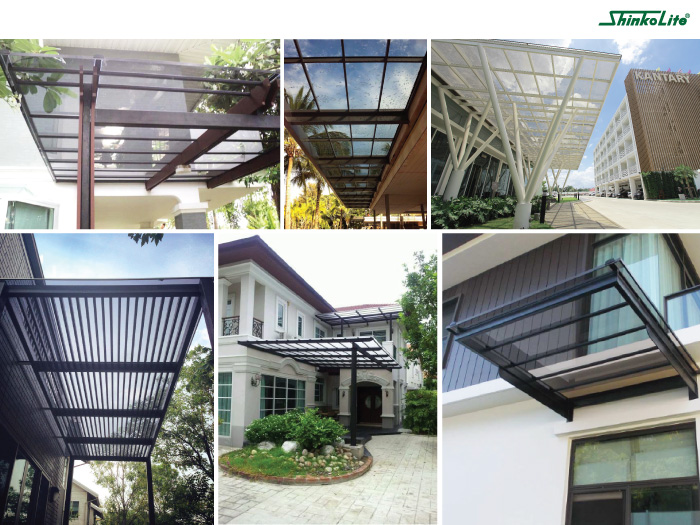

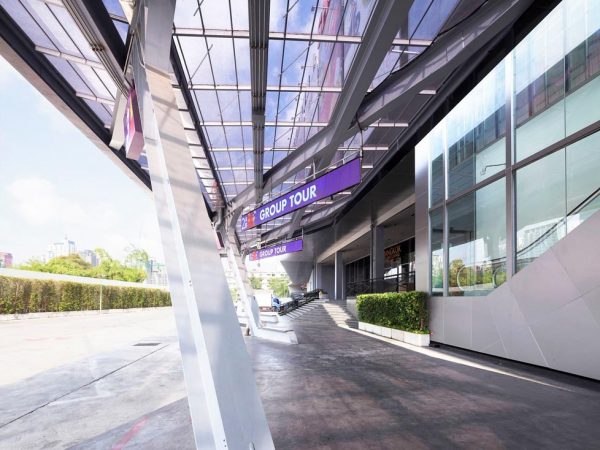

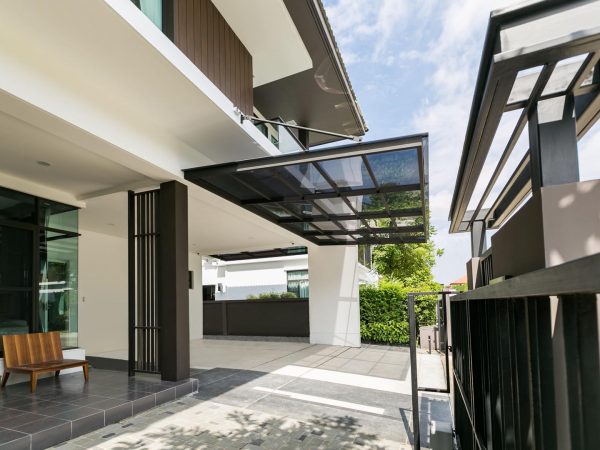

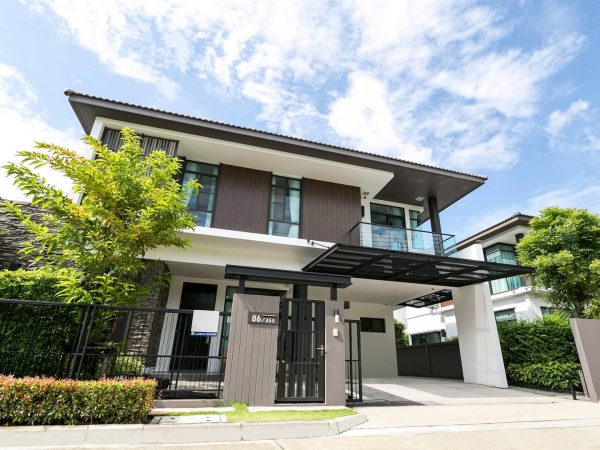

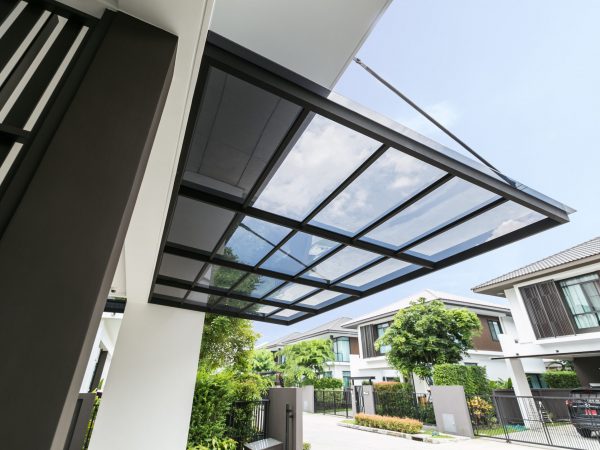

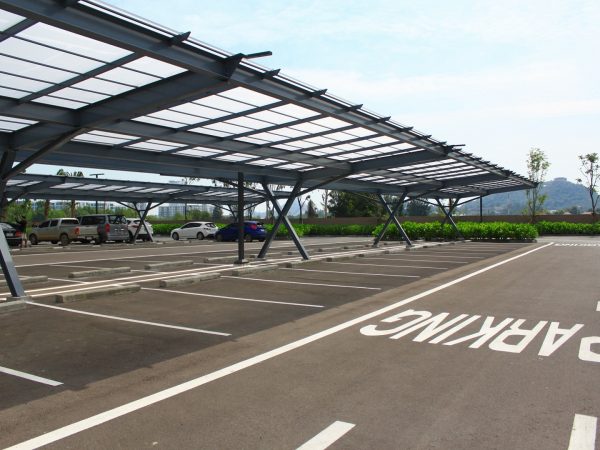

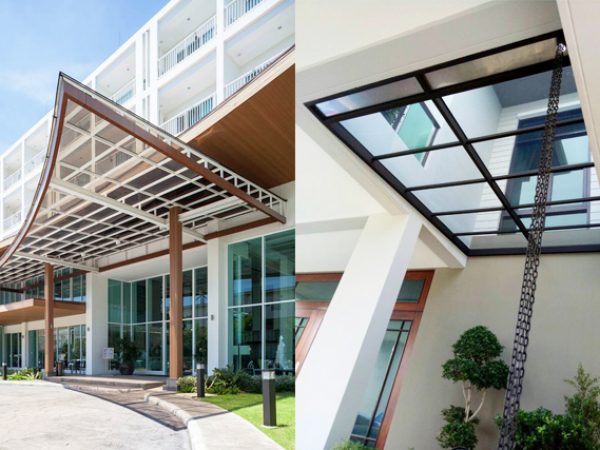

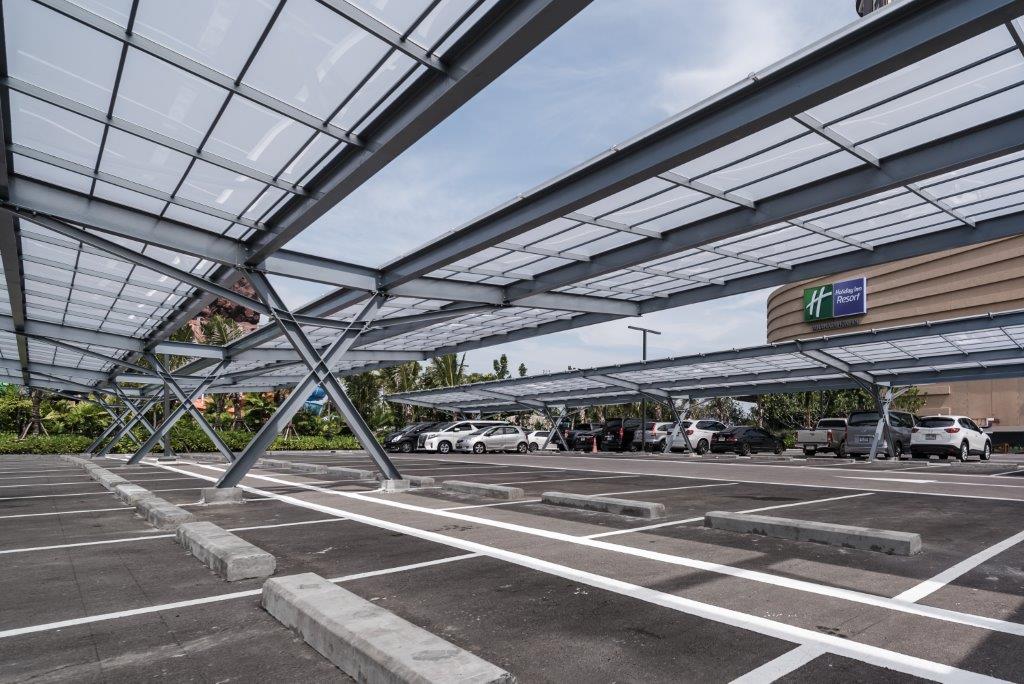

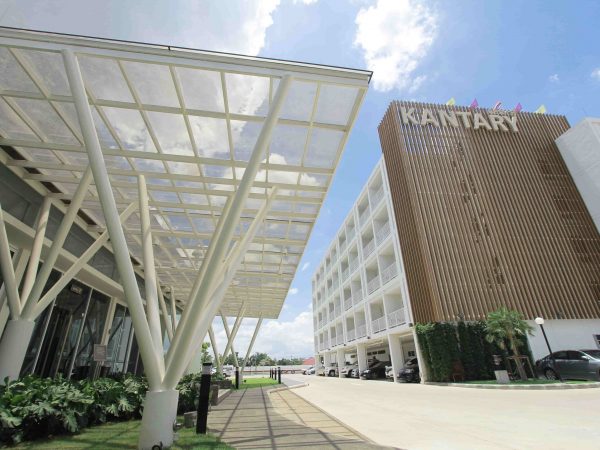

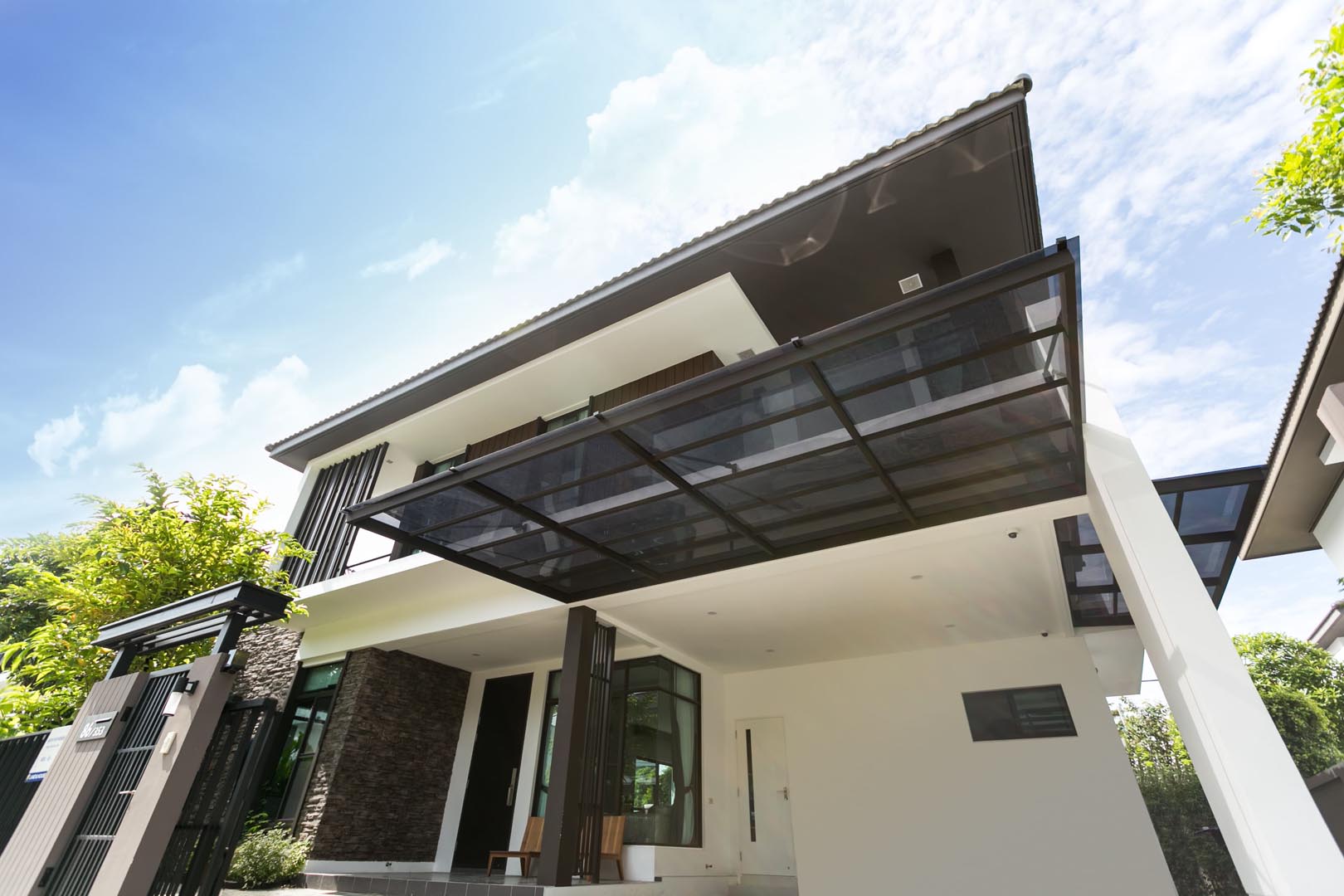

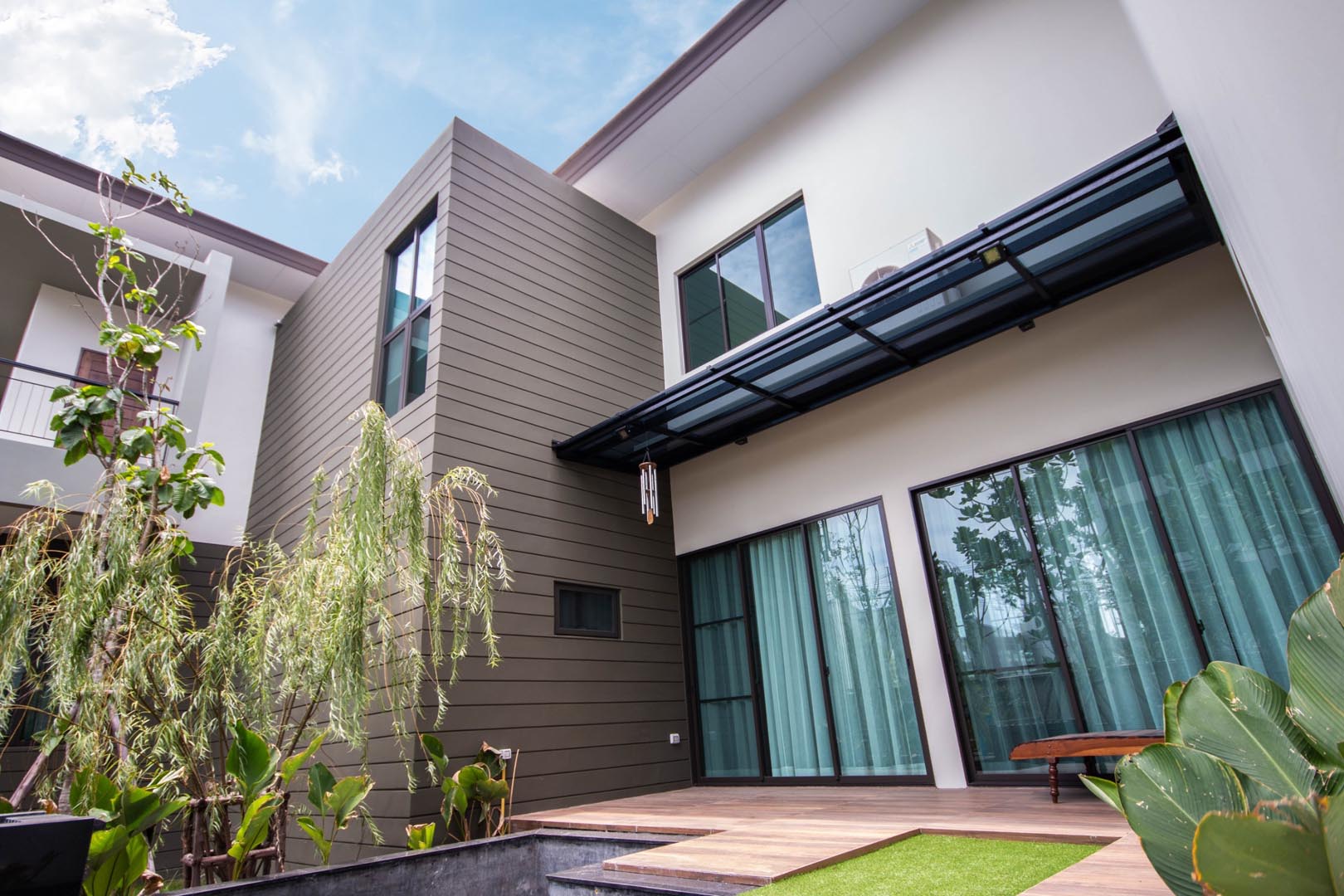

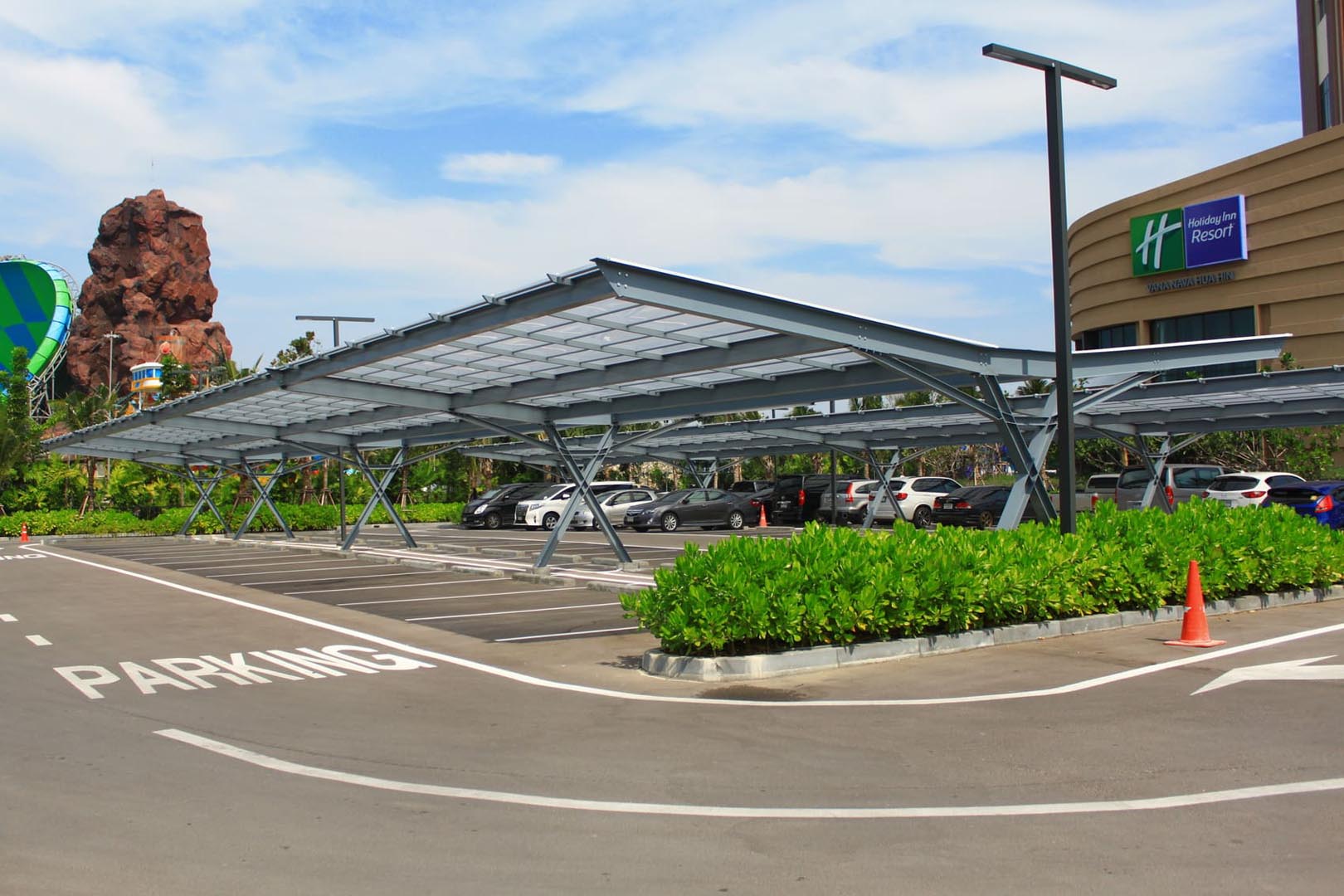

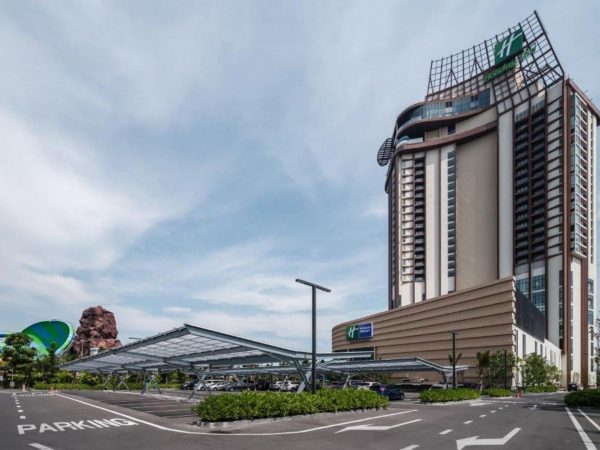

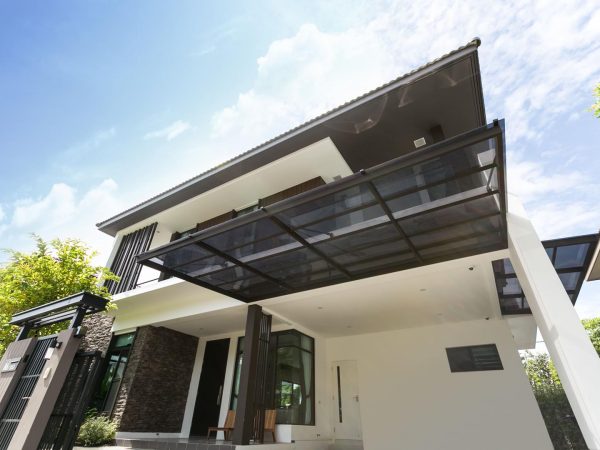

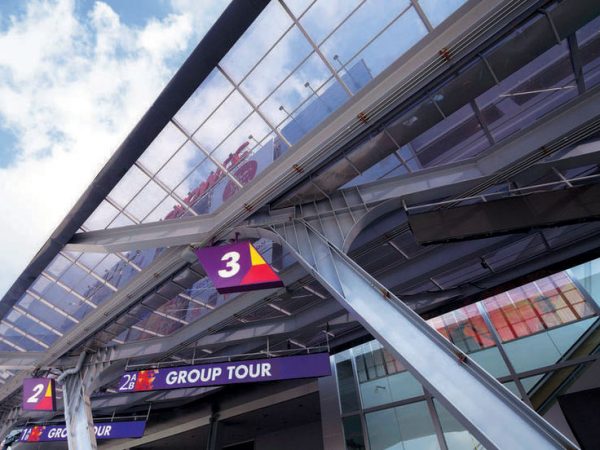

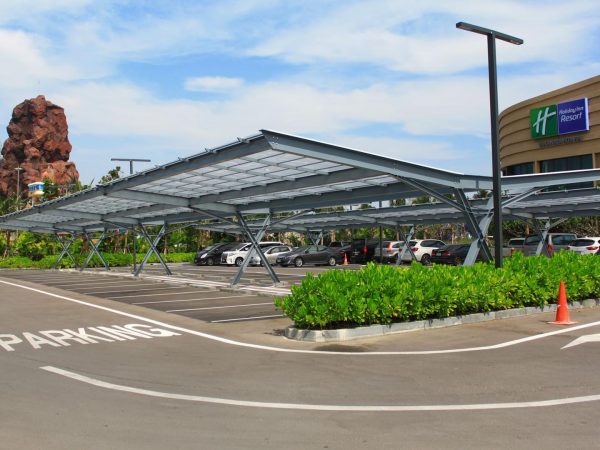

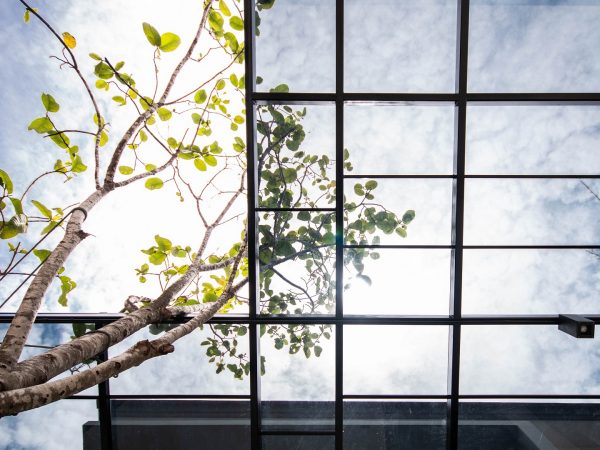

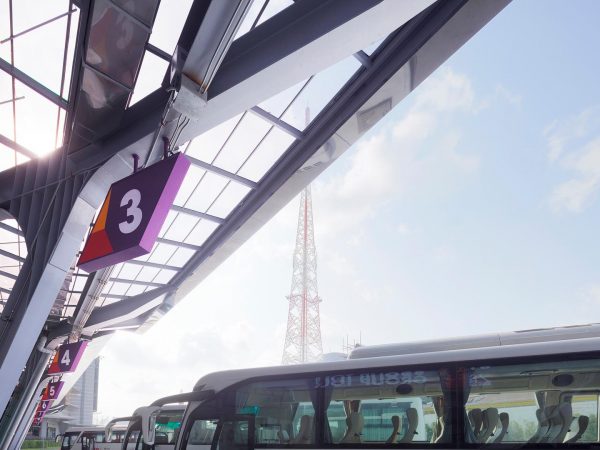

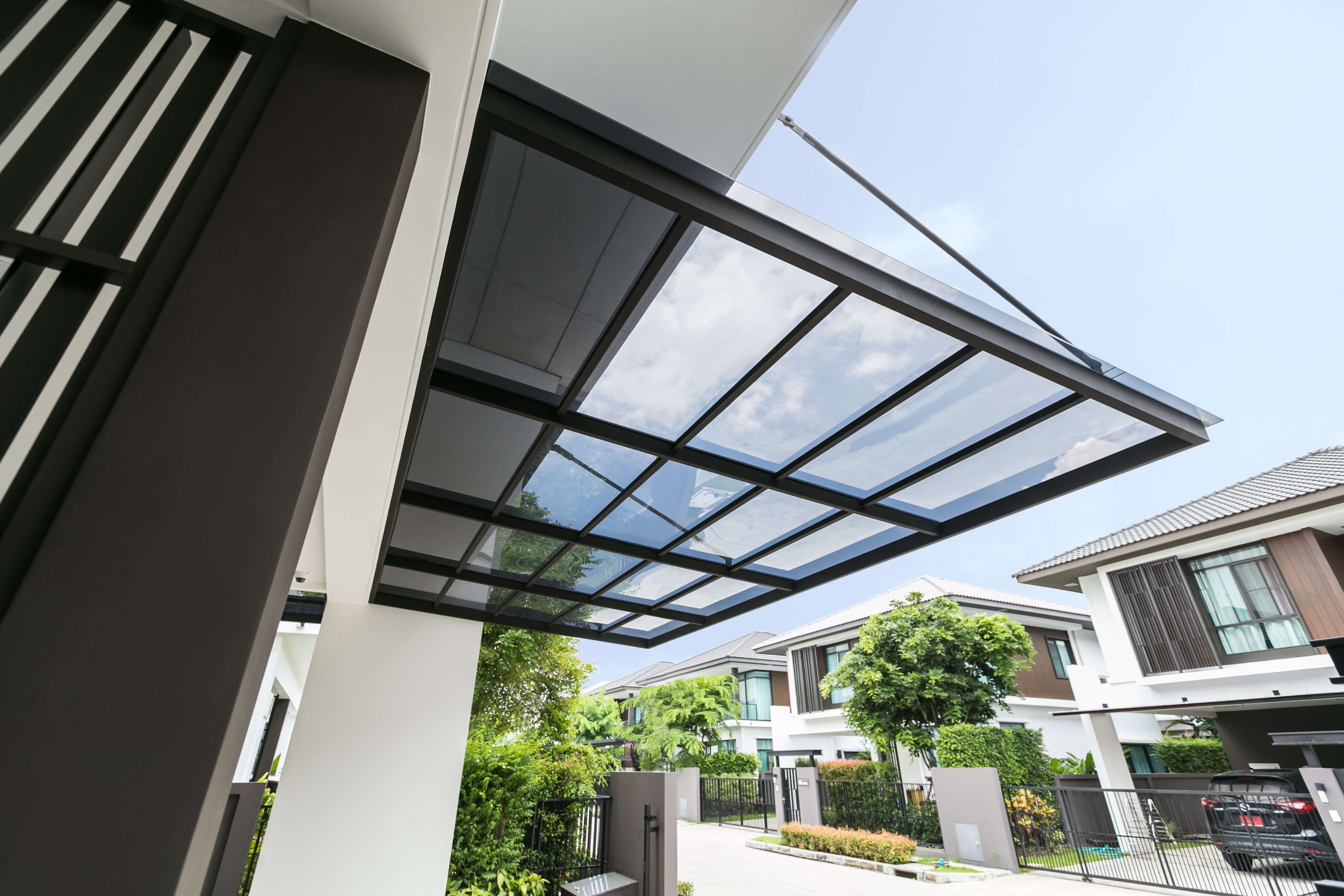

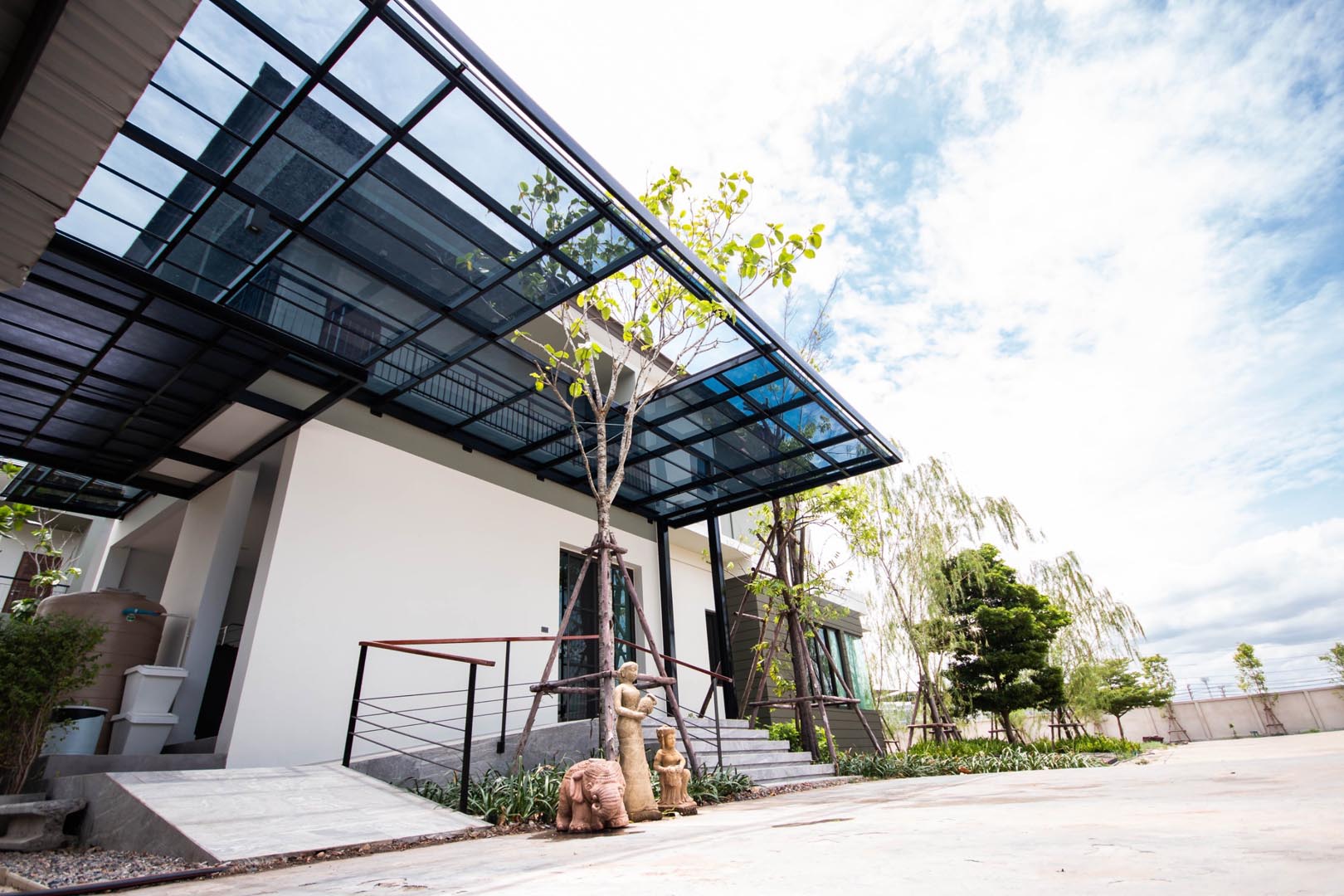

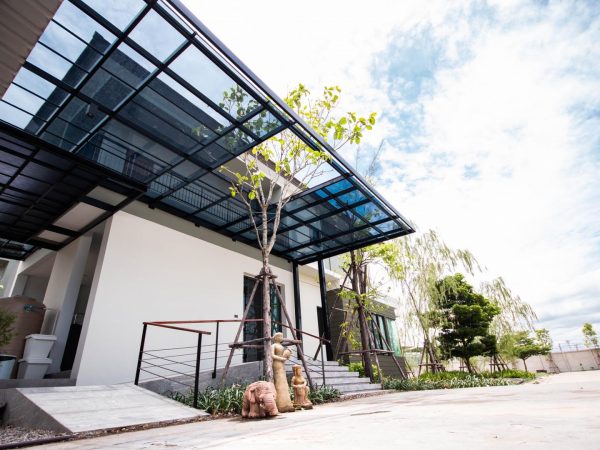

Application Example
Installation Guideline

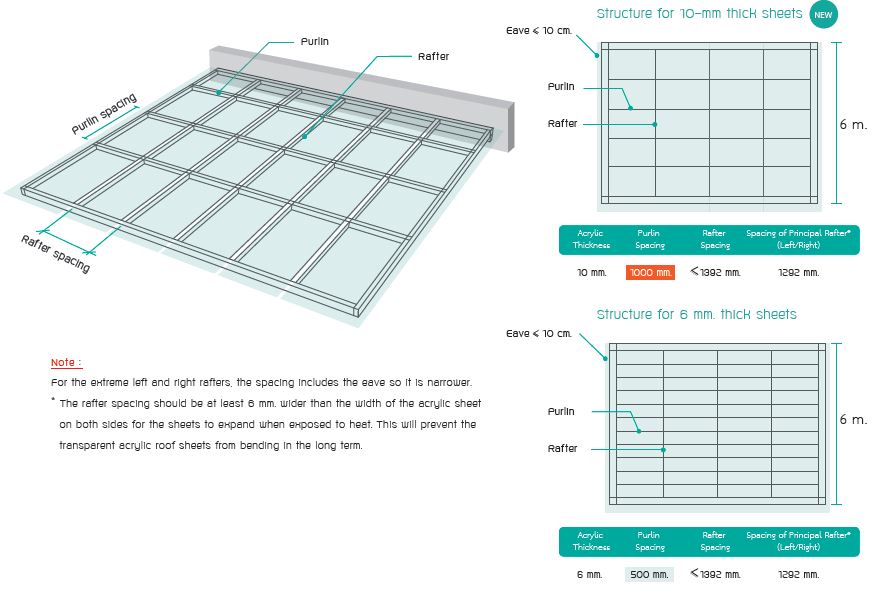

Roof Structure Preparation
Check the roof structure including rafters and purlins. They should be in the same plane and have the spacing as recommended below.

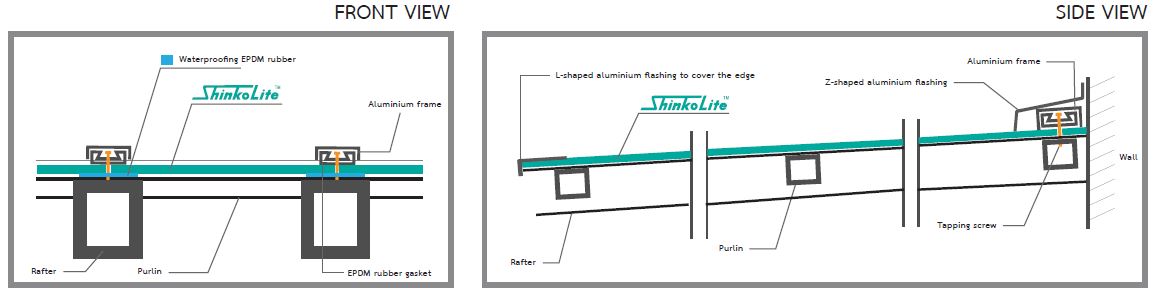

Shinkolite Acrylic Roof Installation
Material Characteristic
1. Because the material is plastic, it could be wavy when compared to glass.
2. The noise from the expansion and contraction of the sheet is the nature of the material.
Recommendation
Usage General Recommendation

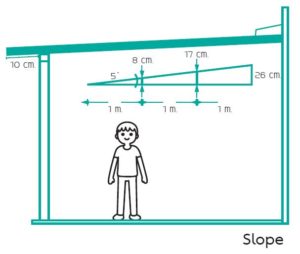

1. The structure should be tilted for at least 5 degree for better water flow as shown below.
2. To prolong the life of the acrylic sheets, avoid installing in the area with heat of more than 70 degree Celsius or near flame such as stove, field stove, etc.
3. The eave should not be extended more than 10 centimeters from the steel structure and adjust the left/right rafters according to the eave.
4. Only install the ShinkoLite acrylic sheets in an open area (at least open in 2 sides) such as awning, walkway roof, car park, terrace, etc.
Storage of Acrylic Sheets before Installation
1. Acrylic sheets should be stored on a pallet or shelf high form the floor to prevent exposure to the moisture from the floor.
2. Acrylic sheets should be stored in a dry place and away from sunlight for a longer lifespan after installation.
Cautions
1. Avoid stepping on the acrylic sheet without a structural support underneath for the safety of the user and damage prevention.
2. Do not use installation equipment which made from PVC to attach with ShinkoLite sheet at all time (such as rubber flashing, glue tape, etc.) to prevent damage that may occur to the sheet (cracking).
3. Be careful of sharp edges or corners of the sheets. For safety and beauty purposes, flashing should be installed to cover the edges of the acrylic sheets.
