High Quality Concrete Roof Tiles
Prestige Series
Natural Feeling Flat Roof Tiles
SCG Excella Classic Series, high quality ceramic roof tile. The exquisite curved design of this ceramic roof tiles series definitely makes a timeless statement. Bring luxury and elegance to your residence today.
Key Documents & Design Files
Installation Guide
Previous
Next

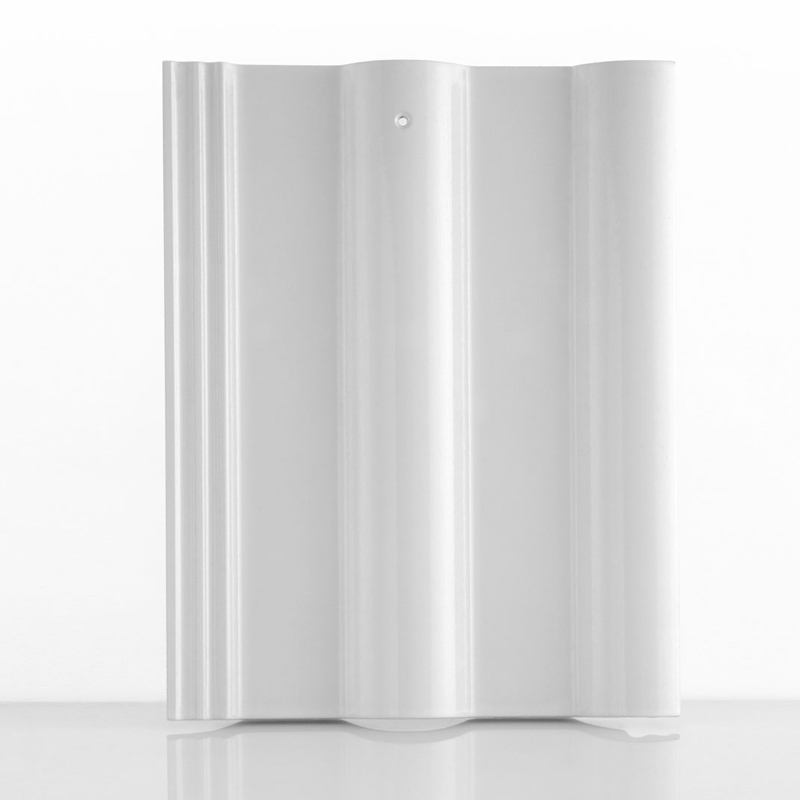

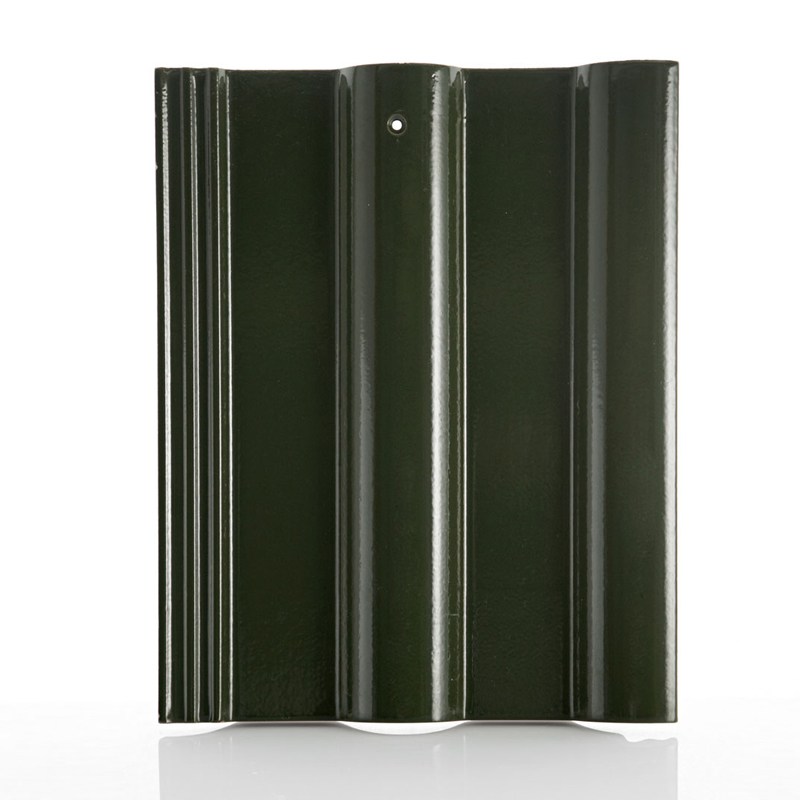

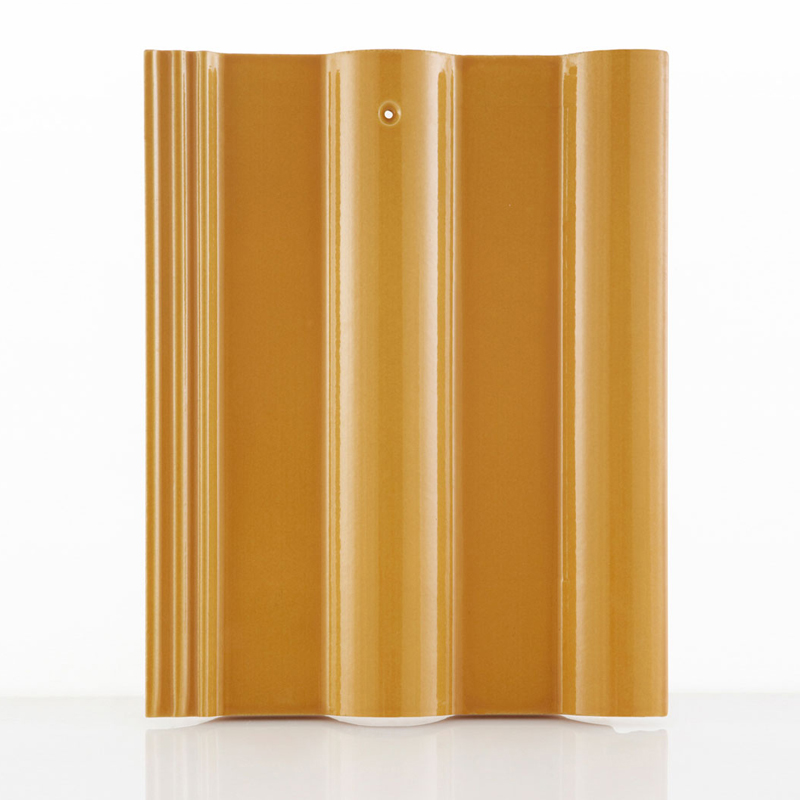

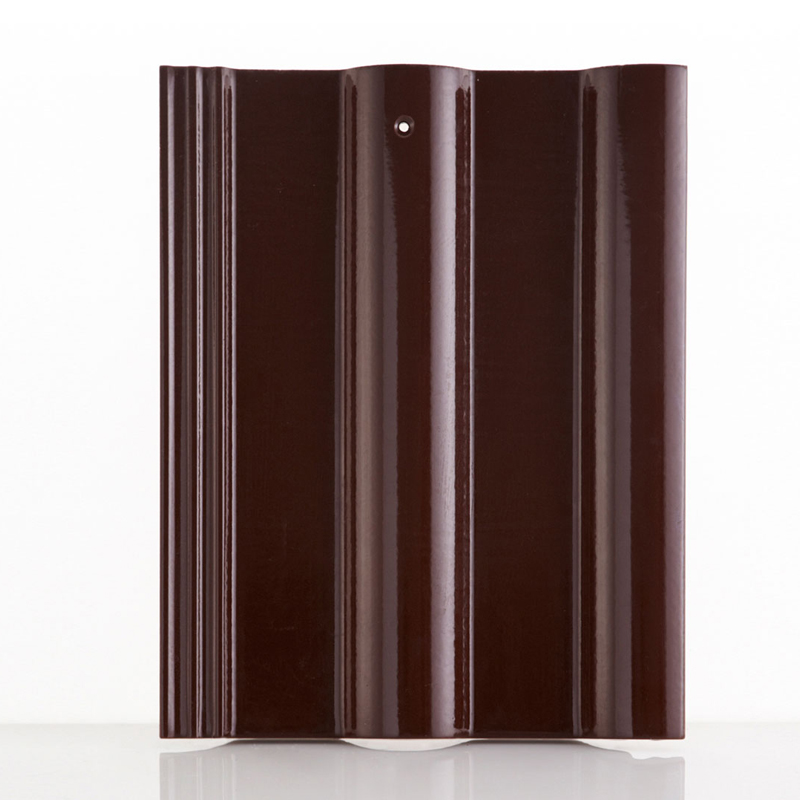

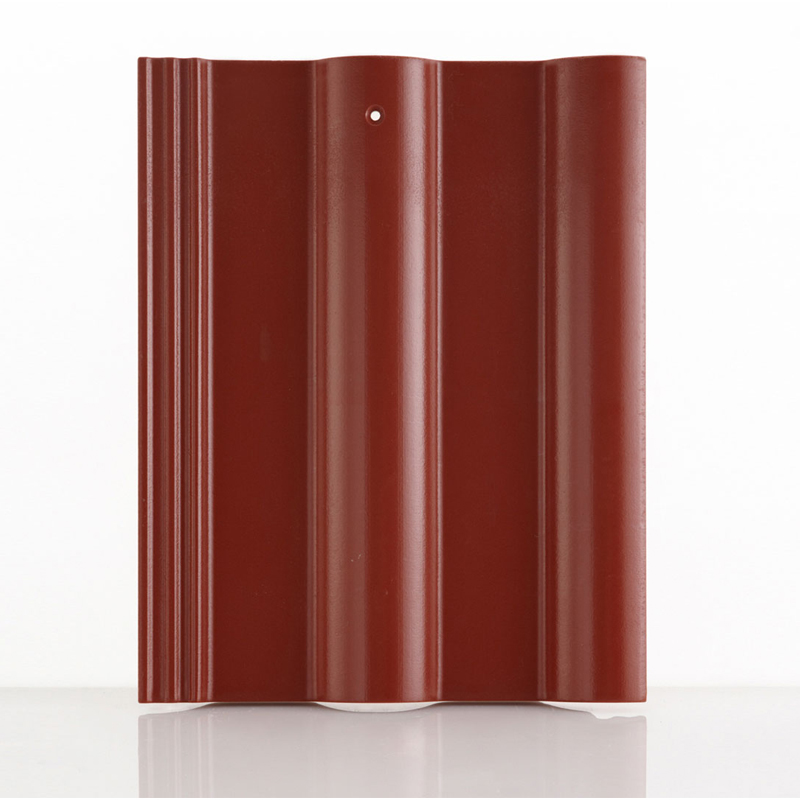

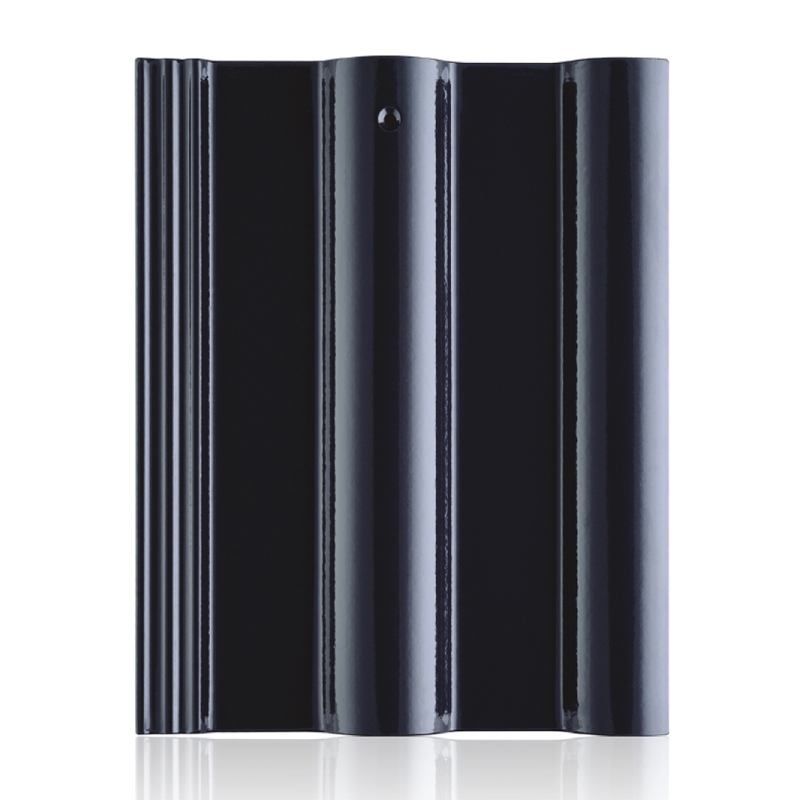

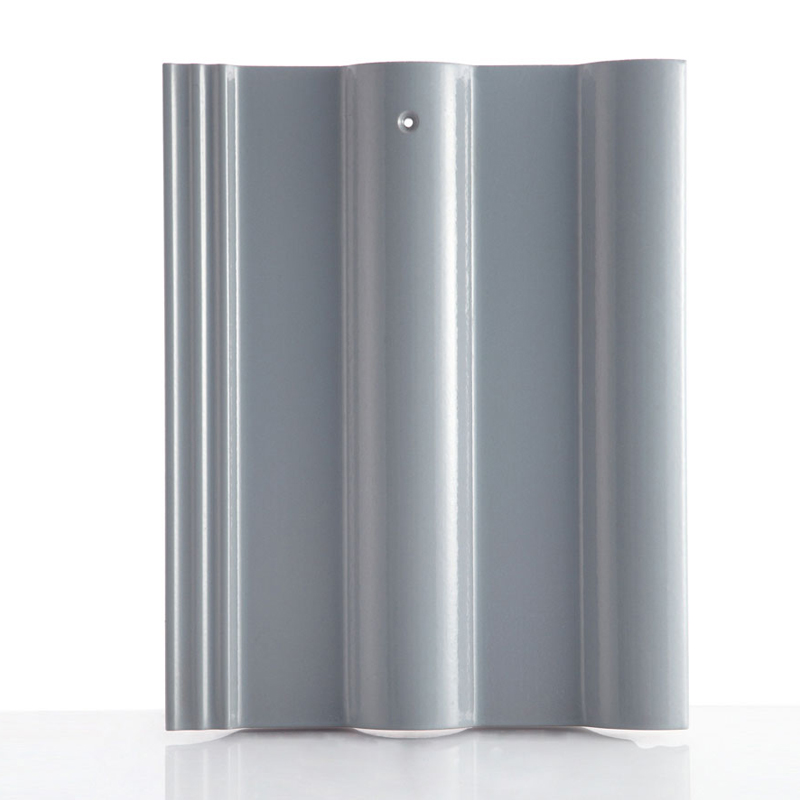

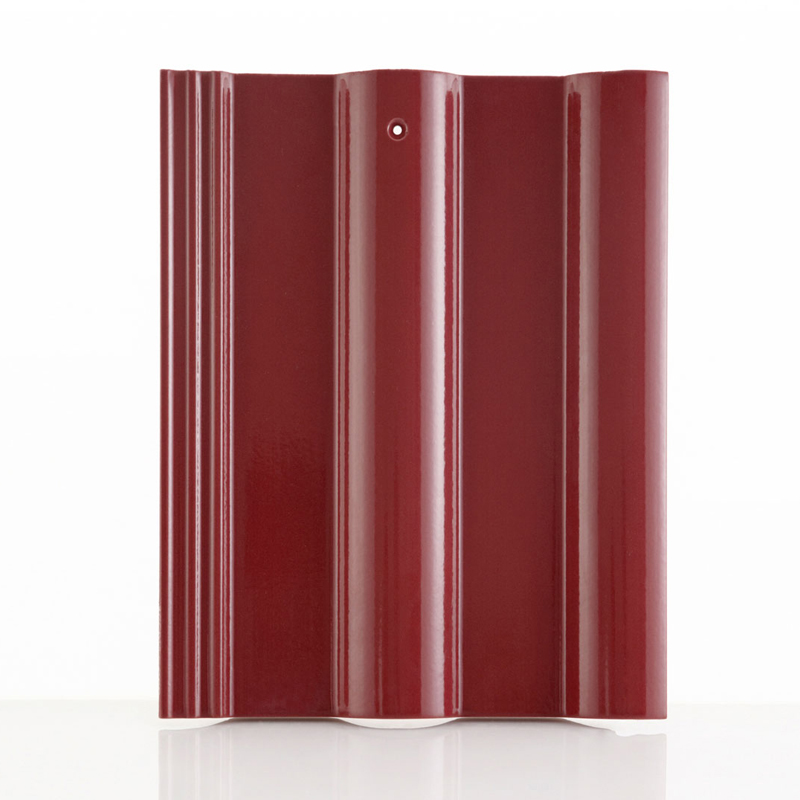

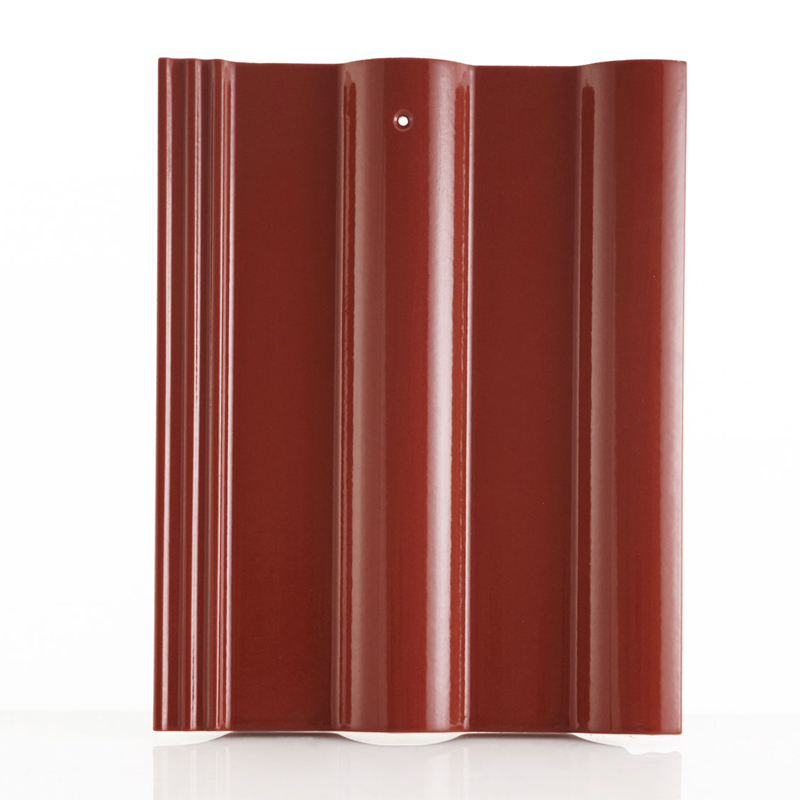

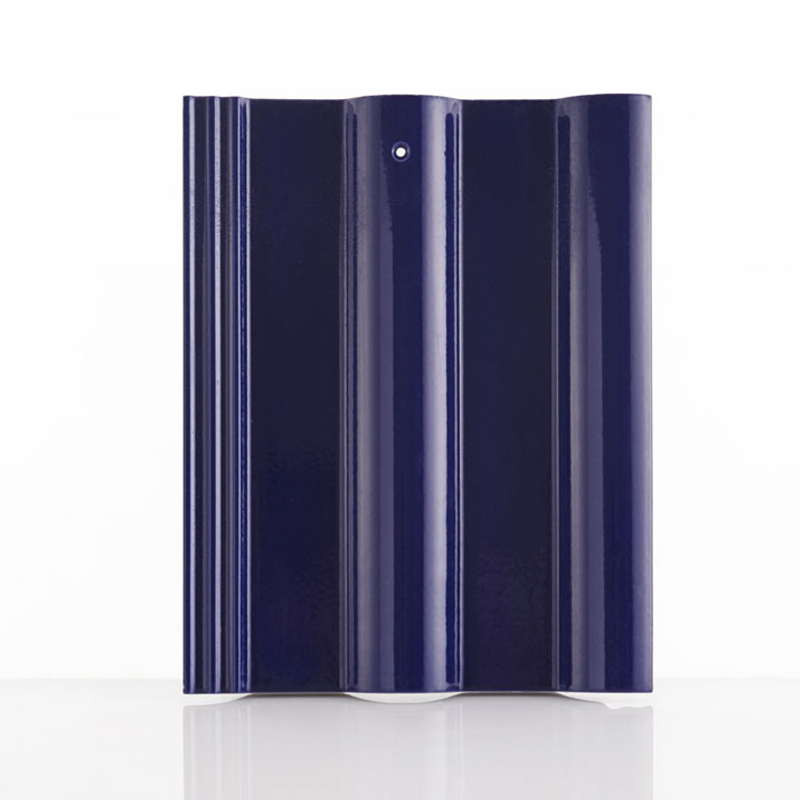

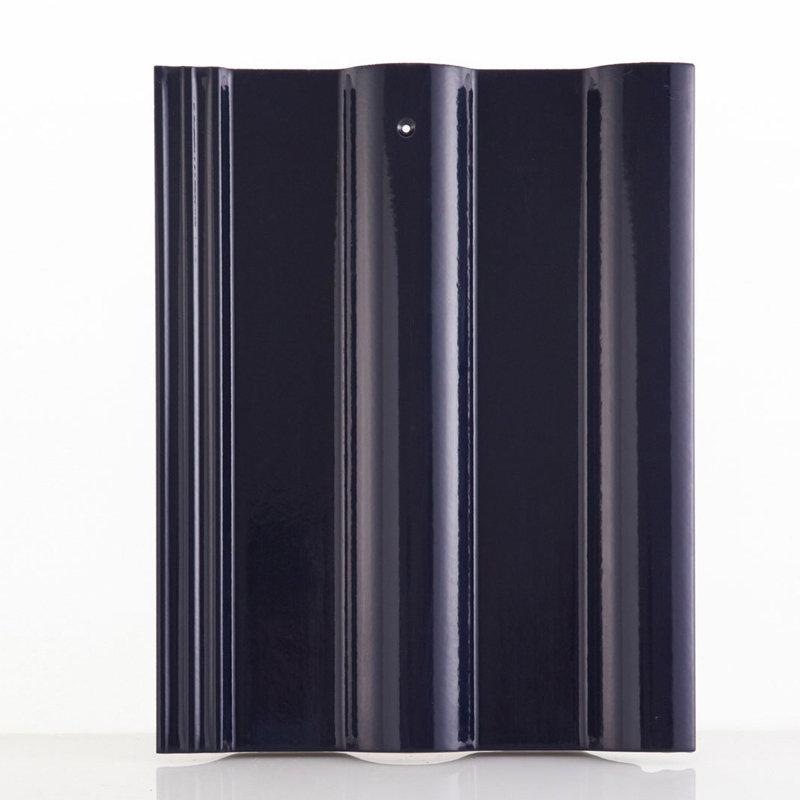

Color Option
Round Ridge Collection
Round Ridge
Usage along ridge board and hip rafter (Usage 3.3 pcs./m.)
2 Ways Round Ridge
Used at the middle of the ridge (for gable roof)
3 Ways Round Apex
Used at the joint between the ridge board, covering the hip of hip rafter Y
Used to cover the hip rafter at the join of square of hip rafter
Used at the barge board of the gable roof (Usage 3 pcs./m.)
Pipe Vent Round Ridge
Used for covering the tiles that has lighting conductor or ventilation the gable roof.
Product Specification
Size : 33 x 42 cm.
Weight : 3.5 kg./tile
Minimum Pitch : 17 Degree
The quantity to be used is : 9.8 – 10.4 pieces/sq.m. depending on the roof shape and distance between battens (batten 32-34 cm.)
Special Property
SCG Ceramic Roof Tile Excella Classic Series, An ideal marriage of taste and elegance, our SCG Ceramic Roof Tile Excella Classic Series is a high quality ceramic roof tile which makes a majestic roof that every owner can be proud of. From meticulous design to finest finish, Excella Classic Ceramic Roof is created with attention to detail.
Raw materials of distinctive quality are processed using state-of-the-art technology, given a special coating technique, and fired at a temperature as high as 1,100 degree Celsius. The finished result is exquisite roof tiles of excellent quality worthy of the admiration of all and guaranteed to stand the test of time. SCG Excella Classic Series is named ” The Premium Ceramic Roof Tiles “
Distinctive Characteristics of excella classic series
Excella Classic Ceramic roof special Properties
Long Lasting
Striking long-standing colors. This ceramic roof tiles will help your roof top keep long lasting beauty over the time.
Self-Cleaning
Featuring self-cleaning ability with sleek surface which easily returns to its brand new look after rain.
Lightweight
Lightweight, strong and durable genuine ceramic. The best quality roof tile that stand with your residence for long time.
Application Guideline
- Luxury Residence Roof
- Hotel Roof
Application Example
Related Products
Dry Tech System for Excella Ceramic Roof
Dry Tech Accessories
Used for installing round ridges instead of using mortar which can cause over spilling or leakage. One set of Dry Tech System consists of Excella Flashing 2 rolls/set (0.15 x 3 m.), 1 Corrugated Line (3m.) Stand Fixing and Screws.
Not only does it 100% prevent leakage, it also allows easy and neat installation. (1 set covers 3 meters)
Roof Equipment
Excella Flashing
The high quality flashing is used to seal the joints on the roof. Its high flexibility allows it to mold itself and attach firmly to the surface of various materials.
Excella Flashing offers high weatherability, long service life, and 100% leak prevention. Available in two sizes : 0.30 x 0.80 m. and 0.30 x 3 m.
Stainless Valley Through
Made with quality stainless steel, the factory-made valley through with a standard size can effectively channel water.
– Valley width : 12 cm.
– Valley wing width on each size : 12.5 cm.
– Valley depth : 3 cm.
– Valley length : 2.4 m.
Batten
The batten is manufactured from Zinc galvanizes steel. Instead of using the electric wire pressure welding method, the batten can be easily installed using Zinc galvanized screws and is highly durable (each unit is 4 m. in length
Ribbon Sealer
The sealer is used to prevent water penetration around the openings of the tiles around the roof hip before applying the Dry Tech flashing. This prevents the passage of water around the area where the hip tiles overlap.
Roof Equipment for Excella Classic Series
Eaves Filler Unit
Used on the inside fascia board to prevent small insects that may cause damages to the roof. It also helps to reduce humidity under the roof. Faster installation makes it more cost effective. (10 units/box)
Birds Filler Unit
Used on the curve of the SCG Ceramic Roof Excella Classic Series Tile to prevent animals and birds. It also helps to protect rain fall into overlap tiles
Crystal Tile
Crystal Roof Tile, very suitable for rooms that need natural light which helps save energy and the electricity costs. It also dramatically reduces the humidity of the room. 1 Excella Crystal roof tile is the size of 2 Excella roof tiles.
Roof Holder Tools
Screw
The galvanized screw is used to secure ceramic roof tiles to the batten, using an electric drill without the need for periling. Available in 2 sizes.
– 2.25 inch screws, used with galvanized batten (250 pcs./box)
– 4 inch screws, used with angle stell batten not over than 3.2 mm. thick. (250 pcs./box)
Roof Holder Hooks
The roof holder hooks are made of corrugated iron. They are durable and offer a firm hold to the entire roof (250 pcs./box).
Installation
SCG Ceramic Roof Excella Classic Installation Manual
