Gypsum Board Material
HeatBloc Plus
Perfect for heat reflection
Gypsum Board which equipped with special Aluminum foil on its back side which can reflect heat radiation allowing a comfortable temperature suitable for residential homes or buildings.
Key Documents & Design Files
Previous slide
Next slide
Product Option
Product Size & Specification
| Description | Technical Information |
|---|---|
| Size | 1200 x 2400 x 9mm. 1200 x 2400 x 12mm. |
| Edge | Tapered / Square |

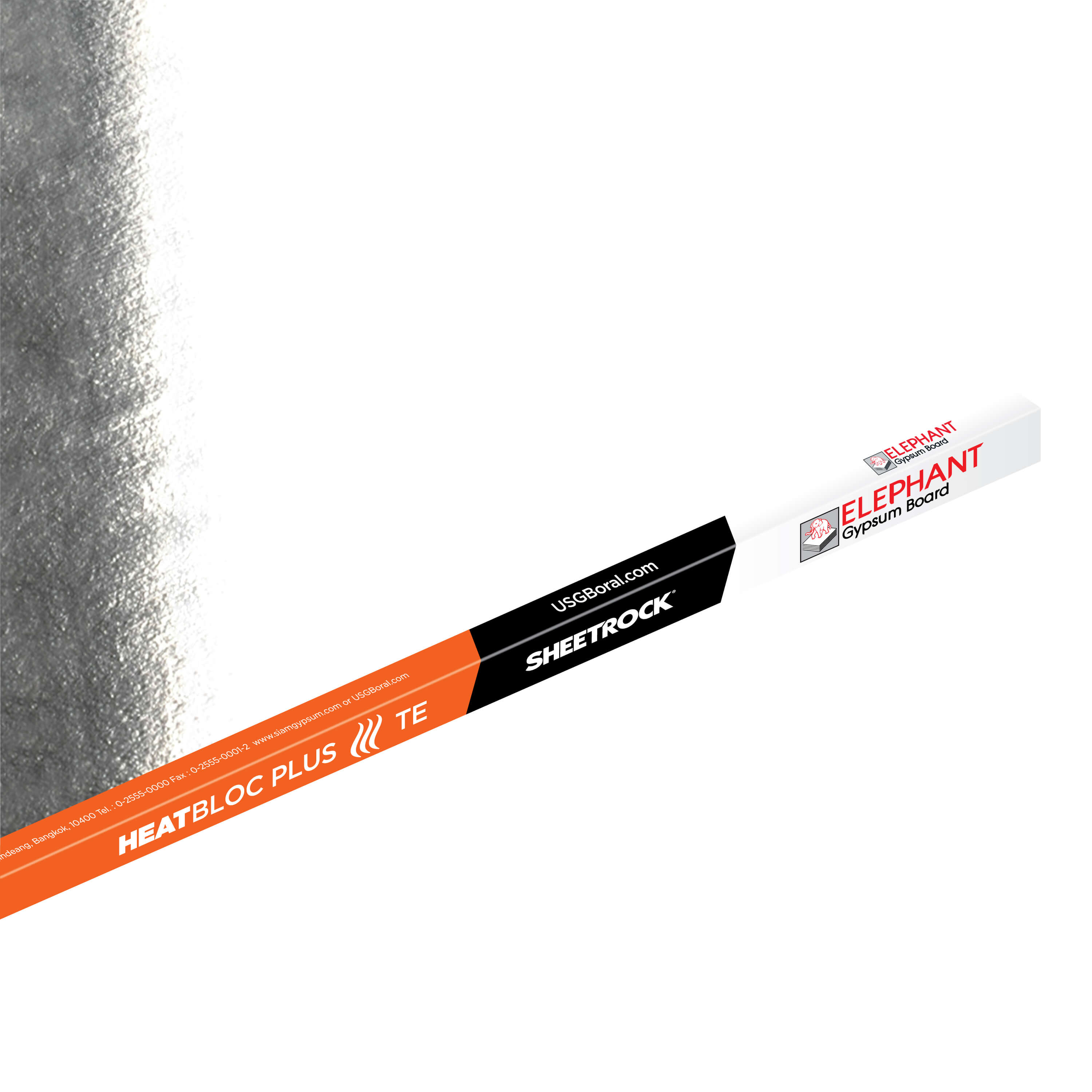

| Paper Colour | Ivory front/ Reflective foil back |
| Average Weight | 5.4 kg / sqm. (9mm.) 7.2 kg / sqm. (12mm.) |
| Reflectivity | 93.7% |
| Standard | - Thailand Industrial Standard (TIS) Certified. 219-2552 - JIS R 3106 (Reflectivity testing) |
Special Property

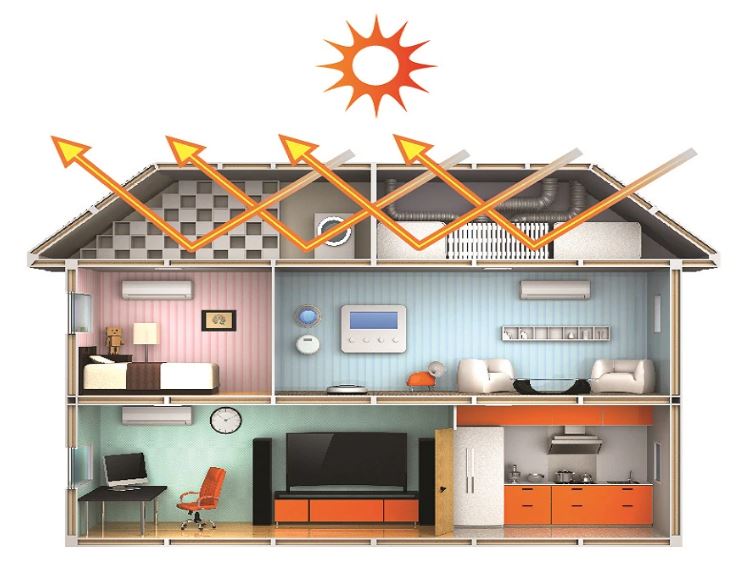

HeatBloc Plus is specially equipped with Aluminum foil on its back side to provide efficiency in heat reflection for use in residential homes or buildings.
MoistBloc Plus is patented by SHEETROCK BRAND from USG, a leading gypsum board manufacturer in the USA. With its unique enhanced technology, HeatBloc Plus contains more superior properties compared to any other general gypsum board.
HeatBloc Gypsum Board
Special Properties
93.7% heat reflection
Aluminum foil padding on its back side provides up to 93.7% heat reflection.
Lighter but more efficient
Lighter than general gypsum board, more efficient to install and fast working.
Strong, durable, and long lasting
Strong, durable, long lasting with superior sag resistance.
Standard Certified
Thai Industrial Standard (TIS) certified. JIS R 3106 heat reflection testing certified.
Material consistency
Environmentally friendly and recyclable.
Application Guideline

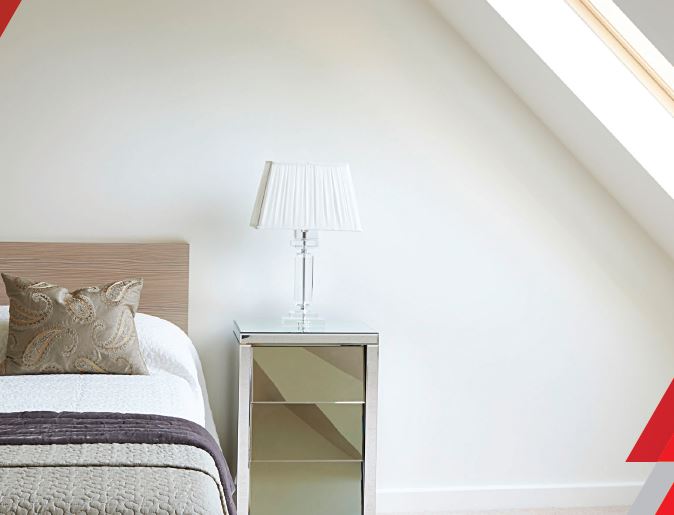

- Attic ceilings
- Top floor ceilings.

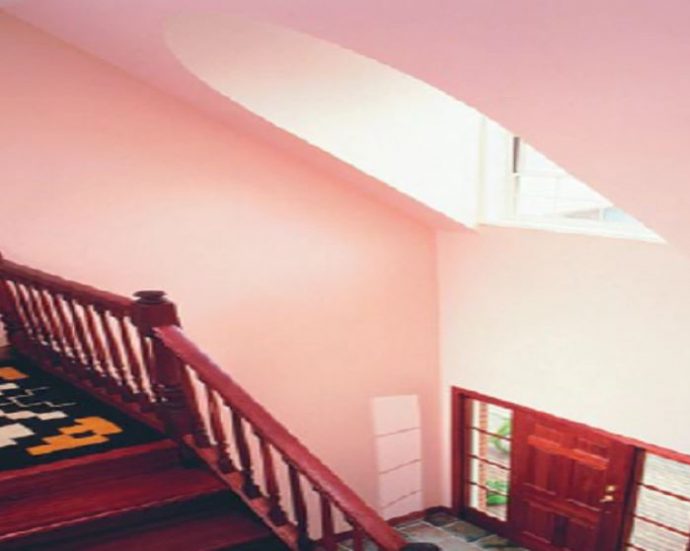

- Interior walls facing sunlight.
Application Example
Installation
