Gypsum Board Material

ProWall

Designed for multi uses such as, sound protecting and fire resistant systems

ProWall is system for interior walls that conform to TIS 863-2532 for the quick and easy installation. It is designed for multi uses such as, sound protecting and fire resistant systems that may require fixing and/or modifying in the future.

Key Documents & Design Files

Previous slide
Next slide

Product Option

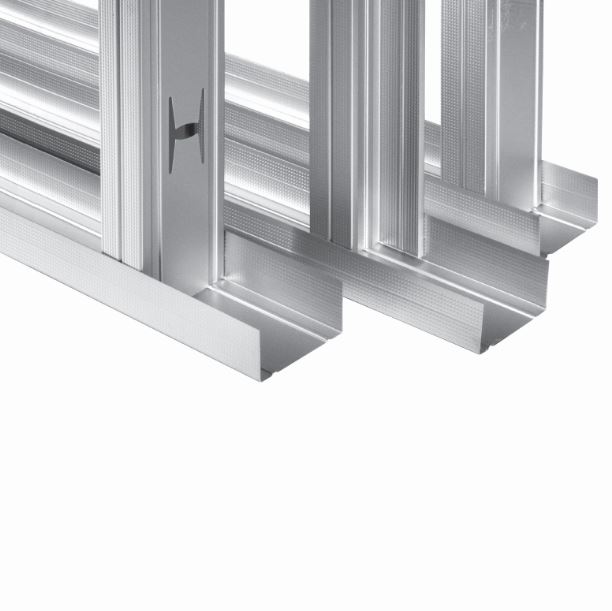

Gypsum Board structure Wall Ceiling Prowall

Product Size & Specification

DescriptionTechnical Information
SizeProWall C stud: 50 x 34(36) x 3000 mm., ProWall U stud 52 x 30 x 3000 mm.

ProWall C stud: 64 x 34(36) x 3000 mm., ProWall U stud 66 x 30 x 3000 mm.

ProWall C stud: 74 x 34(36) x 3000 mm., ProWall U stud 76 x 30 x 3000 mm.

ProWall C stud: 92 x 34(36) x 3000 mm., ProWall U stud 94 x 30 x 3000 mm.
StandardTIS 863-2532 (Thai Industrial Standards).
MaterialHot Dip Galvanized Steel, TIS 50-2548 (Thai Industrial Standards) or JIS G3302.
Thickness0.52 mm.
Zinc coating220 g. / m2

Special Property

Elephant ProWall is system for interior walls that conform to TIS 863-2532 for the quick and easy installation. It is designed for multi uses such as, sound protecting and fire resistant systems that may require fixing and/or modifying in the future.

Gypsum Board Partition Stud

ProWall

Special Properties

Strong and standardized frame

The frame includes a useful distance gauge that indicates the distance every 20 cm., which provides convenience and accuracy for installation.

Quick & Easy

As quick and easy to install

Customized size available

Customized sizes available. Suitable for internal walls.

Standard Certified

Certified TIS (Thai Industrial Standards).

Material consistency

Environmentally friendly and recyclable.

Application Guideline

Suitable for gypsum wall or other wall types.

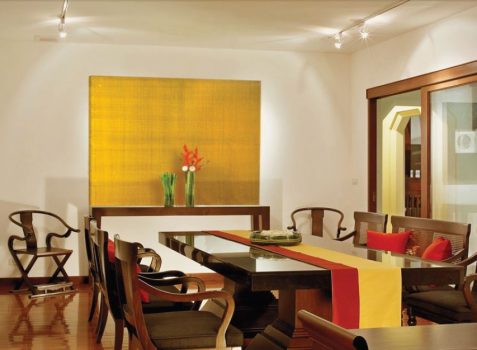

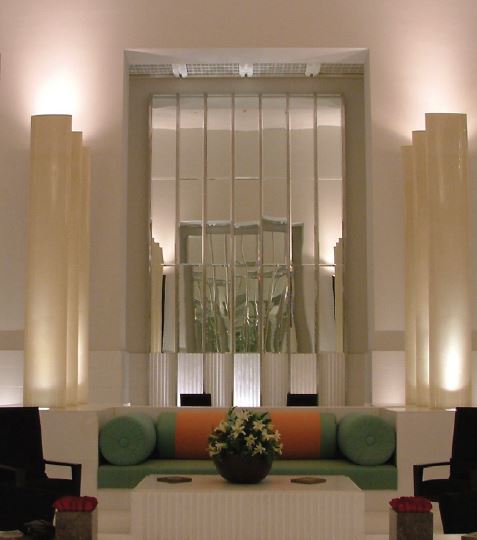

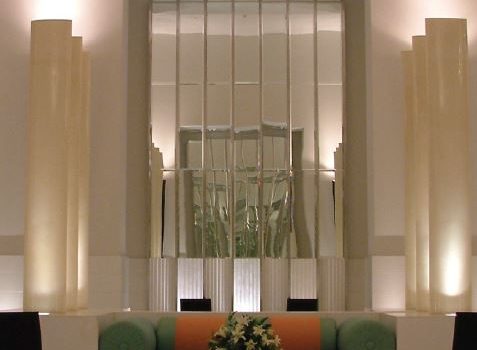

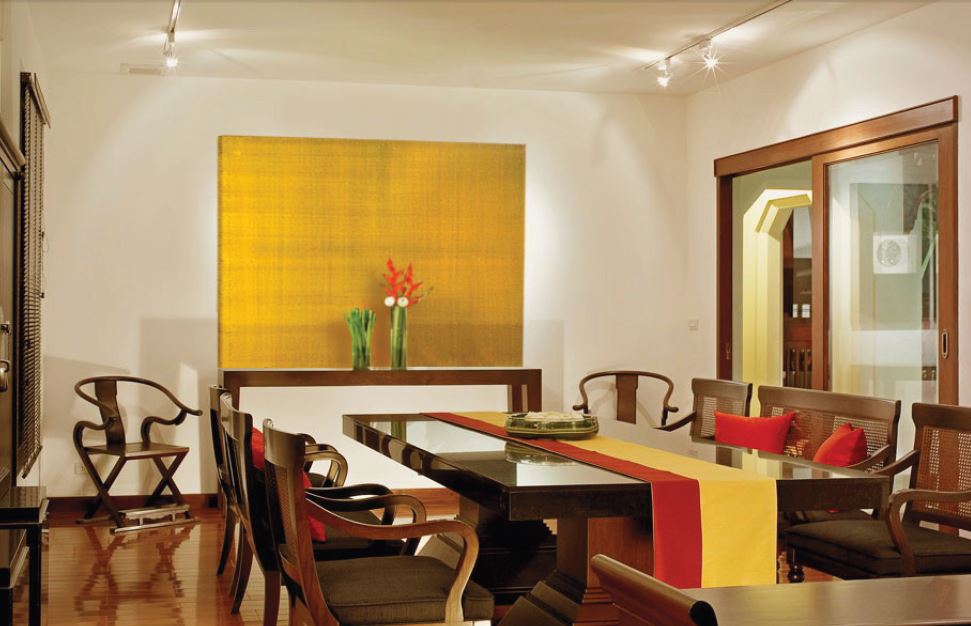

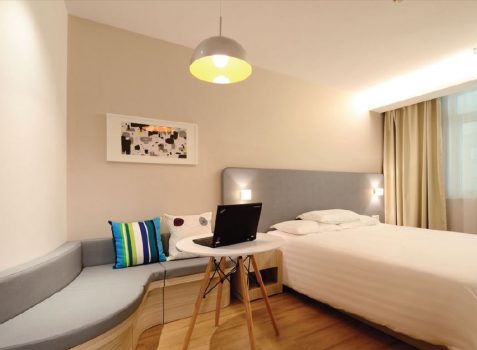

Application Example

Installation
