Q-CON Wall Panel
Q-CON Wall Panel

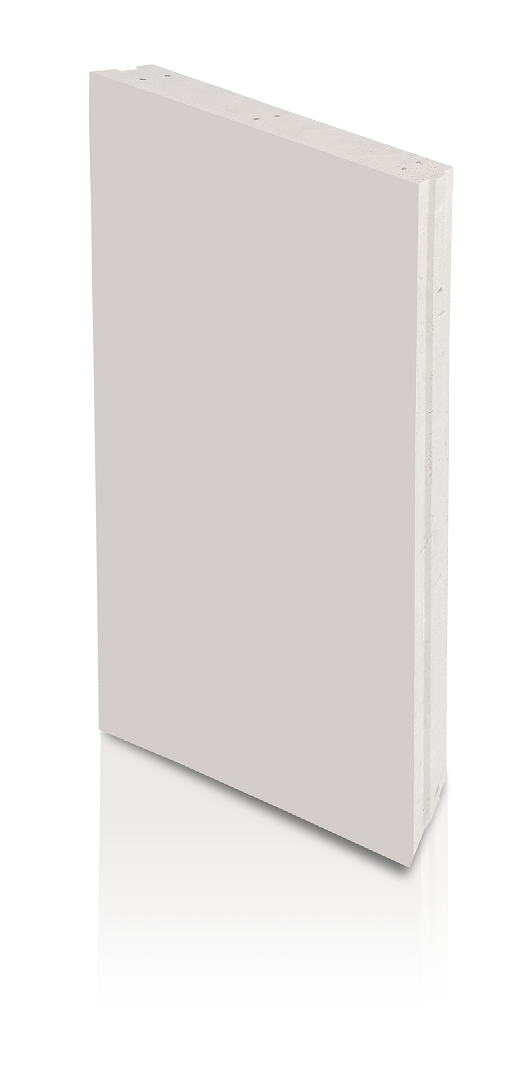

Q-CON Wall Panels are lightweight, steel reinforced, groove & tongue panels that can be easily installed by your normal on-site installers.
- Lightweight and Easy to Work
- Fast Installation and Clean Site
- Thermal, Sound andFire Resistance
- Enviro-Friendly and Energy Saving
Key Documents & Design Files
Previous
Next
Features & Benefits
SUPER SPEED
Faster than brick 4 times and easily installed by groove and tongue panels impact to labor capacity more than 9.71 sq.m./man/day
STRONG & DURABLE
Durability to resist wind and reinforce with preventive corrosion steel. Moreover, Q-CON is No Knocking Sound and can hang 50 kg per point by Expansion fixing.
SAVE BUDGET & EARN MORE
Reduced working time and transportation cost due to Light weight (70 kg/m2). Furthermore, Q-CON is good heat insulation AAC panel (K=0.115 w/mk.) to save Energy as well.
GOOD FIRE RESISTANCE
Excellent Fire resistance as Q-CON is Non- Combustible material and can protect fire for 4 hours.
ENVIRONMENTAL FRIENDLY
Q-CON Wall Panel is environmental friendly material due to Non-toxic that made from natural components and Reduce waste.
Product Option
Product Size
| Size W x L x H (cm.) | Weight Kg./m2 | Packaging Pcs/Pallet |
|---|---|---|
| 60 x 300 x 7.5 | 70 | 10 |
| 60 x 300 x 10 | 100 | 7 |
Special Property
Q-CON Wall Panels are lightweight, steel reinforced, groove & tongue panels that can be easily installed by your normal on-site installers. They are suitable to be used as both external and internal walls.
Q-CON WALL PANEL TECHNOLOGY
Thermal resistance and Energy saving
Reducing the reliance on heating and cooling appliances.
Sound resistance
Reduced sound transmission between rooms and noise penetration from external sources.
Non toxic
Lightweight so Q-CON is easy to move, easy to transport and easy to install.
Easy to use
Lightweight so Q-CON is easy to move, easy to transport and easy to install.
Reduce construction time
60% faster than masonry using semi skilled trades.
Light Weight
Light weight so Q-CON is easy to move, easy to transport and easy to install.
Long Life
Not easy to wear off and durable to all weather conditions.
Precision
An established quality control program allows builders to achieve optimal structural performance.
Less wastage
Q-Con Wall Panel are manufactured in a range of sizes to suit, resulting in less wastage.
Previous
Next
Q CON Special Propety Detail

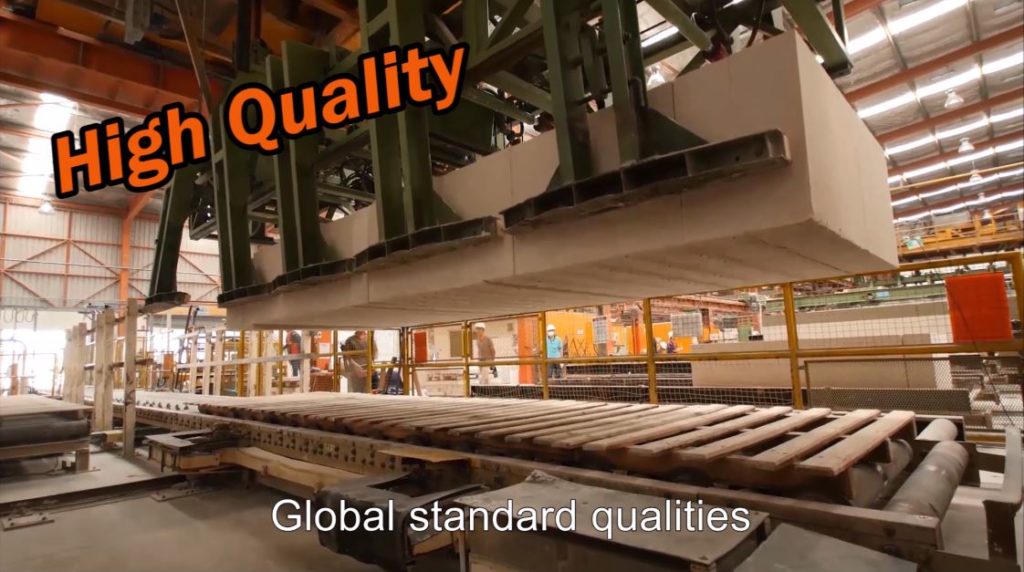

Quality Product Approval
Q-CON Wall Panel Passed BS5234 Standard Guaranteed … Trusted Partition for your project!!!
- Lighter weight up to 2.5 times help to reduce structure load. Q-CON wall panel is 70 kg/sq.m. while brick wall approximate 180 kg./sq.m.
- Constant standard of compressive strength > 40 kg/sq.m. due to controllable production process
- Ensure your safety by excellent fire resistance 4 hours that is longer than brick 2 hours
- 10 times less Thermal Conductivity than brick. Q-CON Wall Panel make you feel cooler when stay at home as less Thermal Conductivity at 0.115 W/mk. compare to normal brick that is at 1.12-1.14 W/mk.

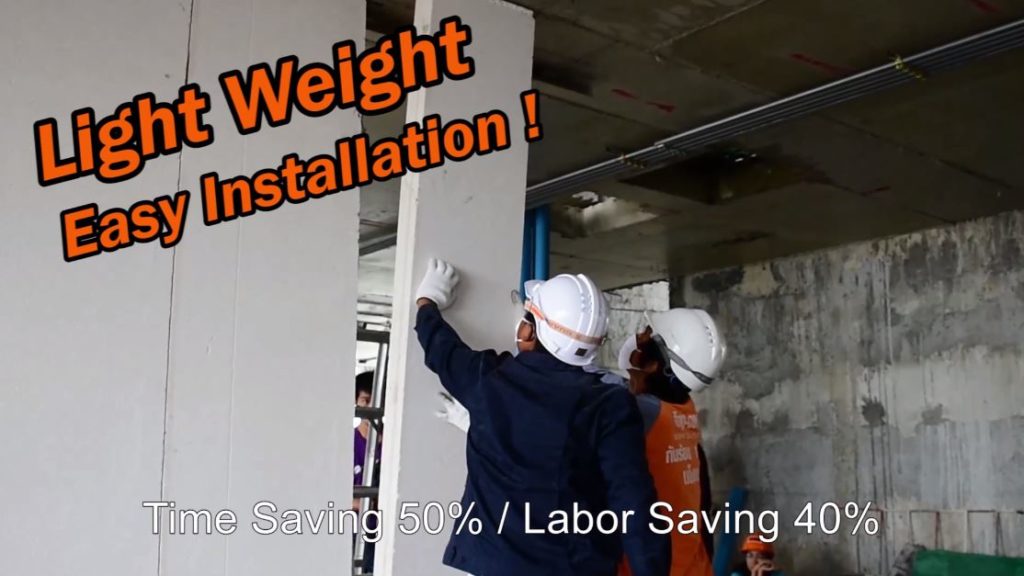

Super Speed Install
Q-CON wall panel can help you to finish job faster than brick & mortar up to 3 times and easily install by groove and tongue panel.
- Â 60% faster than masonry using semi-skilled trades.
- Â Panel is larger sizes than brick and AAC block that bring to fewer joints
- Â Installer capacity is up to 9.71 sq.m./man/day
- Â No require special skill to install

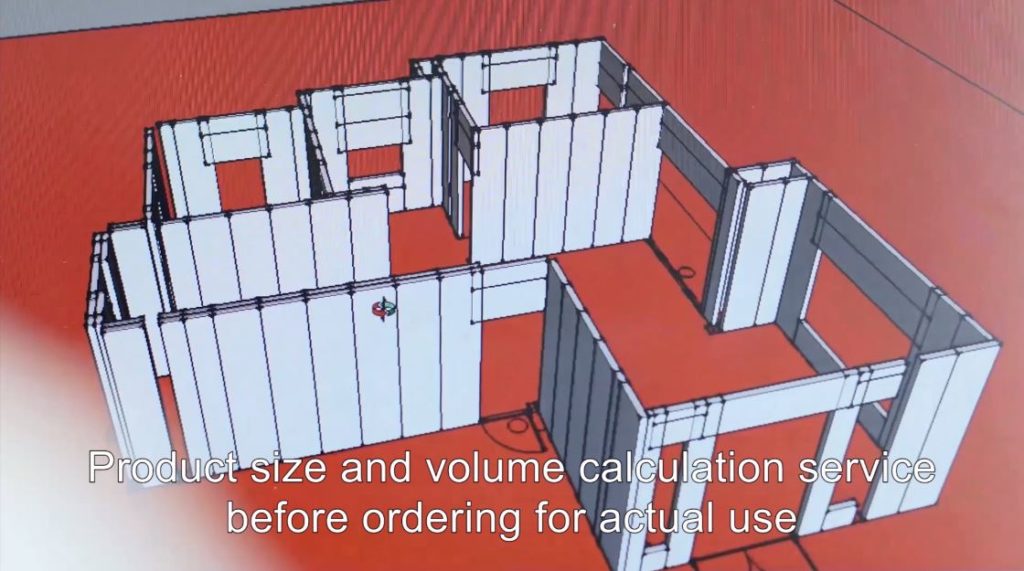

Several sizes to match your wall area
Q-Con Wall Panel is steel reinforced start from 7.5 cm. thickness and available in lengths of 1.50 – 4.0 m. and width of 0.6 – 3.0 m.
Dimension, Weight and Packaging:
W x L x H (cm.)                 Weight                                Packaging
60x300x7.5                         53 kg/sq.m.                       8 Pcs/Pallet
60x300x10                          70 kg/sq.m.                       6 Pcs/Pallet
Strong Wall Panel, do not worry about fragile problem
Preventive corrosion steel reinforce Q-Con Wall Panel too durable so it is difficult cracking even if facing wind load, lifting during construction or hanging heavy stuff.
- No fragile: Specially coated on steel to prevent corrosion and provides maximum durability
- No Knocking Sound: This property is well as same as AAC Block because it was developed from AAC Blocks
- Durability: Wind load resistance and no need special maintenance

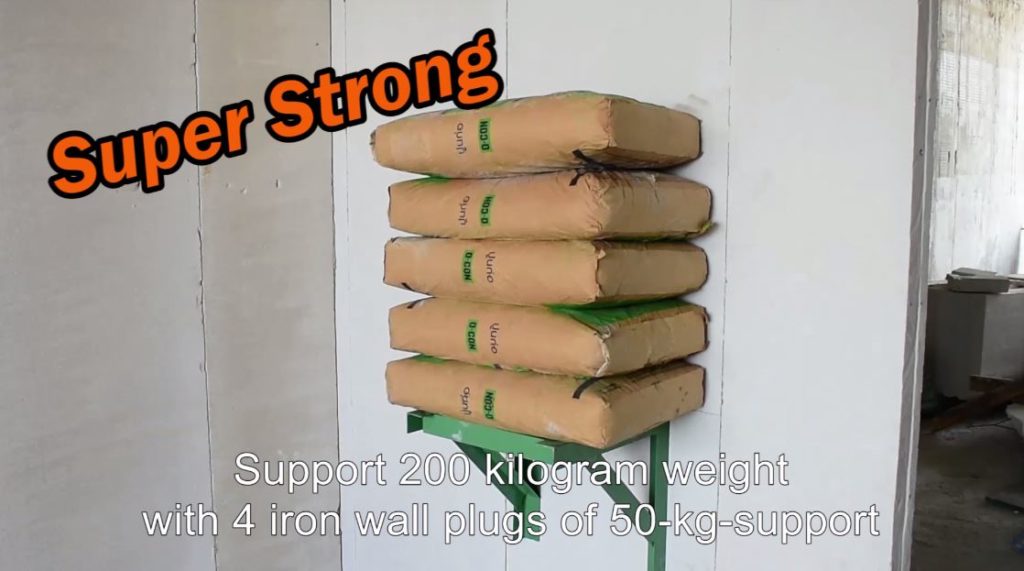

Load Bearing Wall: Support the weight of hanging load 50
Enhance your safety life by selecting fire retardant material
Q-CON Wall Panel is renowned for its highly fire resistant properties, it works as fire resistance insulation as same as AAC block, it can help to protect you better in the case of a fire.
- Fire protection up to 4 hours
- Non- Combustible
- Property of Autoclaved lightweight concrete (ALC)
Save more budget, Get more money
As be an autoclaved lightweight concrete (ALC), Q-Con Wall Panel can save not only budget cost but energy consumption also.
- Reduce working time due to faster install and easy to work
- Deduct transportation cost from Light weight (70 kg/m2), it is approximately 1/4 of the weight of traditional concrete
- Good heat insulation (K=0.115 w/mk.) like ALC Block that reducing the reliance on heating and cooling appliances
Environmental friendly product
Q-Con Wall Panel are manufactured in a range of sizes to suit, resulting in less wastage. Moreover, it made from completely natural materials which is not pollution causes.
- Made from Non-toxic components.
- Less mess on-site and less clean-up at completion of construction
Installation Guideline
Play Video
Easy install by your normal on-site installers … Everyone can do!
Pre-Installation
1. Check sizes and quantities of Q con wall panel.
2. Check layout and construction drawing.
3. Check tools and equipment.
Installation Steps
1. Clean and Mark the wall alignment. Clean the floor and ceiling without dust or dirt before making the line by the chalk tape.
2. Clean Q-Con Wall Panel and move to the marked point.
3. Mix thin-bed mortar and apply it on structure. Apply mix thin bed mortar on column structure for increase adhesion between the Q-con wall panel and the structure.
4. Lift the wall panel and push it to attach the column.
5. Insert a foam sheet between floor and top of the panel.Foam sheets prevent wall cracking from slab defection effect.
6. Use lever to lift Q-con wall panel until top of the panel reach the upper floor then insert a wood wedge under the panel.
7. Use steel angle to fasten the panel with floors on both upper and lower side of the panel by using steel plugs and screws.
8. Apply thin-bed mortar on side of the first panel then lift the next wall panel to attach and do the same as the previous steps.
9. Continue install wall panels until the gap can be closed by the last panel.
10. Measure the gap and cut the last panel to fit in then install it in place.
11. Fill the gap under the panels with sand-cement mortar for fill the gap under wall panel.

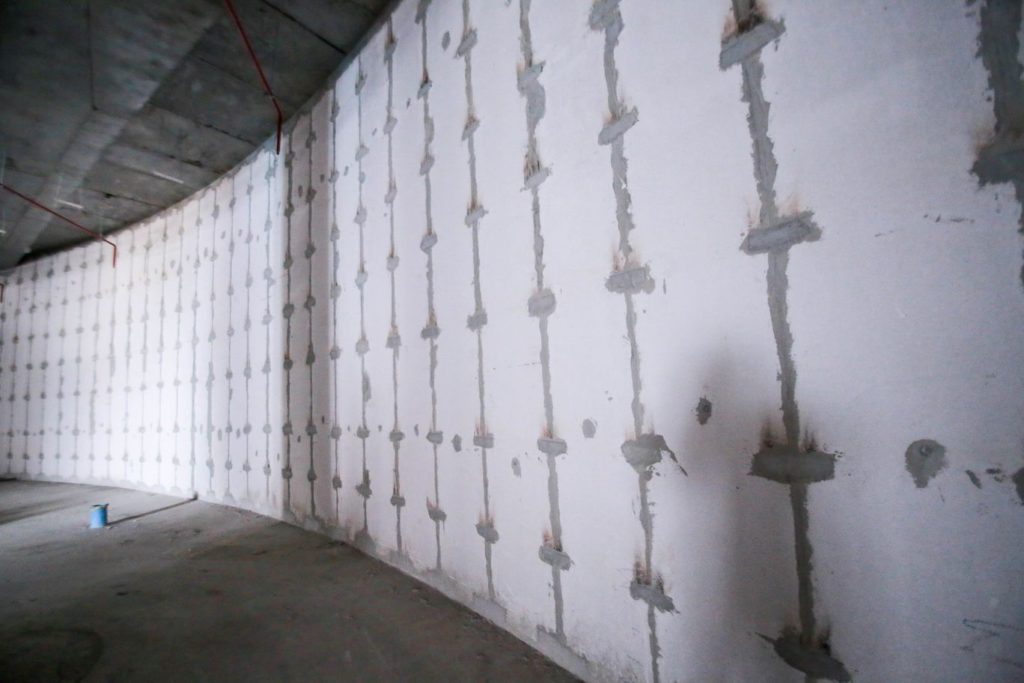

12. Fill all gaps between each panel with thin-bed mortar, wait until the mortar dry then rub with sandpaper #400.
13. Finishing all gaps again with skim coat then rub with sandpaper #200.
14. Finish Q-con wall panel installation. Can finish the surface with painting or as required.
Application Guideline
- Living Room
- Commercial/Department Store
- Office
- High Rise Building
- Hotel
- Factory
- Warehouse
- Green Building
Case Study
Previous
Next

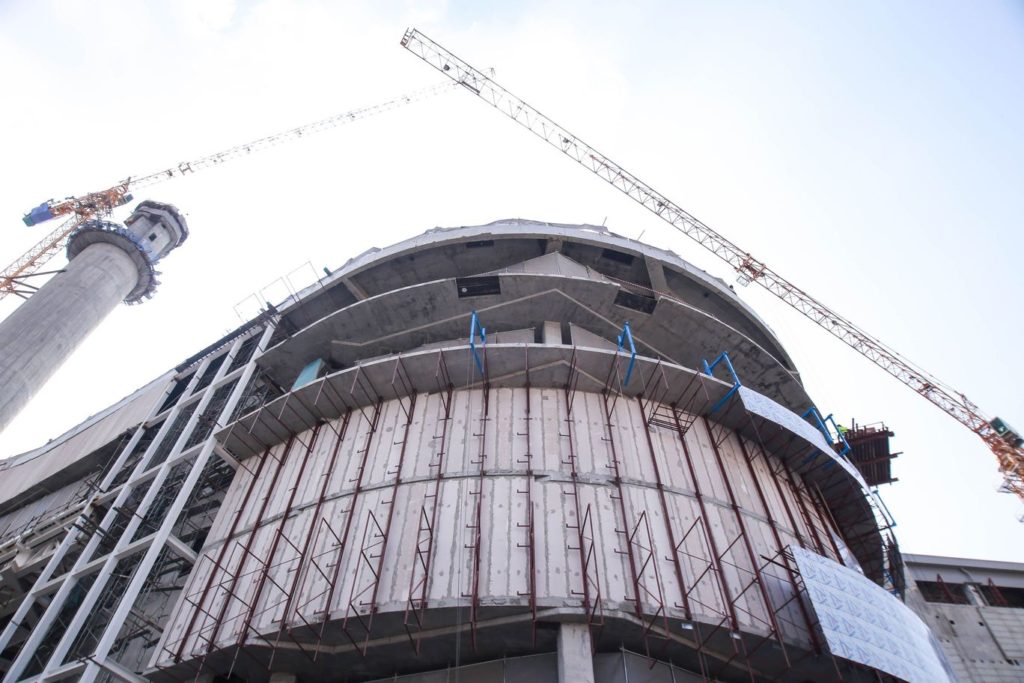

CENTRAL PATTANA PUBLIC COMPANY LIMITED
THE LARGEST RETAIL PROPERTY DEVELOPMENT COMPANY IN THAILAND
Central Pattana Public Company Limited or CPN who is owner and operate many shopping centers under three brands; centralwOrld, CentralPlaza, and CentralFestival, office building, hotel, residential and condominium project.
It is pleasure of SCG to be a partner who get the trustiness from CPN to support wall application solution like Q-CON Wall Panel to many shopping centers such as centralwOrld, CentralPlaza Chaengwattana, CentralPlaza Lardprao and CentralPlaza Chonburi.
The outstanding property that make the leader company in Thailand confident in Q-CON Wall Panel is super speed install. Q-CON installation is faster than brick and mortar 4 times
- 60% faster than masonry using semi-skilled trades.
- Panel is larger sizes than brick and AAC block that bring to fewer joints
- It is easily installed by groove and tongue panels
CPN gets several benefits from using Q-CON not only saving time but other hidden advantages also.
- Cost saving by faster finished project: Labor cost and project management such as equipment rental, space rental, waste disposal expense, etc.
- Materials saving from lighter weight: Lighter superstructure (beam column), smaller footing and pile saving
- Energy saving as Q-CON is less thermal conductivity: Electricity bill from air conditioner expense
- Better financial performance due to faster finished project: Less total loan interest expense to bank, increase income because of early running business
Reference Site
Noppakao Warehouse
Thailand
Lazio Condominium
Thailand
Terminal 21 Korat
Thailand
Siam Paragon
Thailand
The Win
Thailand
The Cube 2 Condominium
Thailand
The Room Condominium
Thailand
The Diamond Condominium
Thailand
The Cube Condominium
Thailand
Miami Project
Thailand
Zensation Condominium
Thailand
Jakpaisal Residential
Thailand
Singha Factory
Thailand
Ratdawan
Thailand
The Modular House
Thailand
Specification & Standard
| Product Property | Wall Panel | Standard |
|---|---|---|
| Dry Density | 550-650 Kg/m3 | IS – 2185 (Part III) |
| Working Density | 600-700 Kg/m3 | |
| Wind Load | 50-180 Kg/m2 | |
| Compressive Strength | >4 N/mm2 | IS2185(partIII) |
| Water Absorption | <33% | by mass |
| Fire Rating | Up to 4 hr | 100mm. thickness wall panel / BS476 Part 20 and 22 :1987 |
| Thermal Conductivity (k) | 0.115 W/mk | |
| Sound Insulation (STC) | 38 - 43 dB | |
| Reinforce steel tensile strength | > 500 N/mm2 | |
| Weight | 70 kg/m2 | 100 mm thickness wall panel |
