Fiber Cement Board
SCG Fiber Cement Board
High impact strength, lasting durability and easy installation fiber cement board.
SCG SmartBOARD is fiber cement board that most suitable choice for external and internal wall & parttion, especially in the construction of housing extened, renovated area, and office & commercial
Key Documents & Design Files
Previous slide
Next slide
Product Option
Product Size
| Application | Series | Thickness (mm.) | Width x Length (mm.) | Installation System | Weight (kg./pc.) | Effective Area (sq.m./pc.) |
|---|---|---|---|---|---|---|

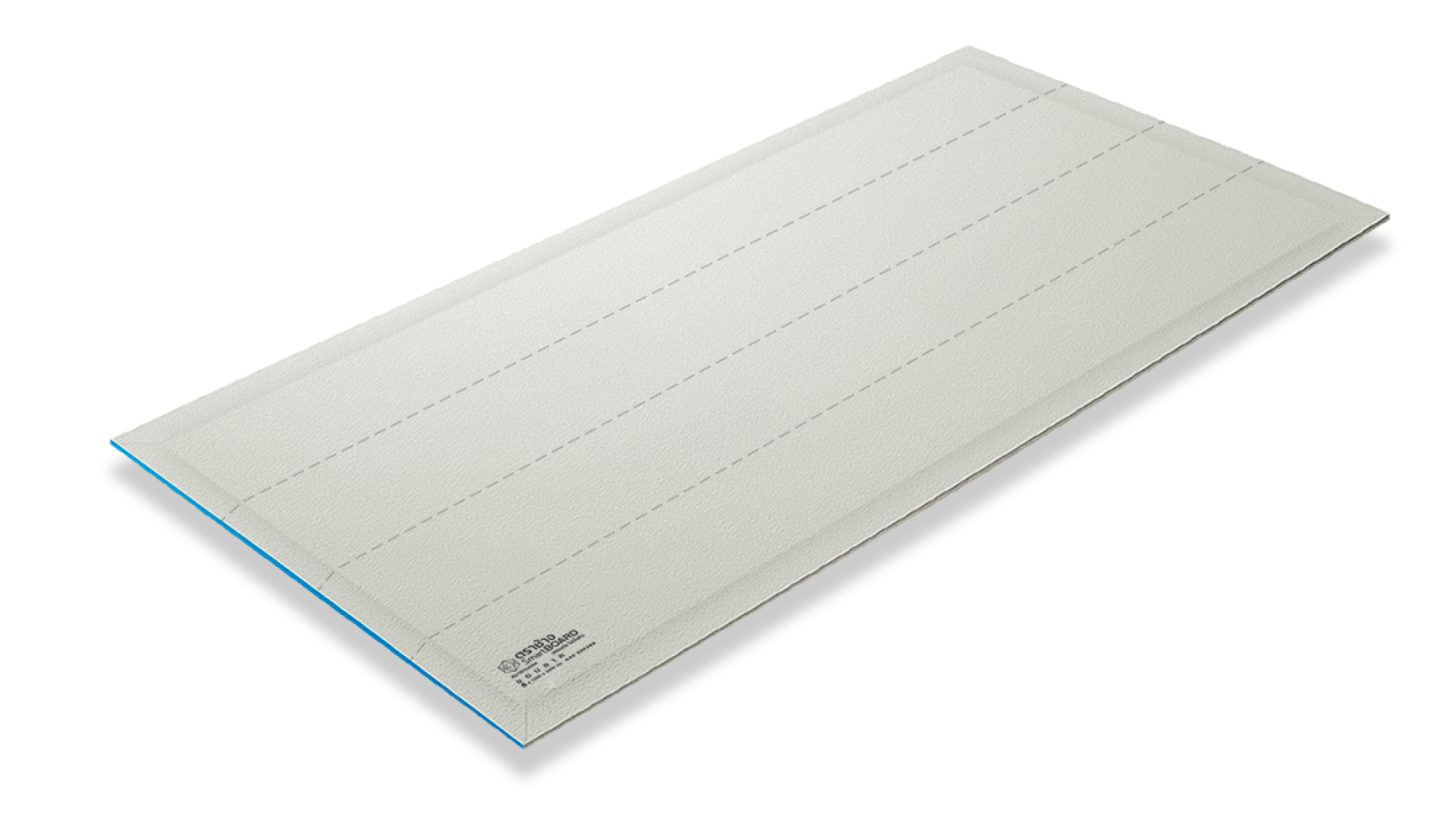

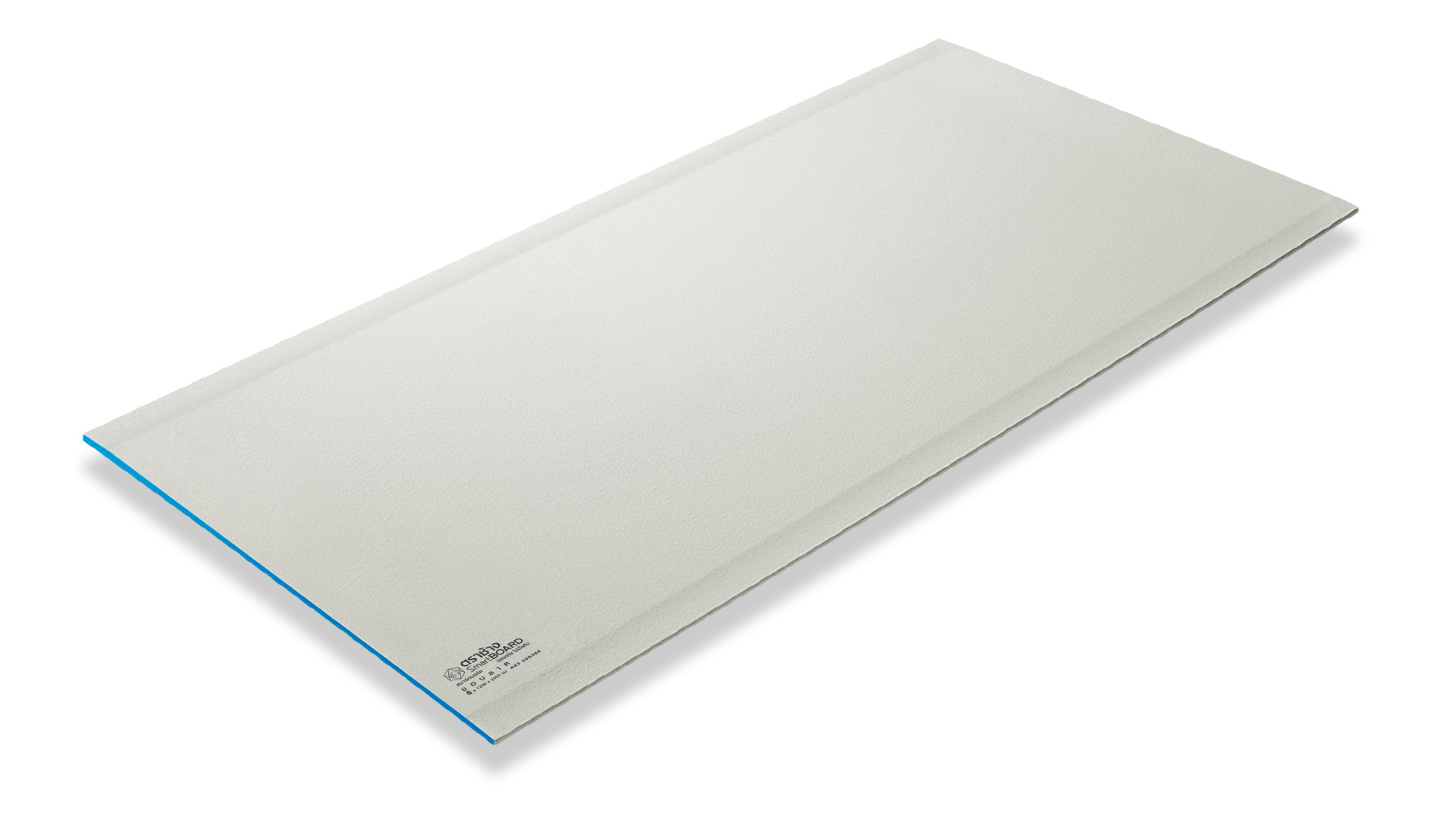

| Internal and External Wall | 2-Side Tappered Edge | 8 | 1200 x 2800 | Concealed | 40.2 | 3.36 |
| 2-Side Tappered Edge | 12 | 1220 x 2440 (4'x8') | Concealed | 53.6 | 2.97 | |

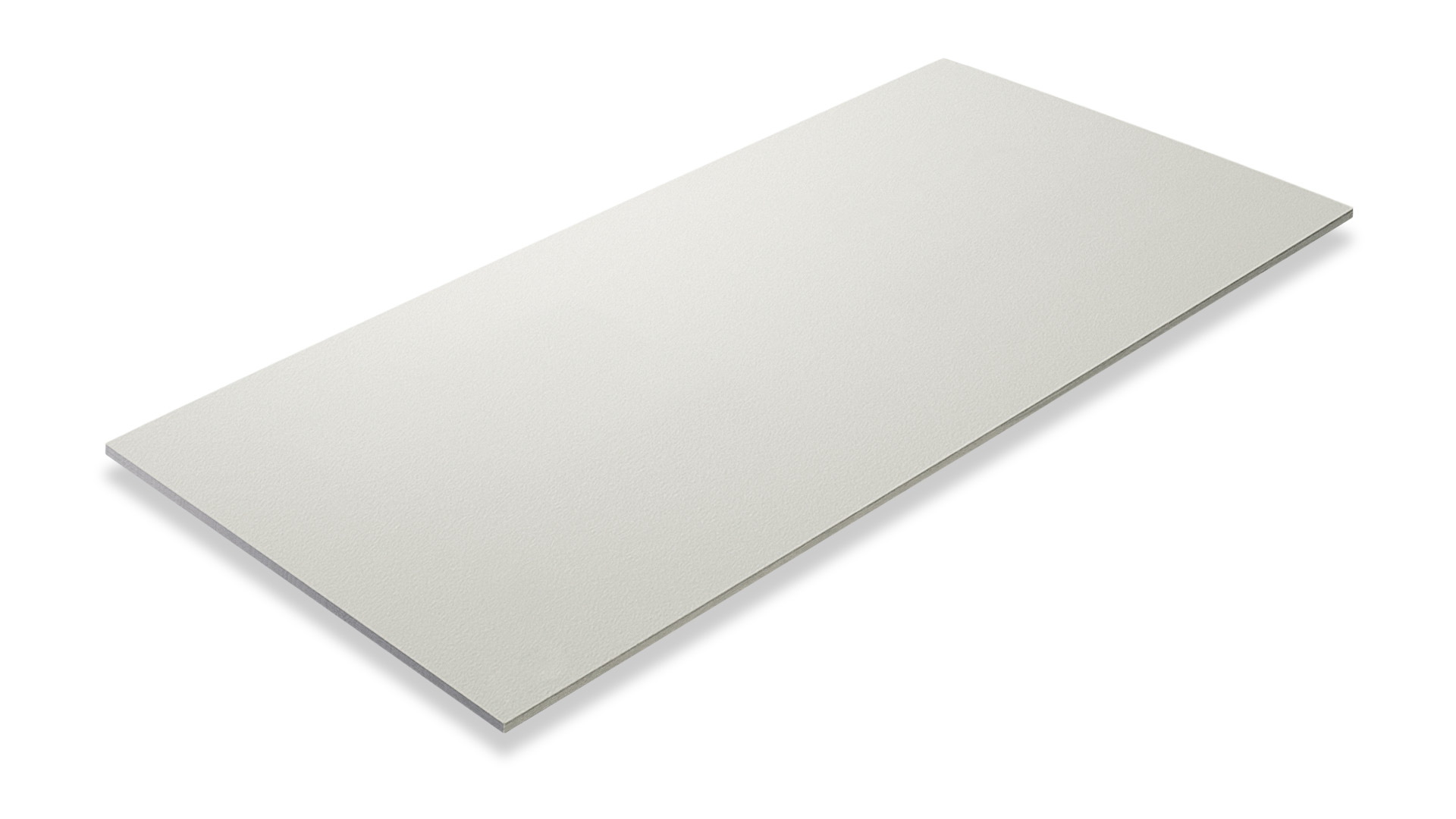

| Squared Edge | 8 | 1200 x 2400 1200 x 2800 1220 x 2440 (4'x8') | Space Lining | 34.8 40.6 36 | 2.88 3.36 2.97 |
|
| Squared Edge | 9 | 1200 x 2400 1220 x 2440 (4'x8') | Space Lining | 39.2 40.4 | 2.88 2.97 |
|
| Squared Edge | 10 | 1200 x 2400 1220 x 2440 (4'x8') | Space Lining | 43.5 44.9 | 2.88 2.97 |
|
| Squared Edge | 12 | 1200 x 2400 1220 x 2440 (4'x8') | Space Lining | 52.2 53.9 | 2.88 2.97 |
|

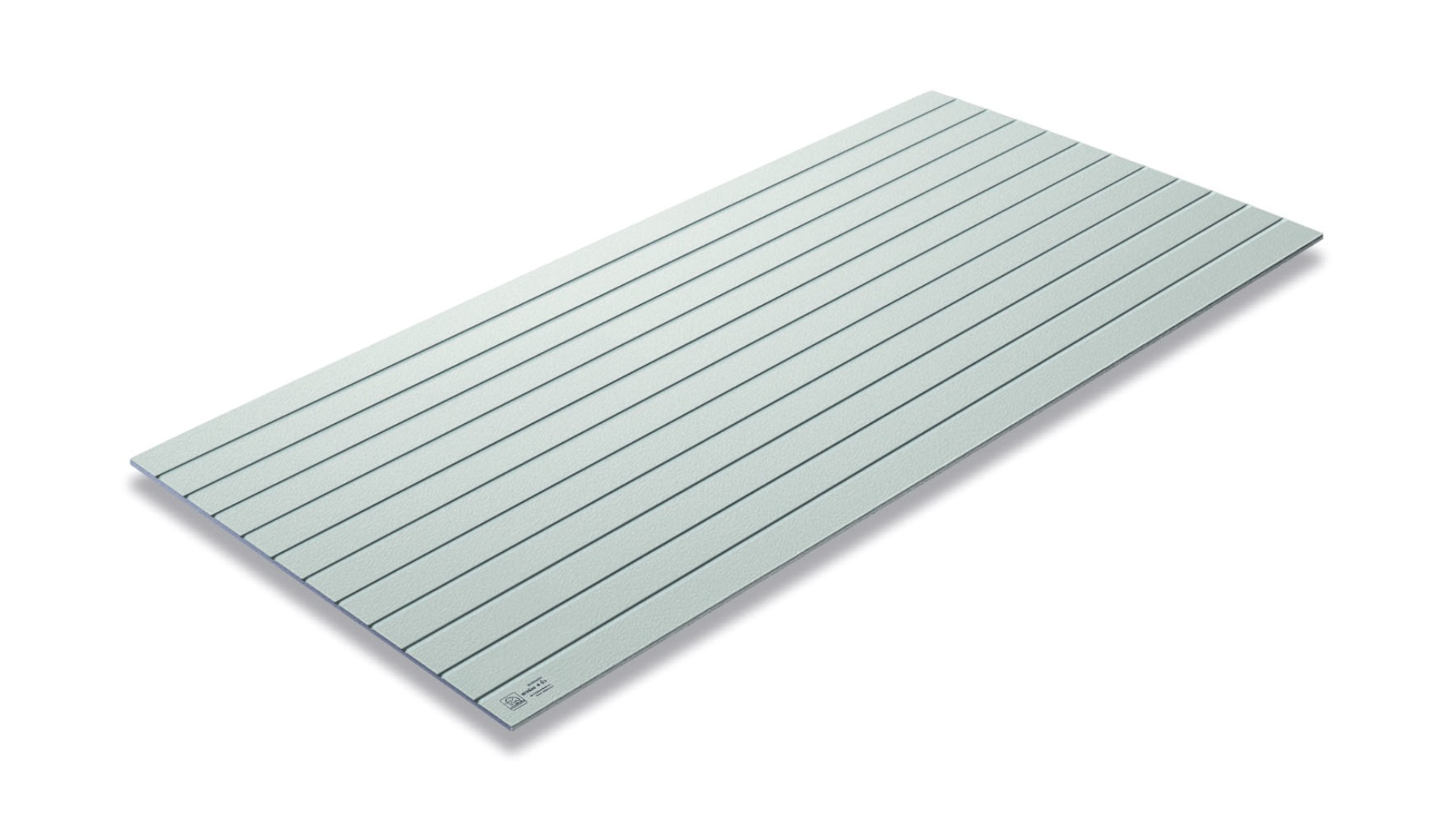

| 4 - Inch Square Lining | 8 | 1200 x 2800 | Space Lining | 40 | 3.36 | |
| 6 - Inch Square Lining Wood Grain (Golden Teak Color) | 6 | 600 x 3000 | Space Lining | 16 | 1.80 | |
| 6 - Inch Square Lining Wood Grain (Golden Teak Color) | 8 | 600 x 3000 | No Space Lining | 21.5 | 1.80 |
Special Property

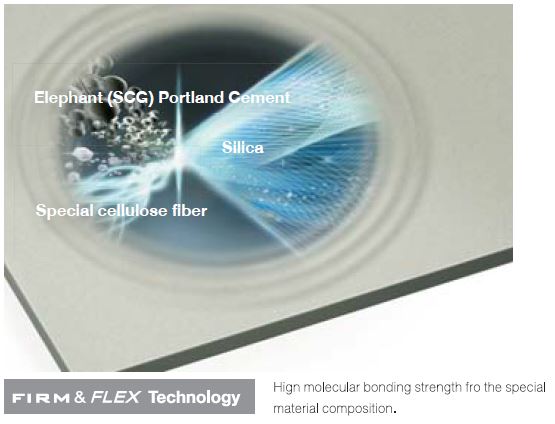

SCG Smartboard is a new generation of fiber cement board material with FIRM and FLEX Technology made the board gain strength, durability and elasticity in one time. SCG Smartboard ( fiber cement board), with state-of-the-art composition of SCG Portland Cement, Silica, and Special cellulose fiber through Autoclave process, is specially designed for various ceiling, wall, and flooring applications both internal and external usage.
FIRM & FLEX TECHNOLOGY
FIRM special Properties
High Impact Strength
Composition of SCG Portland Cement, Silica and Special cellulose fiber developed by our laboratory
Water - Resistance
Long lasting even using in hot, humid, and strong raining weather condition according to JIS Standard A5420
Termite Resistant
Termite resistant from Portland cement material.
FLEX special Properties
Flexibility for various designs
SCG Smartboard provide flexibility for various designs to meet your specification.
Light Weight, Fast and Easy to Install
With only 30 kg. per sq.m. It can install easier and faster than conventional system.
Better Heat Resistance
SCG Smartboard can prevent heat from external environtment. Reducing energy consumption and answering green designs.
Application Guideline
- Living Room
- Office
- High Rise Building
- Hotel
- Factory
- Green Building

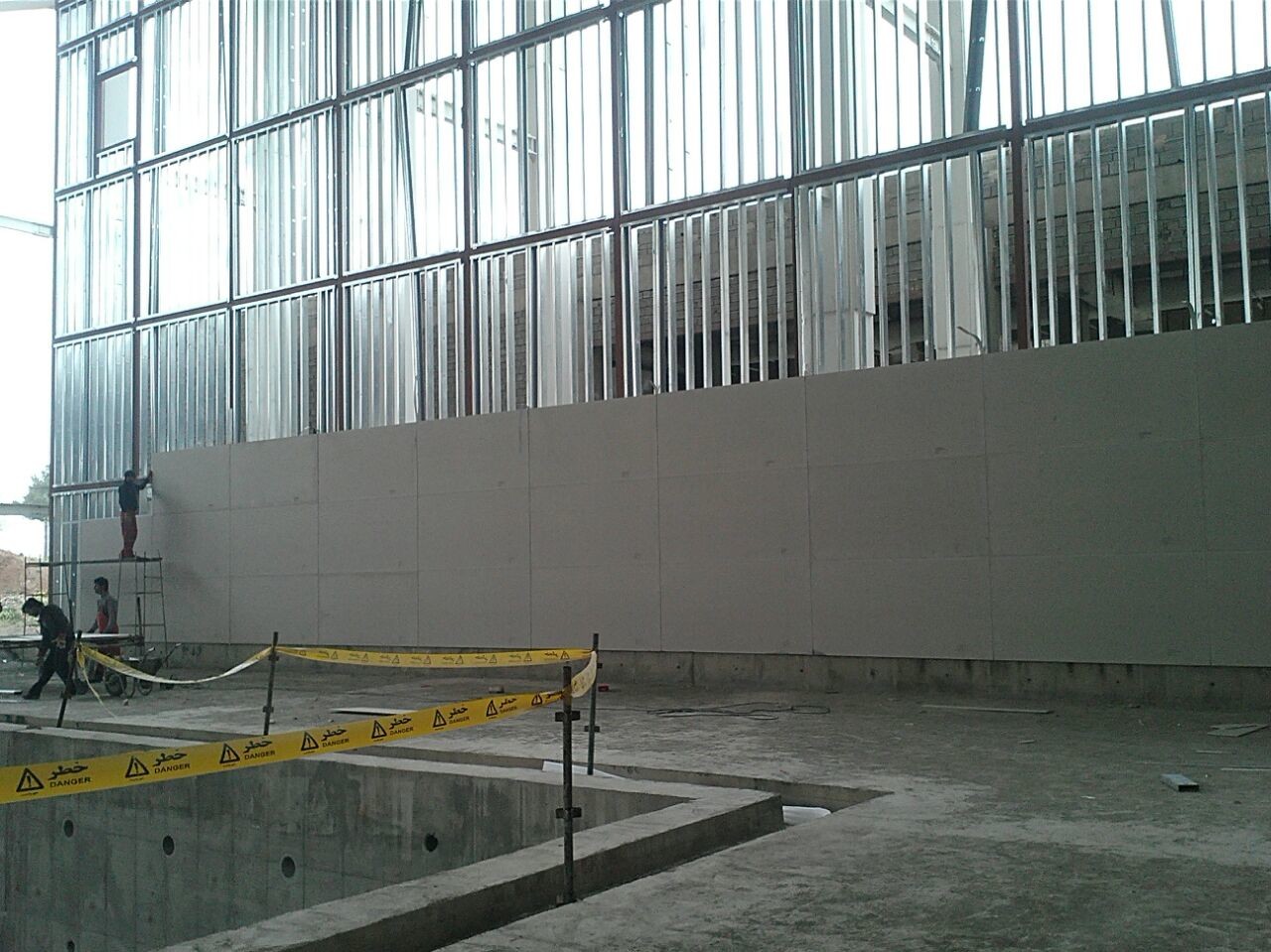

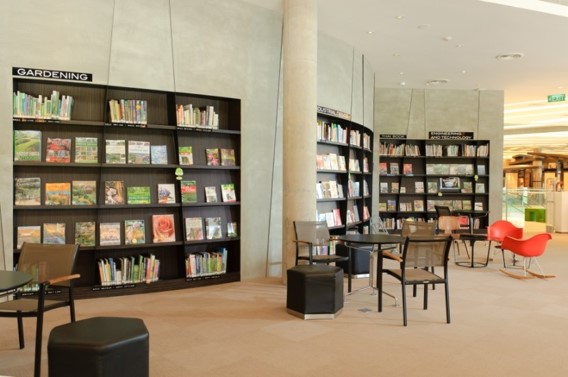

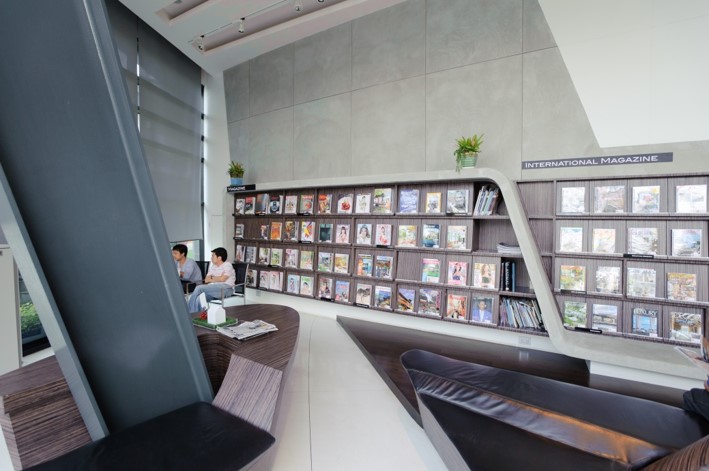

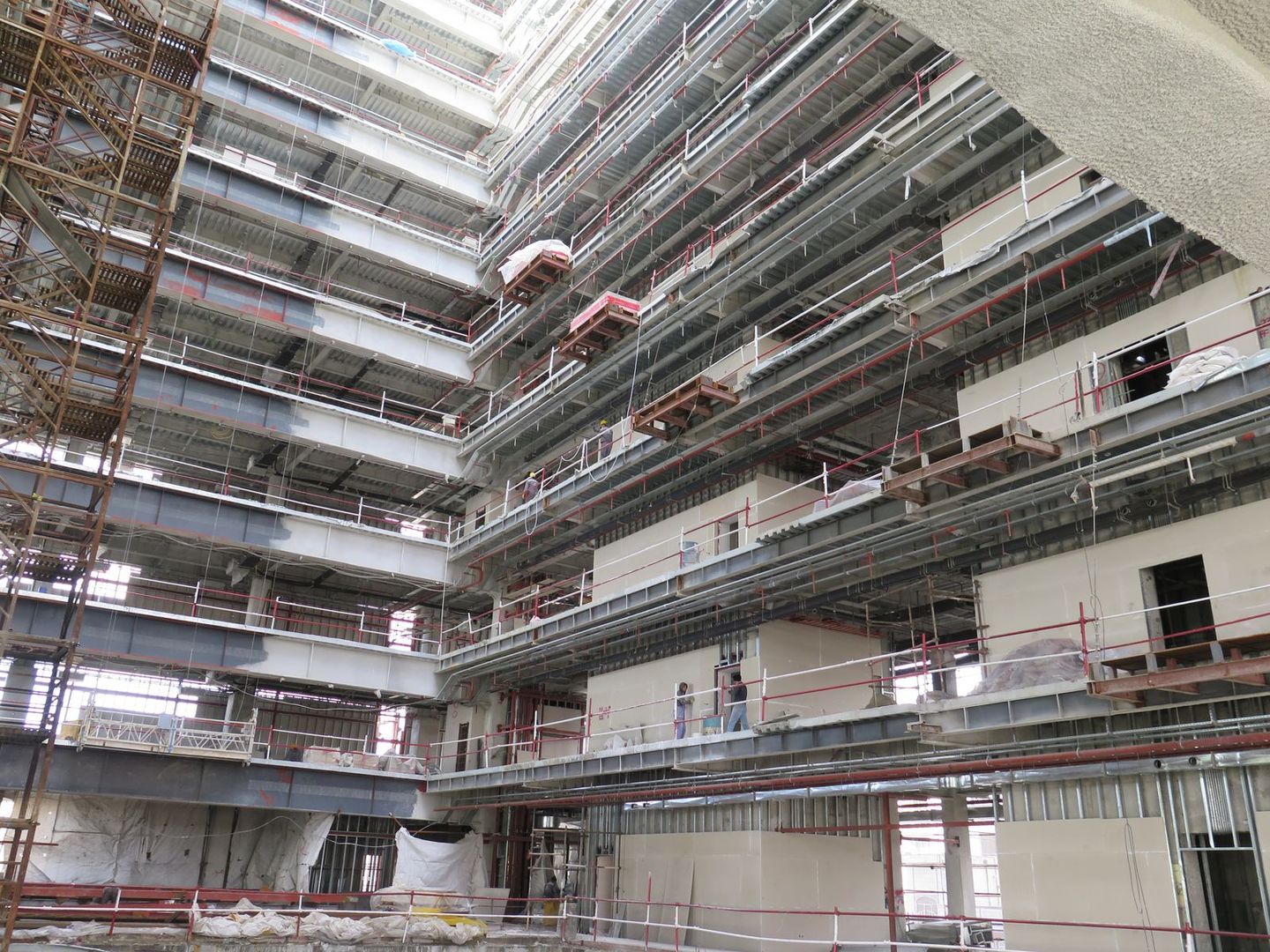

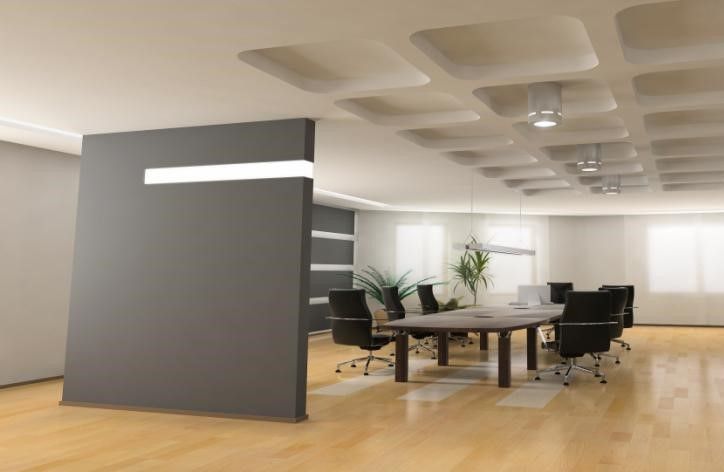

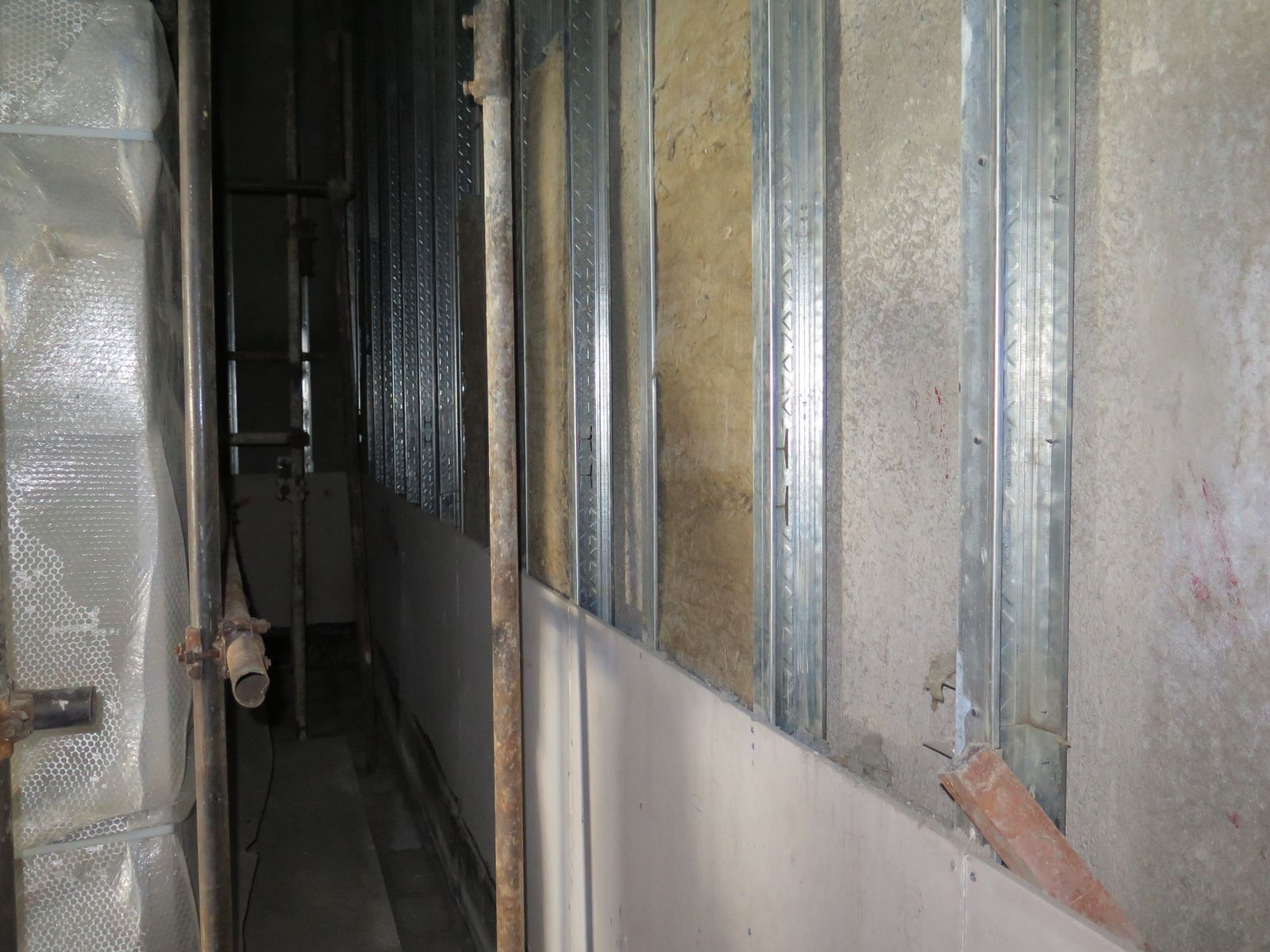

Application Example
Specification & Standard
| Attributes | Test Value | Standard |
|---|---|---|
| Water Expansion Rate (24 hrs. soak) | 0.12% | JIS A5420 |
| Density | 1,260 Kg./M3 | ASTM C1185 |
| Resistant to leakage (24 hrs. water contain) | Pass | TIS 1427 - 2540 |
| Water Absoption Rate | 34% | - |
| Tension force perpendicular to the surface | 1.9 MPa | JIS A 5905 |
| Modulus of Rapture (Wet Test) | 10 N/Sq.mm. | ASTM C1185 |
| Heat Conductivity Rate (K) | 0.084 W/Mc | ASTM C117 |
| Sound Resistance (STC) | 38 dB | BS 2750 |
| Non Flamable, Non combustible | Pass | BS 476 Part 5,6 and 7 |
| System Flamce Resistant | 1 and 2 hrs. | BS 476 Part 20-22 |
| Drying Shrinkage rate (60c, 24 hrs.) | 0.04% | - |
| Modulus of Elasticity | 4,500 N/Sq.mm. | ASTM C 1185 |
| Bending Radius (4, 6, 8, 10 mm.) | 1.0, 1.5, 2.0, 4.0 M. | - |

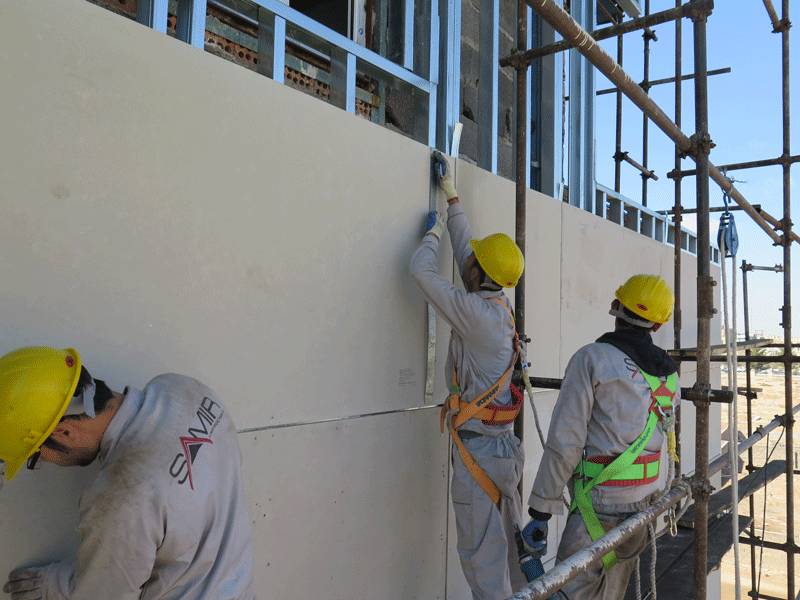

Installation
